MoticEasyScan Two N

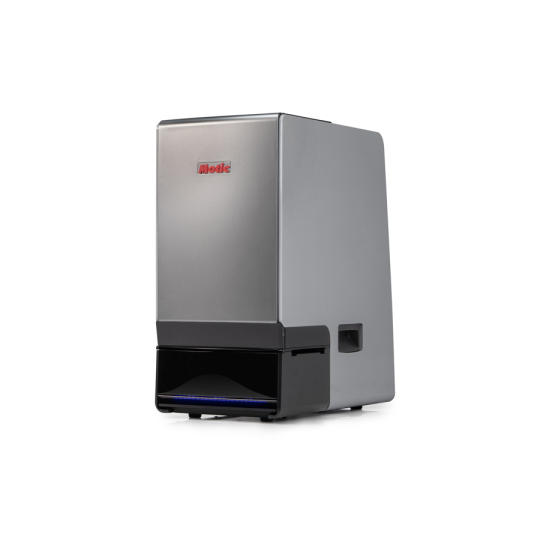

The MoticEasyScan Lite Two N is a next-generation desktop scanner for whole slide imaging (WSI), featuring dual-slide capacity and a powerful 12MP sensor for sharper, more detailed scans. With significantly faster scanning times and a larger sensor than the Lite One, the Two N is ideal for labs and institutions ready to scale their digital pathology workflows. It supports... View More
Product code
1100400500951
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | MoticEasyScan Two N |
|---|---|
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Sensor type | CMOS |
| Sensor size | 1.1" |
| Capture resolution info | 12MP |
| Resolution | 20X: 0.52µm/pixel, 40X: 0.26µm/pixel, 80X: 0.13µm/pixel |
| Estimated scanning time | 20X with 10X objective: 40s, 40X with 20X objective: 100s, 80X with 40X objective: 360s (*) |
| Scan mode | Standard (Real-time autofocus), High precision (High precision autofocus), EDF (Extended depth of field), Z-stack (Three dimensional stacking) |
| Scanning formats | MDS, SVS, JPEG, DICOM, TIFF |
| Data transfer | USB 3.0 |
| Nosepiece | Triple |
| Objective classification | CCIS® Plan Apochromatic, DIN |
| Objectives | Plan S-Apochromatic 10X/0.3, Plan Apochromatic 20X/0.75, Plan S-Apochromatic 40X/0.75 |
| Slide capacity | 2 |
| Slide tray | 2-slide Smart tray system |
| Slide dimension | 76x26mm |
| Focus mechanism | Real-time autofocus |
| Transmitted illumination | LED 10W |
| Minimum computer requirements | Intel Core i7-10700/16GB RAM memory, 1TB storage, Windows 10 Pro 64-bit or superior, USB 3.0 Port |
| Software | DSAssistant, EasyScanner |
| Barcode support | 1D: Interleaved 2 of 5, Code 39, Code 128 - 2D: Data Matrix, QR Code |
| Computer | Not included |
| Power supply | 100-240V |
| Accessories included | Dust protection cover, calibration slide, USB cable, power cable, USB pen drive (software pack included), USB dongle license, screwdriver, 2 metal slide tray units |
| Dimensions LxWxH | 205x398x420 mm |
| Weight Net | 12.6Kg |
| Notes | (*) Average scanning time based on 15x15 mm area in standard scanning mode. |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Model | MoticEasyScan Two N |
|---|---|
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Sensor type | CMOS |
| Sensor size | 1.1" |
| Capture resolution info | 12MP |
| Resolution | 20X: 0.52µm/pixel, 40X: 0.26µm/pixel, 80X: 0.13µm/pixel |
| Estimated scanning time | 20X with 10X objective: 40s, 40X with 20X objective: 100s, 80X with 40X objective: 360s (*) |
| Scan mode | Standard (Real-time autofocus), High precision (High precision autofocus), EDF (Extended depth of field), Z-stack (Three dimensional stacking) |
| Scanning formats | MDS, SVS, JPEG, DICOM, TIFF |
| Data transfer | USB 3.0 |
| Nosepiece | Triple |
| Objective classification | CCIS® Plan Apochromatic, DIN |
| Objectives | Plan S-Apochromatic 10X/0.3, Plan Apochromatic 20X/0.75, Plan S-Apochromatic 40X/0.75 |
| Slide capacity | 2 |
| Slide tray | 2-slide Smart tray system |
| Slide dimension | 76x26mm |
| Focus mechanism | Real-time autofocus |
| Transmitted illumination | LED 10W |
| Minimum computer requirements | Intel Core i7-10700/16GB RAM memory, 1TB storage, Windows 10 Pro 64-bit or superior, USB 3.0 Port |
| Software | DSAssistant, EasyScanner |
| Barcode support | 1D: Interleaved 2 of 5, Code 39, Code 128 - 2D: Data Matrix, QR Code |
| Computer | Not included |
| Power supply | 100-240V |
| Accessories included | Dust protection cover, calibration slide, USB cable, power cable, USB pen drive (software pack included), USB dongle license, screwdriver, 2 metal slide tray units |
| Dimensions LxWxH | 205x398x420 mm |
| Weight Net | 12.6Kg |
| Notes | (*) Average scanning time based on 15x15 mm area in standard scanning mode. |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
>
