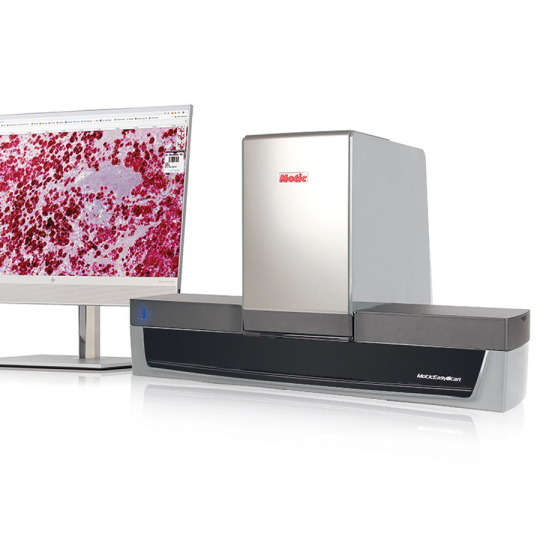

MoticEasyScan Pro 24 N
The MoticEasyScan Pro 24 N is a high-performance desktop scanner built for labs that need fast, high-throughput whole slide imaging (WSI). With capacity for 24 slides and a fast 12MP sensor, it’s ideal for diagnostics, research, and telepathology in small to medium-volume environments. Featuring advanced scan modes, including Z-stack and extended depth of field (EDF), and... View More
Product code
1100300500310
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | MoticEasyScan Pro 24 N |
|---|---|
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Sensor type | CMOS |
| Sensor size | 1.1" |
| Capture resolution info | 12MP |
| Resolution | 20X: 0.52µm/pixel, 40X: 0.26µm/pixel, 80X: 0.13µm/pixel |
| Estimated scanning time | 20X with 10X objective: 40s, 40X with 20X objective: 100s, 80X with 40X objective: 360s (*) |
| Scan mode | Standard (Real-time autofocus), High precision (High precision autofocus), EDF (Extended depth of field), Z-stack (Three dimensional stacking) |
| Scanning formats | MDS, SVS, JPEG, DICOM, TIFF |
| Data transfer | USB 3.0 |
| Nosepiece | Triple |
| Objective classification | CCIS® Plan Apochromatic, DIN |
| Slide capacity | 24 |
| Slide tray | 6-slide Smart tray system |
| Slide dimension | 76x26mm |
| Focus mechanism | Real-time autofocus |
| Transmitted illumination | LED 10W |
| Software | DSAssistant, EasyScanner |
| Barcode support | 1D: Interleaved 2 of 5, Code 39, Code 128 - 2D: Data Matrix, QR Code |
| Computer | All-in-One PC, Intel Core i7-10700/32GB RAM memory, 256GB SSD + 1TB storage, wireless keyboard and mouse, Windows 10 Pro 64-bit (**) |
| Monitor | 27" Touchscreen QHD resolution |
| Power supply | 100-240V |
| Accessories included | Dust protection cover, calibration slide, USB cable, power cable, USB pen drive (software pack included), USB dongle license, screwdriver, 8 slide tray units |
| Dimensions LxWxH | 700x398x420 mm |
| Weight Net | 21.6Kg |
| Notes | (*) Average scanning time based on 15x15 mm area in standard scanning mode using Brightfield technique. (**) The computer configuration may change in accordance with the technical progress, without notice and without obligation |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Model | MoticEasyScan Pro 24 N |
|---|---|
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Sensor type | CMOS |
| Sensor size | 1.1" |
| Capture resolution info | 12MP |
| Resolution | 20X: 0.52µm/pixel, 40X: 0.26µm/pixel, 80X: 0.13µm/pixel |
| Estimated scanning time | 20X with 10X objective: 40s, 40X with 20X objective: 100s, 80X with 40X objective: 360s (*) |
| Scan mode | Standard (Real-time autofocus), High precision (High precision autofocus), EDF (Extended depth of field), Z-stack (Three dimensional stacking) |
| Scanning formats | MDS, SVS, JPEG, DICOM, TIFF |
| Data transfer | USB 3.0 |
| Nosepiece | Triple |
| Objective classification | CCIS® Plan Apochromatic, DIN |
| Slide capacity | 24 |
| Slide tray | 6-slide Smart tray system |
| Slide dimension | 76x26mm |
| Focus mechanism | Real-time autofocus |
| Transmitted illumination | LED 10W |
| Software | DSAssistant, EasyScanner |
| Barcode support | 1D: Interleaved 2 of 5, Code 39, Code 128 - 2D: Data Matrix, QR Code |
| Computer | All-in-One PC, Intel Core i7-10700/32GB RAM memory, 256GB SSD + 1TB storage, wireless keyboard and mouse, Windows 10 Pro 64-bit (**) |
| Monitor | 27" Touchscreen QHD resolution |
| Power supply | 100-240V |
| Accessories included | Dust protection cover, calibration slide, USB cable, power cable, USB pen drive (software pack included), USB dongle license, screwdriver, 8 slide tray units |
| Dimensions LxWxH | 700x398x420 mm |
| Weight Net | 21.6Kg |
| Notes | (*) Average scanning time based on 15x15 mm area in standard scanning mode using Brightfield technique. (**) The computer configuration may change in accordance with the technical progress, without notice and without obligation |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
>
