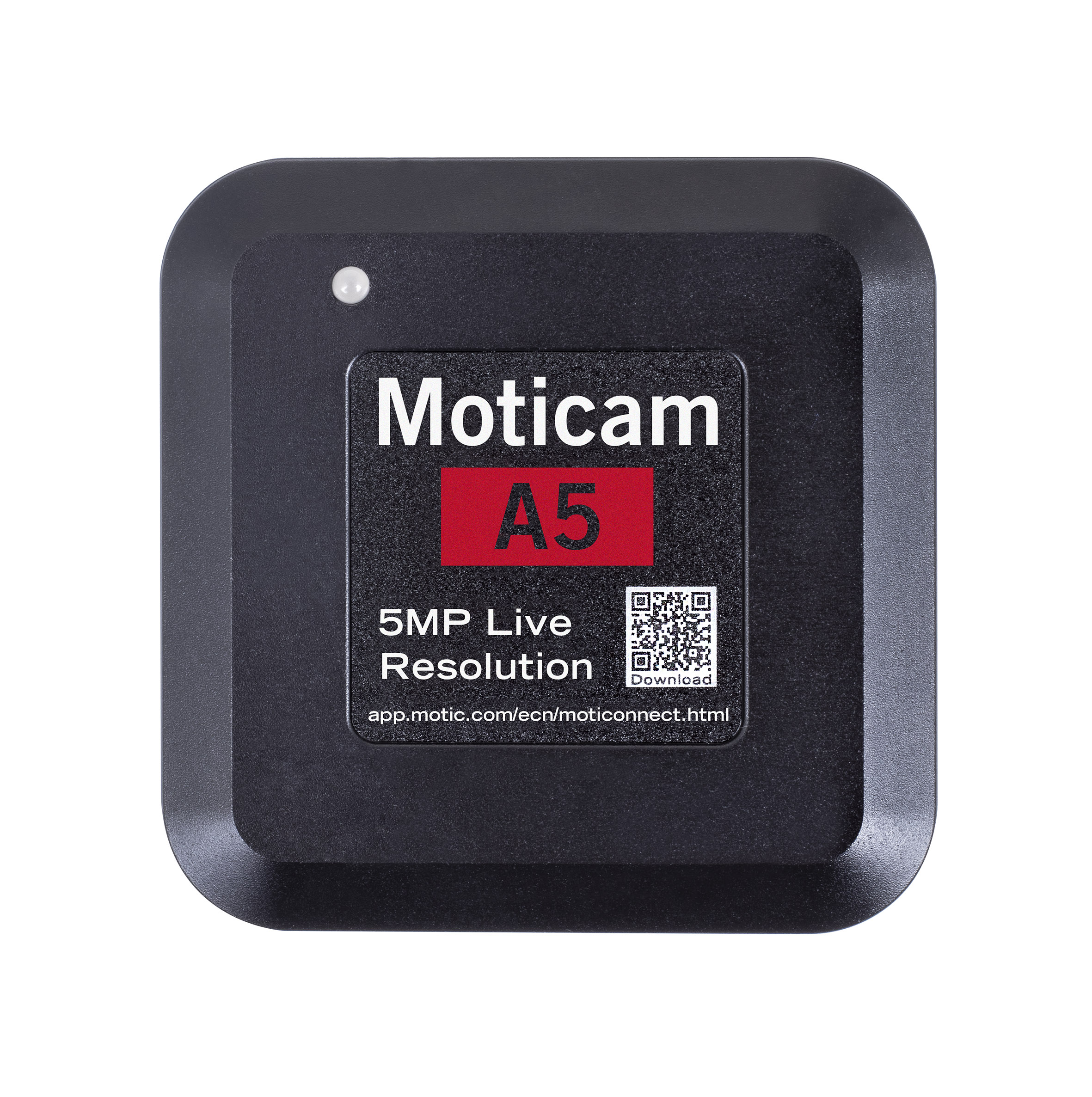

Moticam A5
| Model | Moticam A5 |
|---|---|
| Sensor Type | sCMOS |
| Sensor Size | 1/2.8" |
| Imaging Area | 6.52mm (Diagonal) |
| Capture Resolution Info | 5MP |
| Live display mode through USB | 2592x1944, 2048x1536, 1920x1080 pixels |
| Pixel size | 2x2μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Data transfer | USB 2.0 |
| Max. frames per second (fps) | 2592x1944 @ 30fps, 2048x1536 @ 30fps, 1920x1080 @ 30fps (*) |
| Operating temperature | From -10 to +60 Degrees Celsius non condensing |
| Sensitivity | >2000mV |
| Support device | TWAIN, SDK and Direct Show Driver |
| Supported OS | Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher |
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB |
| Lens mount | C-Mount |
| Focusable lens | 12mm |
| Software | MotiConnect for Windows/OSX/Linux (Download only) |
| Functions | Still image and video capture, still image measurement, image adjustments, automatic and manual white balance, automatic and manual exposure, individual objective calibration system. |
| Power supply | 5V (USB supply) |
| Package includes | CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, Motic 4-dot calibration slide, macro tube, Calibration card |
| Other features | (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. |
Moticam A Series Launch | by Motic Europe
Welcome to the next generation of Moticams! Immerse yourself in a world of discovery: whether you are a microscope beginner, a teacher, or an experienced scientist, we always have your back by offering you our new range of Moticam A. Investigate and analyze your images through the user-friendly MotiConnect software and get ready to be mindblown with the Alphas of Moticams!
MotiConnect App for computers - First steps | by Motic Europe
Here's how to get started with our free MotiConnect App for computers. You'll learn how to download and install the app, select your device for the first time, and a general overview of the main tools and features of this fantastic microscopy app.
Moticam A Series microscopy camera Unboxing | by Motic Europe
Wondering what's inside the box of the Moticam A series microscopy camera? In this unboxing video, we reveal what accessories are included and why we call this the “All-in-one box” concept.
Motic Images Plus 3.0 - First Steps tutorial | by Motic Europe
From software installation up to making professional measurements, we guide you step by step through getting a great live image, applying image adjustments to see the microscope's image as wished or the most closely to eyepiece observation, and capturing an image or video.
Motic Images Plus 3.0 - Calibration tutorial | by Motic Europe
Learn how to calibrate Motic Image Plus 3.0 software, a must in professional environments where exact scale and measurements are a daily need. Easy to follow step-by-step explanation with tips & tricks to perform it accurately. This tutorial is also valid for the 3.1 version of the software.
Moticams: Let´s talk about them! | Motic Chats | by Motic Europe
Today we will talk about Moticams: what are they, how to use them and how to pimp up standard microscopes!
