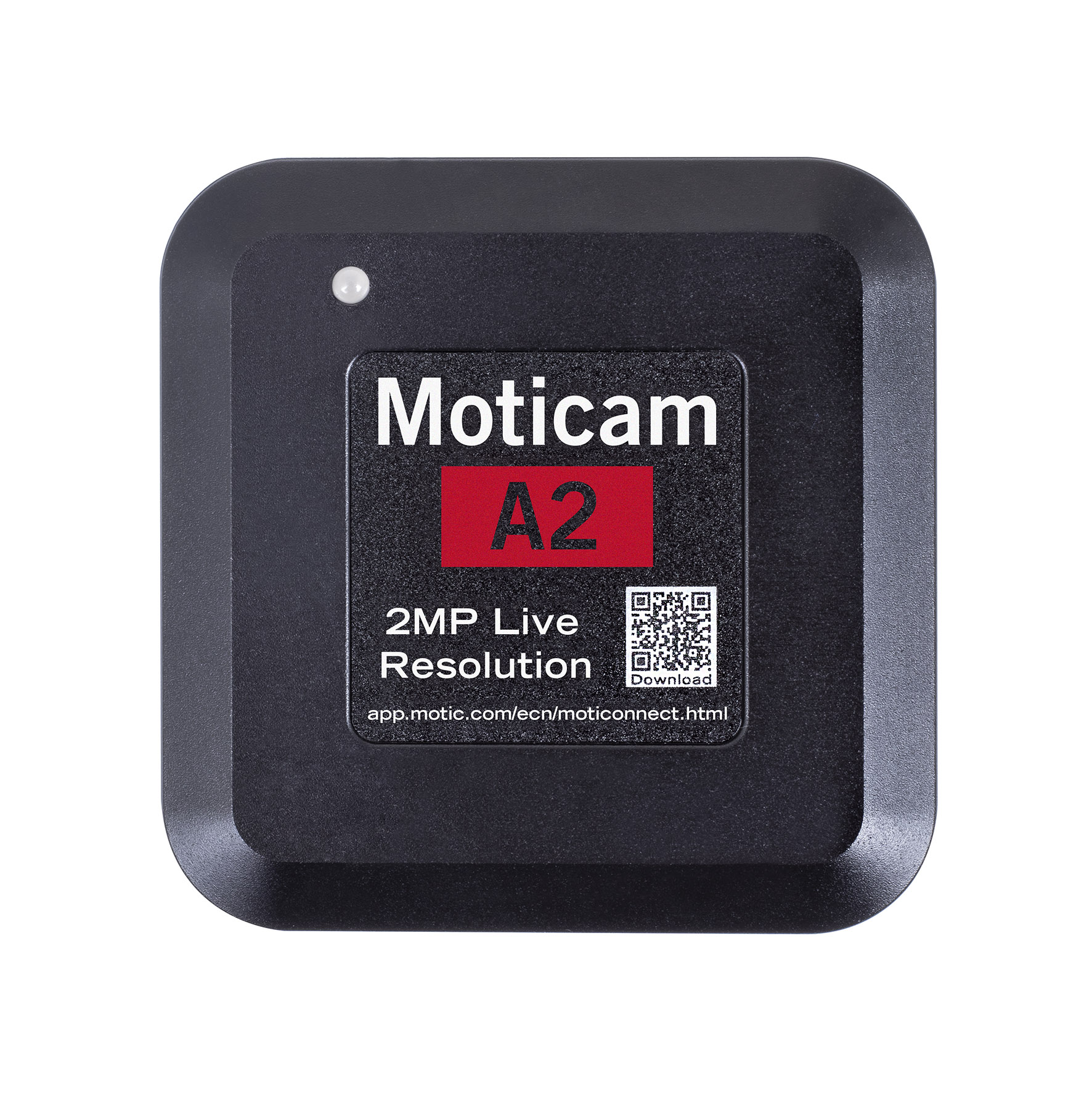

Moticam A2
Model | Moticam A2 |
---|---|
Sensor Type | sCMOS |
Sensor Size | 1/3.1" |
Imaging Area | 5.95mm (Diagonal) |
Capture Resolution Info | 2MP |
Live display mode through USB | 1280x720,1024x768 pixels |
Pixel size | 2.7x2.7μm |
Scan mode | Progressive |
Shutter mode | Rolling Shutter |
Data transfer | USB 2.0 |
Max. frames per second (fps) | 1920x1080 @ 30 fps, 1280x720 @ 30 fps (*) |
Operating temperature | From -10 to +60 Degrees Celsius non condensing |
Sensitivity | >2000mV |
Support device | TWAIN, SDK and Direct Show Driver |
Supported OS | Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher |
Minimum computer requirements | 2GHz dualcore - RAM memory 2GB |
Lens mount | C-Mount |
Focusable lens | 12mm |
Software | MotiConnect for Windows/OSX/Linux (Download only) |
Functions | Still image and video capture, still image measurement, image adjustments, automatic and manual white balance, automatic and manual exposure, individual objective calibration system. |
Power supply | 5V (USB supply) |
Package includes | CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, Motic 4-dot calibration slide, macro tube, Calibration card |
Other features | (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. |
