BA310MET Series > Know more about this Series

BA310 MET Trinocular

Upright trinocular microscope for advanced work in material sciences. Flat metal surfaces and opaque materials from industry can be examined by the new CCIS© LM Plan Achromat objectives. Lab technicians, but also teachers are enabled to work on reflective, non-covered specimens from industrial quality control and technical schools. The camera port allows the adaption of... View More
Product code
1100100402042
Availability: Out of stock
3,248.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Specifications
Model BA310 MET Trinocular
Observation tube Trinocular head, Siedentopf type, 360º swiveling
Optical system Colour Corrected Infinity Optical System (CCIS®)
Inclination 30º inclined
Trinocular light split 100:0/20:80
Interpupillary distance 48-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Nosepiece Reversed quintuple
Objective classification CCIS® EC Plan Achromatic, DIN
Objectives 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright
Stage Mechanical stage, hard coated with built-in low position coaxial stage control
Stage size 180x140mm
Travel range X&Y 75x50mm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 30mm
Upper limit stop Upper limit stop preset but adjustable
Incident illumination Quartz halogen 12V/50W with integrated field and aperture diaphragms
Illumination interchangeability Quartz halogen 12V/50W or LED 3W
Illumination features External lamp house for Epi-illuminator
Transformer External
Power supply 100-240V (CE)
Accessories included Dust cover, power cord, Allen key
Dimensions LxWxH 508x240x465mm
Weight Net 12.7kg
Contrast techniques
Standard contrast technique Brightfield
Polarization Optional sliders

Catalogues

  • Industry - Catalogue File size: --
  • BA310 MET - Catalogue File size: 3.92 MB
    Language: English
  • BA310 MET Trinocular - DETAIL5 - IMG File size: 1.24 MB
    Language: --

Specification sheets

  • BA310 MET Trinocular - SpecSheet File size: 218.62 KB
    Language: English

Images

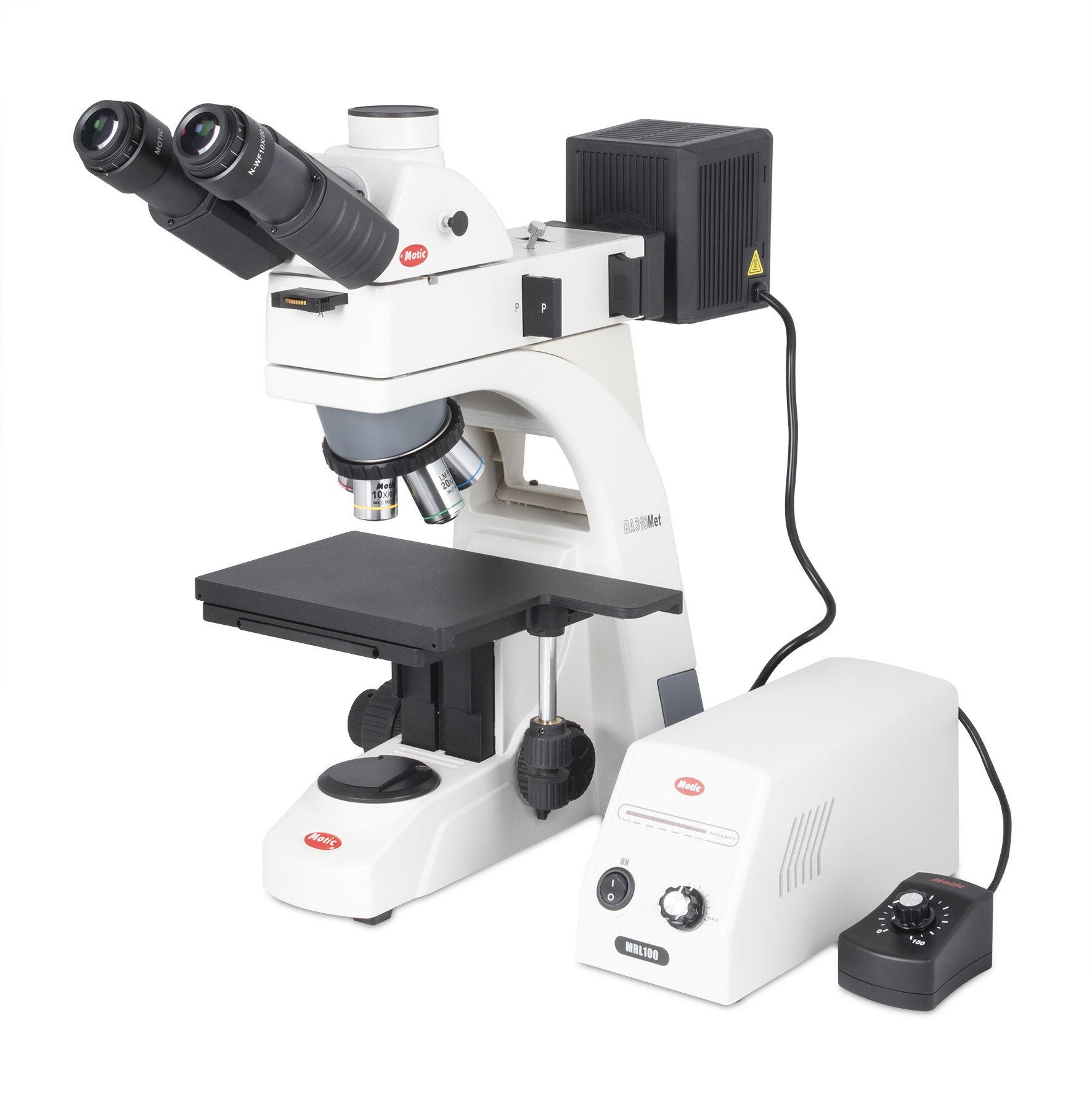

BA310 MET Trinocular
Download

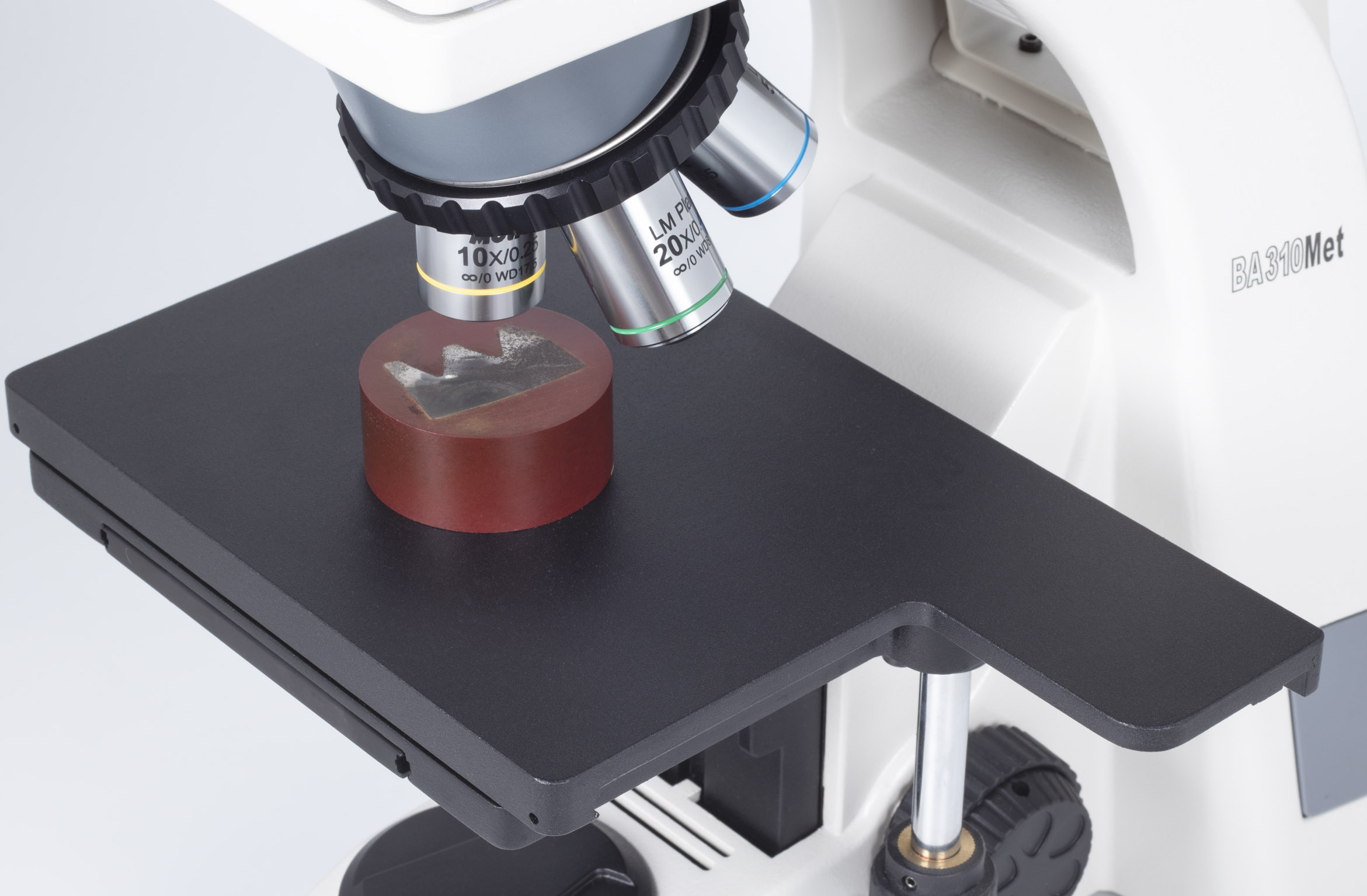

BA310 MET Trinocular - DETAIL1
Download

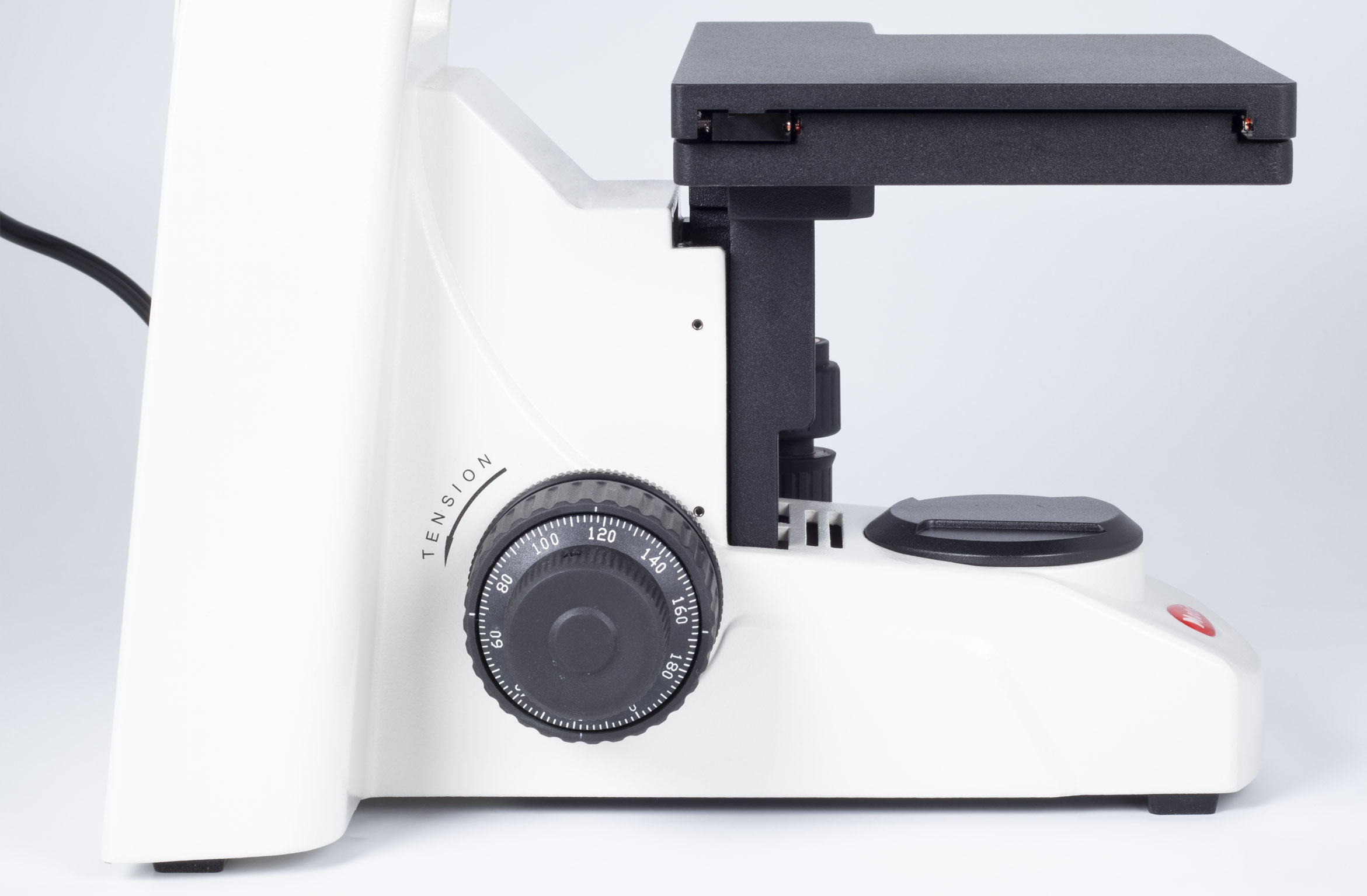

BA310 MET Trinocular - DETAIL2
Download

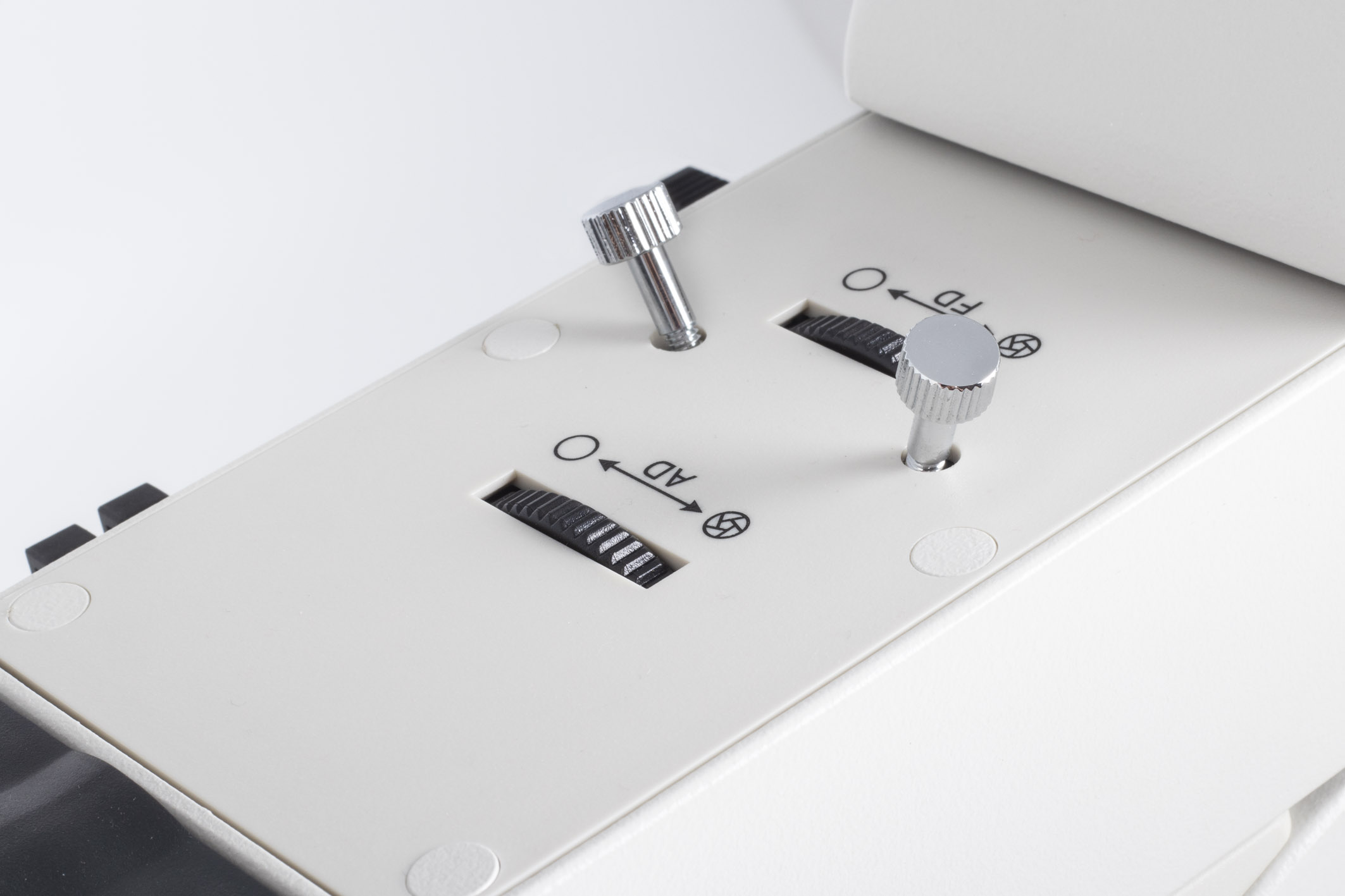

BA310 MET Trinocular - DETAIL3
Download

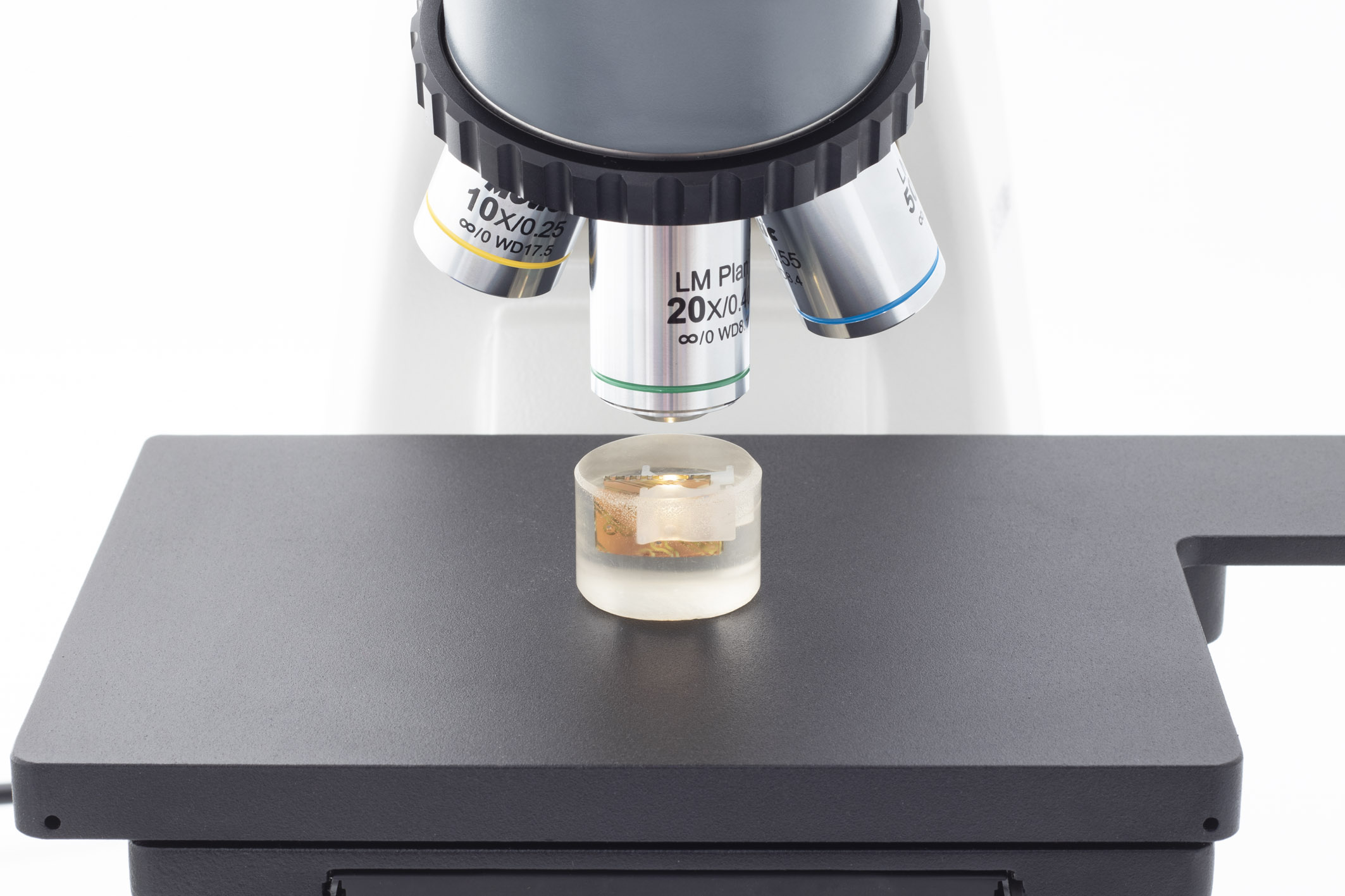

BA310 MET Trinocular - DETAIL4
Download

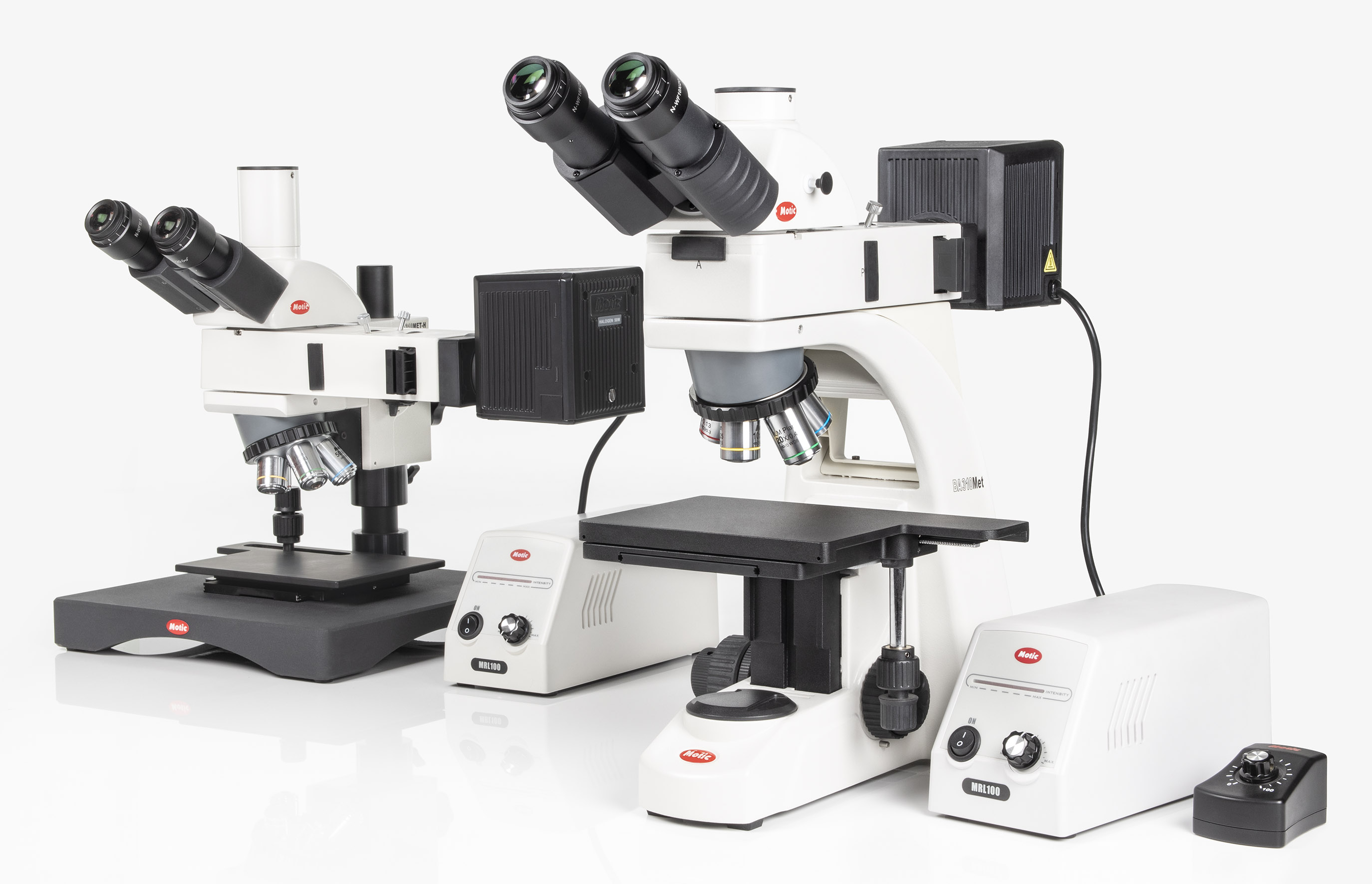

BA310MET Series
Download

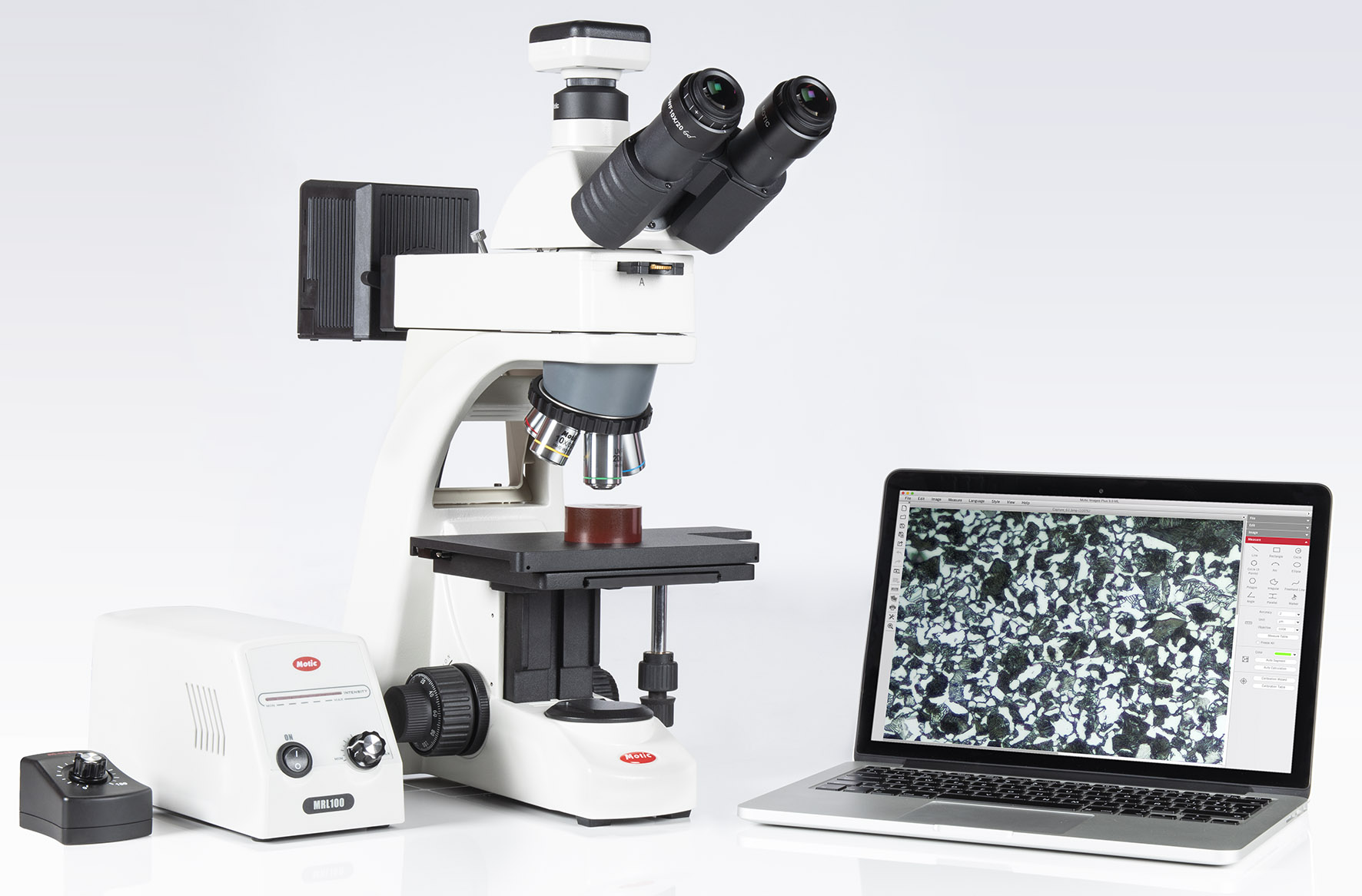

BA310 MET Trinocular - DETAIL5
Download

Instructions

  • BA310MET Series - User Manual File size: --

Guides

  • Basic microscopy concepts. Resolution and magnification - Guide File size: 410.11 KB
    Language: English
  • Basic microscopy concepts. Parfocality adjustment for upright microscopes - Guide File size: 353.65 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English
Accessories for this model
