BA210 LED Binocular

Binocular microscope for basic work in life sciences of biology and medicine. Sections, smears and native transparent samples are displayed by high-quality Plan Achromat objectives. Students and lab technician benefit from the pre-installed setup of optics and 3 W LED illumination, ready to start.
Product code
1100100403752
1,002.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Specifications
Model BA210 LED Binocular
Observation tube Binocular head, Siedentopf type
Optical system Colour Corrected Infinity Optical System (CCIS®)
Inclination 30º inclined, 360º rotating
Interpupillary distance 55-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Nosepiece Reversed quadruple
Objective classification CCIS® EC Plan Achromatic, DIN
Objectives 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright
Stage Mechanical stage with built-in low position coaxial stage control and sample holder
Stage size 140x135mm
Travel range X&Y 76x50mm
Condenser Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 25mm
Upper limit stop Upper limit stop preset but adjustable
Filter holder On top of the illuminator
Transmitted illumination LED 3W with intensity control
Transformer Internal
Power supply 100-240V (CE)
Accessories included Dust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screw
Dimensions LxWxH 360x220x395mm
Weight Net 7.2kg
Contrast techniques
Standard contrast technique Brightfield
Phase contrast Optional slider
Polarization Optional add-on
Darkfield Optional slider

Catalogues

  • BA210 - Diptych File size: --

Specification sheets

  • BA210 LED Binocular - SpecSheet File size: --

Images

BA210 LED Binocular - DETAIL3 - IMG
Download
BA210 LED Binocular - IMG
Download
BA210 Series - IMG
Download

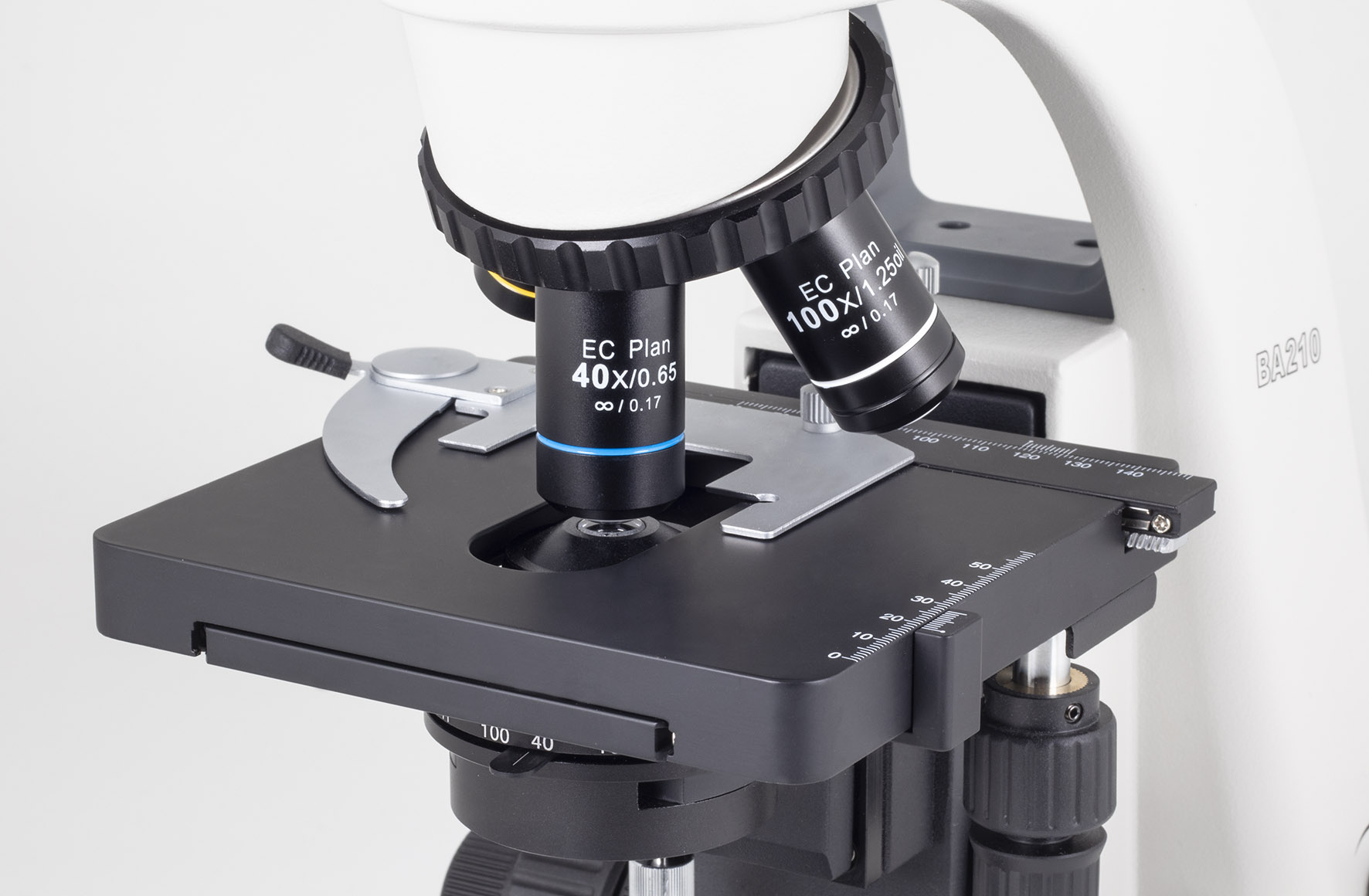

BA210 LED Binocular - DETAIL1 - IMG
Download
BA210 LED Binocular - DETAIL2 - IMG
Download

Instructions

  • BA210 Series - User Manual File size: --

Guides

  • Safety recommendations. How to ensure a clean microscope -Guide File size: --
  • How to mount Moticam 1080 INT BA Series - guide File size: --

Contrast Methods - Simple Phase Contrast | by Motic Europe

Discover how to use the Phase Contrast accessories in our BA210, BA310 and BA410 upright microscopes, including the Elite versions. By our product specialist Dr. Hans-Jürgen Klemenz.

Contrast Methods - Polarizing system | by Motic Europe

Discover how to use the polarization contrast accessories in our BA210, BA310 and BA410 upright microscopes, including the Elite versions. By our product specialist Dr. Hans-Jürgen Klemenz.

Contrast Methods - Polarization Contrast in BA210, BA210E, BA310 & BA310E | by Motic Europe

Discover how to setup the polarizing equipment in our BA210 and BA310 upright microscopes, and its Elite versions. By our product specialist Dr. Hans-Jürgen Klemenz.

Contrast Methods - Darkfield with slider solution for BA series | by Motic Europe

Discover how to perform the darkfield contrast method with the slider solution, in our BA series of upright microscopes BA210, BA310, BA410 and its Elite versions. By our product specialist Dr. Hans-Jürgen Klemenz.

How to mount the Moticam 1080 INT onto BA Series microscope | by Motic Europe

Discover how to mount the Moticam 1080 INT Full HD camera onto a Motic's BA Series microscope by following a few easy steps. Learn first how to mount the Moticam's 1080 INT screen onto the camera's body and then, how to mount the complete system into a BA microscope.

How to mount the Moticam 1080 INT onto BA Series microscope | by Motic Europe

Discover how to mount the Moticam 1080 INT Full HD camera onto a Motic's BA Series microscope by following a few easy steps. Learn first how to mount the Moticam's 1080 INT screen onto the camera's body and then, how to mount the complete system into a BA microscope.

How to adjust the tension of the focusing system (ring). E.g. AE Series | by Motic Europe

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. Valid for: BA Series / AE Series / RED200 Series / SWIFT200 Series / B1 ELITE Series / B3 Series / 28 Series / BA50&80 Series / RED130, 131 and 132 models / SWIFT130X and 132 models.

How to change the halogen bulb & LED module of a BA210, BA310, BA210E and BA310E | by Motic Europe

Learn how easy it is to replace the halogen bulb and the LED module and how to interchange the halogen/LED illumination in your Motic BA210, BA310, BA210E and BA310E microscopes. Valid for: BA210, BA310, BA210E and BA310E models.

How to replace the PCB LED illumination of a BA210 and a BA310 LED | by Motic Europe

Learn how easy it is to replace the PCB LED illumination of BA210 and a BA310 LED microscopes. Valid for: BA210 LED and BA310 LED models.
