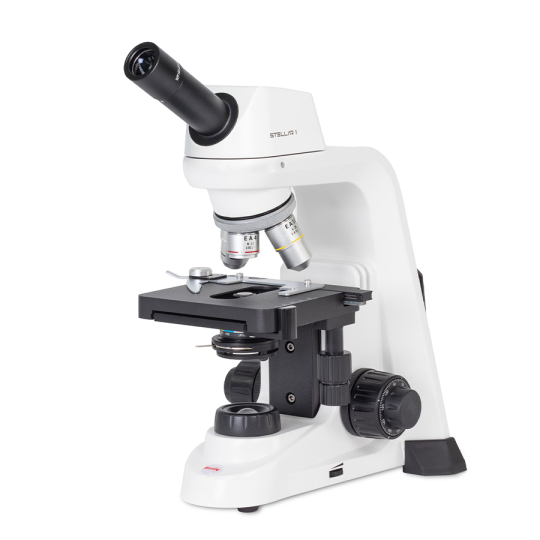

Stellar 1-M
Stellar microscopes are easy to set up and use, making them perfect for students and educational settings. Their most remarkable features are a unique double slide storage, the focus guidelines that allow users to locate the optimal focus simply by aligning the cues, and the aperture diaphragm indicator, colour-matched to the objectives, ensuring an effortlessly sharp image.... View More
Product code
1100105300211
412.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | Stellar 1-M |
|---|---|
| Observation tube | Monocular head |
| Optical system | Finite optical system, 160mm |
| Inclination | 30º inclined, 360º rotating |
| Eyepieces | Widefield WF10X/18mm |
| Nosepiece | Quadruple |
| Objective classification | S A Achromatic, DIN |
| Objectives | 4X/0.10 (WD 17.9mm), 10X/0.25 (WD 5.3mm), 40X/0.65/S (WD 0.61mm), 100X/1.25/S-Oil (WD 0.165mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage with built-in low position coaxial stage control and sample holder |
| Stage size | 125x115mm |
| Travel range X&Y | 70x25mm |
| Condenser | Abbe Condenser N.A. 1.25 |
| Diaphragm | Color coded iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 3.4µm |
| Focusing stroke | 14mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Transmitted illumination | LED 1W with intensity control |
| Illumination features | Sleep mode (30 min. auto on-off) |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Other features | Double slide storage, smart cable storage, Type C power input (also for battery pack) |
| Accessories included | Dust cover, immersion oil (5ml) |
| Dimensions LxWxH | 338x171x338mm |
| Weight Net | 4.1kg |
| Model | Stellar 1-M |
|---|---|
| Observation tube | Monocular head |
| Optical system | Finite optical system, 160mm |
| Inclination | 30º inclined, 360º rotating |
| Eyepieces | Widefield WF10X/18mm |
| Nosepiece | Quadruple |
| Objective classification | S A Achromatic, DIN |
| Objectives | 4X/0.10 (WD 17.9mm), 10X/0.25 (WD 5.3mm), 40X/0.65/S (WD 0.61mm), 100X/1.25/S-Oil (WD 0.165mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage with built-in low position coaxial stage control and sample holder |
| Stage size | 125x115mm |
| Travel range X&Y | 70x25mm |
| Condenser | Abbe Condenser N.A. 1.25 |
| Diaphragm | Color coded iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 3.4µm |
| Focusing stroke | 14mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Transmitted illumination | LED 1W with intensity control |
| Illumination features | Sleep mode (30 min. auto on-off) |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Other features | Double slide storage, smart cable storage, Type C power input (also for battery pack) |
| Accessories included | Dust cover, immersion oil (5ml) |
| Dimensions LxWxH | 338x171x338mm |
| Weight Net | 4.1kg |
>
