SMZ171 Series >
Know more about this Series
SMZ171iX

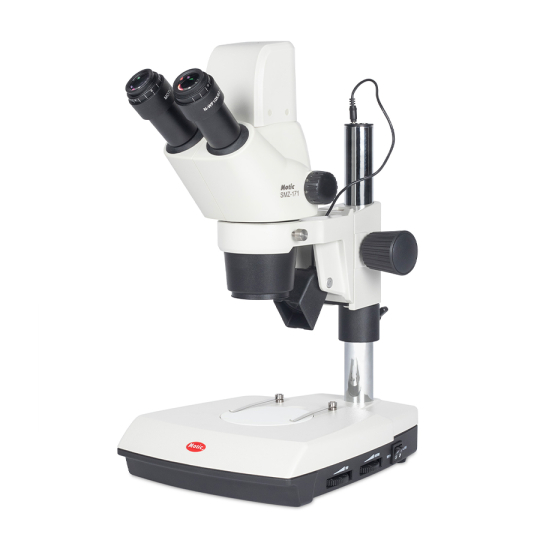

The Motic SMZ171iX is a Digital Wi-Fi stereo microscope station, designed for use with tablets or smartphones via Motic's free app, MotiConnect, and for sharing images with up to six users simultaneously. It is also compatible with computers using our Motic Images Plus software. Ideal for biomedical and material science applications, the Greenough optical system delivers... View More
Product code
1100501320081
1,990.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | SMZ171iX |
|---|---|
| Observation tube | Binocular head |
| Optical system | Greenough |
| Sensor type | CMOS |
| Sensor size | 1/3" |
| Capture resolution info | 4MP (2560 x 1440 pixels) |
| Live display mode through Wi-Fi | 1280x720, 1920x1080 pixels (Full HD) |
| Live display mode through Ethernet | 1280x720, 1920x1080 pixels (Full HD) |
| Inclination | 45º inclined |
| Interpupillary distance | 52-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
| Objectives system | Zoom, ratio 6.7:1 |
| Objectives | 0.75X~5X |
| Working distance | 110mm |
| Stand type | Pole type stand with transmitted illumination |
| Head holder | For Ø32mm column and Ø76mm head |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 49mm |
| Incident illumination | LED 3W with intensity control |
| Transmitted illumination | LED 3W with reflector and intensity control |
| Illumination features | Transmitted light with tilting reflector for oblique illumination |
| Software | Motic Images Plus 3.1 for Windows, OSX and Linux, MotiConnect App for iOS and Android |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, black/white and frosted stage plates |
| Weight Net | 6.5Kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
| Darkfield | Optional add-on |
| Model | SMZ171iX |
|---|---|
| Observation tube | Binocular head |
| Optical system | Greenough |
| Sensor type | CMOS |
| Sensor size | 1/3" |
| Capture resolution info | 4MP (2560 x 1440 pixels) |
| Live display mode through Wi-Fi | 1280x720, 1920x1080 pixels (Full HD) |
| Live display mode through Ethernet | 1280x720, 1920x1080 pixels (Full HD) |
| Inclination | 45º inclined |
| Interpupillary distance | 52-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
| Objectives system | Zoom, ratio 6.7:1 |
| Objectives | 0.75X~5X |
| Working distance | 110mm |
| Stand type | Pole type stand with transmitted illumination |
| Head holder | For Ø32mm column and Ø76mm head |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 49mm |
| Incident illumination | LED 3W with intensity control |
| Transmitted illumination | LED 3W with reflector and intensity control |
| Illumination features | Transmitted light with tilting reflector for oblique illumination |
| Software | Motic Images Plus 3.1 for Windows, OSX and Linux, MotiConnect App for iOS and Android |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, black/white and frosted stage plates |
| Weight Net | 6.5Kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
| Darkfield | Optional add-on |
>
