SMZ-171-TP

A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for... View More
Product code
1100200600762
1,086.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Specifications
Model SMZ-171-TP
Observation tube Trinocular head
Optical system Greenough
Inclination 45º inclined
Trinocular light split Fixed 50:50
Interpupillary distance 52-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/23mm with diopter adjustment
Objectives system Zoom, ratio 6.7:1
Objectives 0.75X~5X
Working distance 110mm
Stand type Pole type stand without illumination
Head holder For Ø32mm column and Ø76mm head
Focus mechanism Coarse focusing system with tension adjustment
Focusing stroke 49mm
Accessories included Dust cover, black/white stage plate
Dimensions LxWxH 303x239x370mm
Base 303x239mm
Column/Arm Height 290mm, Ø32mm
Weight Net 5.7kg
Contrast techniques
Standard contrast technique Brightfield

Catalogues

  • Life Sciences - Catalogue File size: --
  • Industry - Catalogue File size: --
  • SMZ171 - Diptych File size: --
  • SMZ171 - Catalogue File size: --

Specification sheets

  • SMZ-171-TP - SpecSheet File size: --

Images

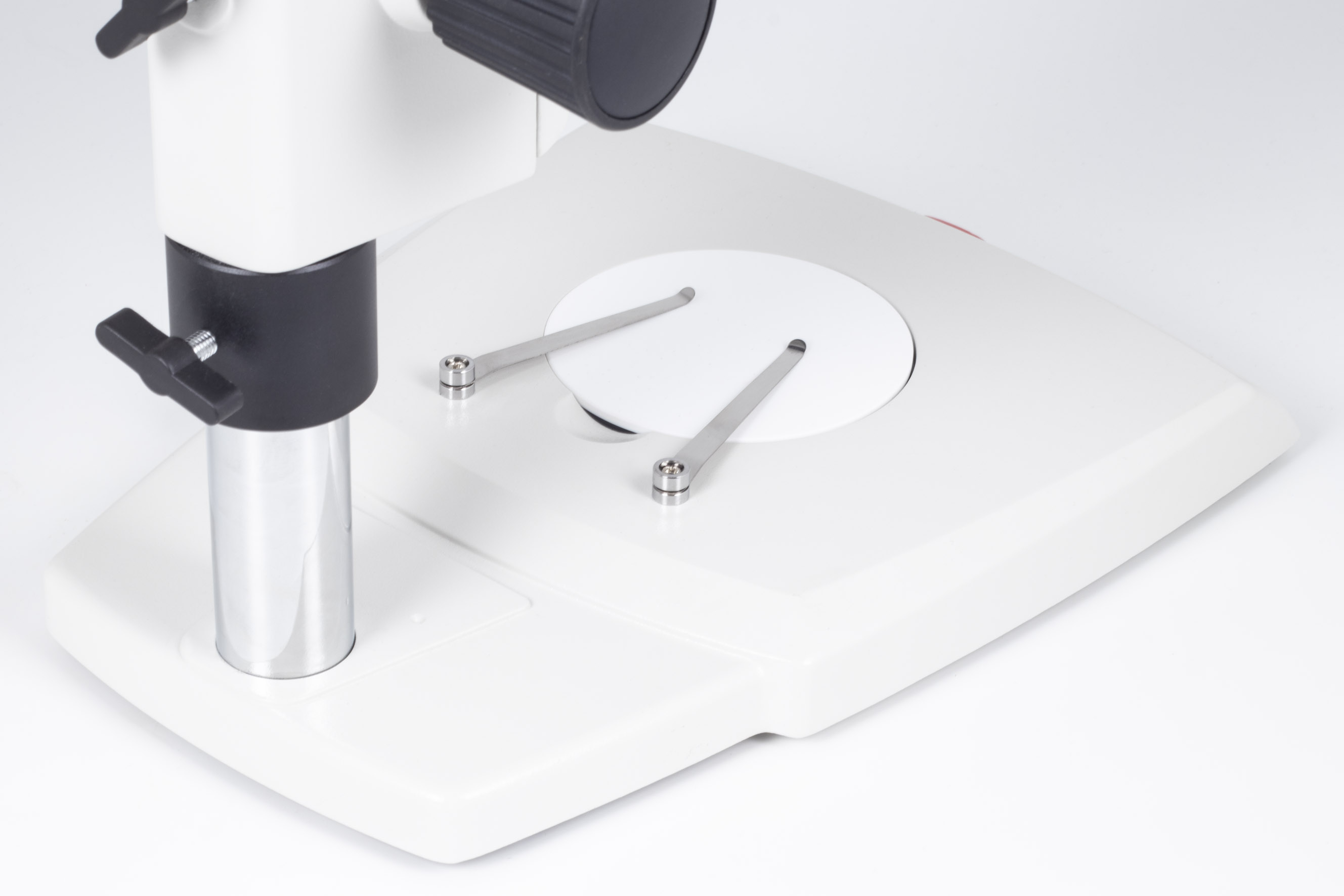

SMZ-171-TP - DETAIL1 - IMG
Download

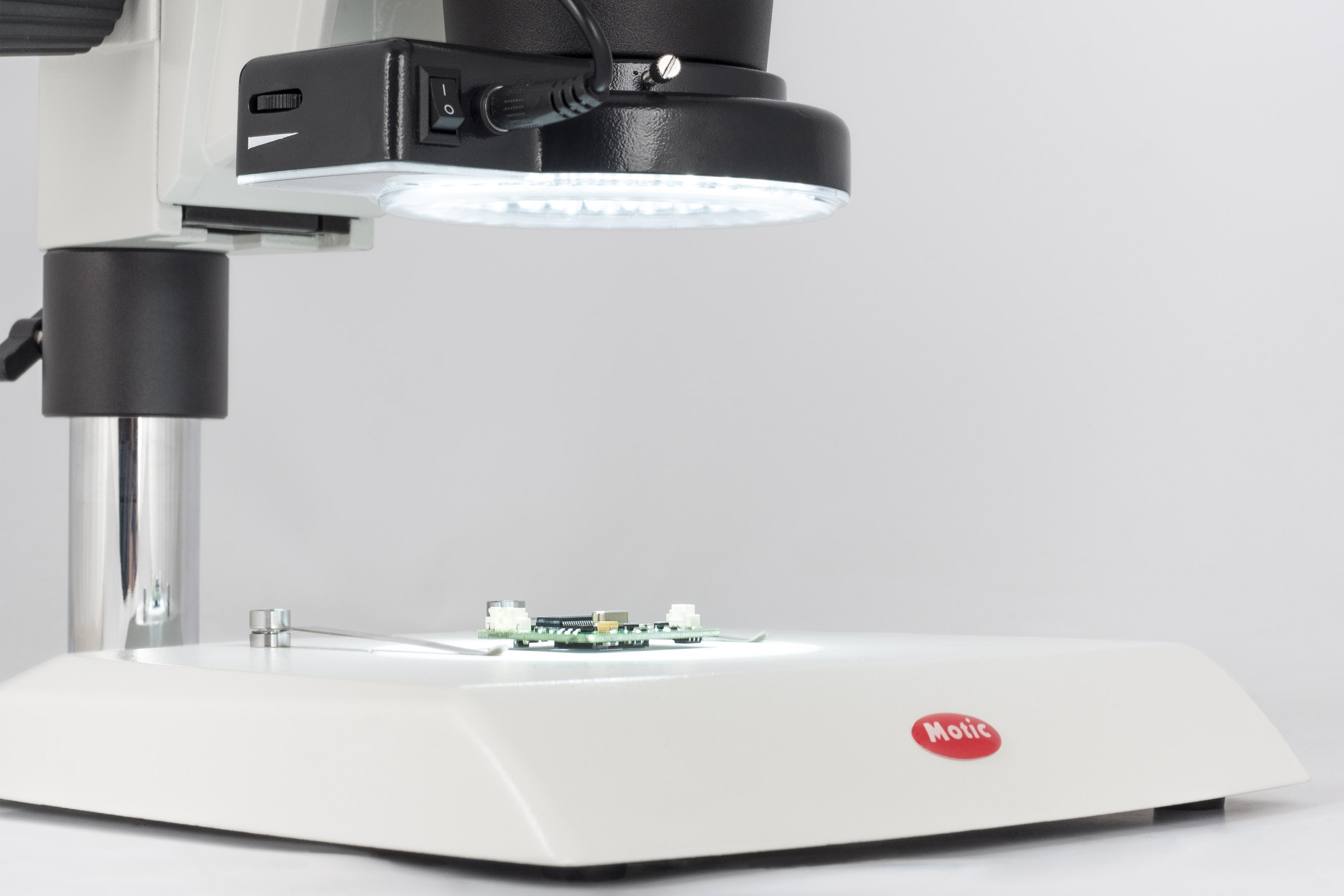

SMZ-171-TP - DETAIL2 - IMG
Download

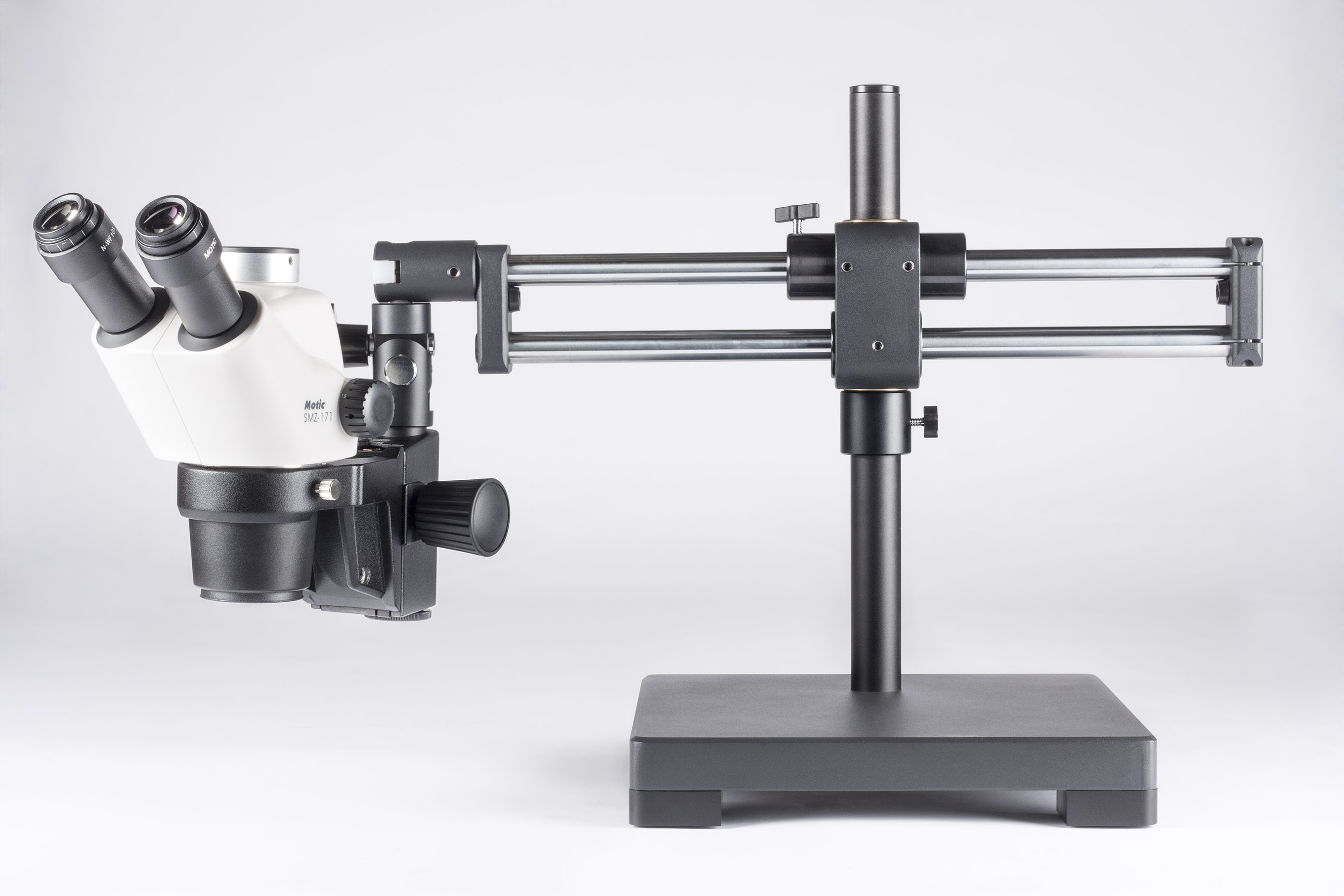

SMZ-171-TP - DETAIL3 - IMG
Download

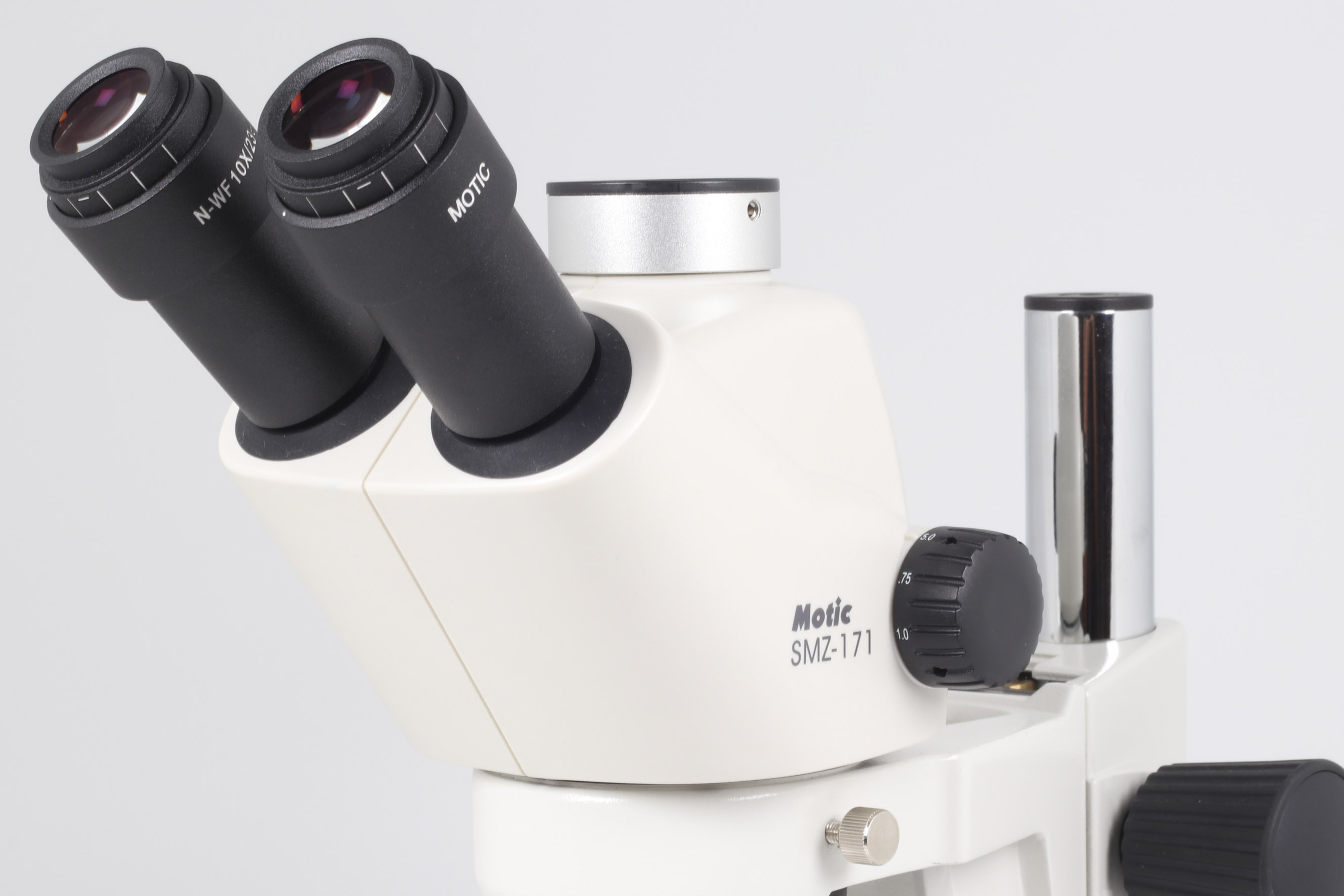

SMZ-171-TP - DETAIL4 - IMG
Download
SMZ171 Series - IMG
Download

Instructions

  • SMZ171 Series - User Manual File size: 5.4 MB
    Language: English

Guides

  • Basic concepts about stereo Microscopes - Guide File size: 457.25 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English
  • Safety recommendations. How to ensure a clean microscope -Guide File size: --

How to adjust the tension of the focusing system (hook key). E.g. SMZ168 | by Motic Europe

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. For models with Allen and hook key. Valid for: SMZ171 Series / SMZ168 Series / GM Series / RED30 Series / K Series / ST30 Series / S10&20 Series / SFC3 Series / SFC100 Series
