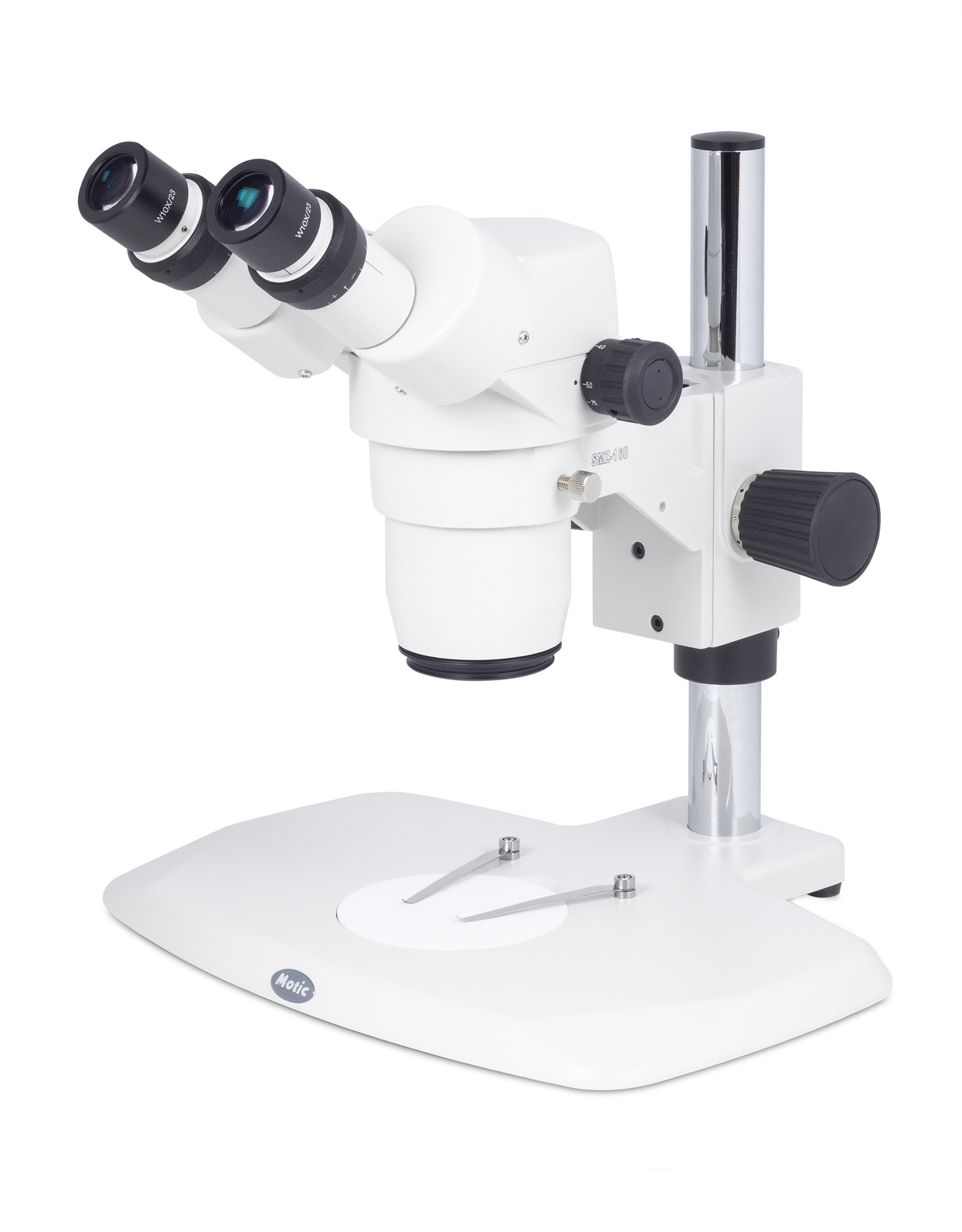

SMZ-168-BP

A versatile stereo microscope for a wide range of biological and material science applications in both routine and research fields. The Greenough optical system delivers impressive images in a parfocal 6.7:1 zoom. The standard magnification range of 7.5X-50X is the basis of a durable workhorse for multiple inspection and manipulation work. The instrument comes without... View More
Product code
PX660D6001
902.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Specifications
Model SMZ-168-BP
Observation tube Binocular head
Optical system Greenough
Inclination 35º inclined, 360º rotating
Interpupillary distance 54-76mm
Diopter adjustment On both tubes, +/- 5 diopter
Eyepieces Widefield WF10X/23mm
Objectives system Zoom, ratio 6.7:1
Objectives 0.75X~5X
Working distance 113mm
Stand type Pole type stand
Head holder For Ø32mm column and Ø76mm head
Focus mechanism Coarse focusing system with tension adjustment
Focusing stroke 49mm
Accessories included Dust cover, black/white stage plate
Dimensions LxWxH 329x277x365mm
Base 329x277mm
Column/Arm Height 295mm, Ø32mm
Weight Net 5.2kg
Contrast techniques
Standard contrast technique Brightfield

Specification sheets

  • SMZ-168-BP - SpecSheet File size: --

Images

SMZ-168-BP - IMG
Download
SMZ168 Series - IMG
Download

Instructions

  • SMZ168 Series - User Manual File size: --

Guides

  • Basic concepts about stereo Microscopes - Guide File size: 457.25 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English
  • Safety recommendations. How to ensure a clean microscope -Guide File size: --

How to adjust the tension of the focusing system (hook key). E.g. SMZ168 | by Motic Europe

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. For models with Allen and hook key. Valid for: SMZ171 Series / SMZ168 Series / GM Series / RED30 Series / K Series / ST30 Series / S10&20 Series / SFC3 Series / SFC100 Series
