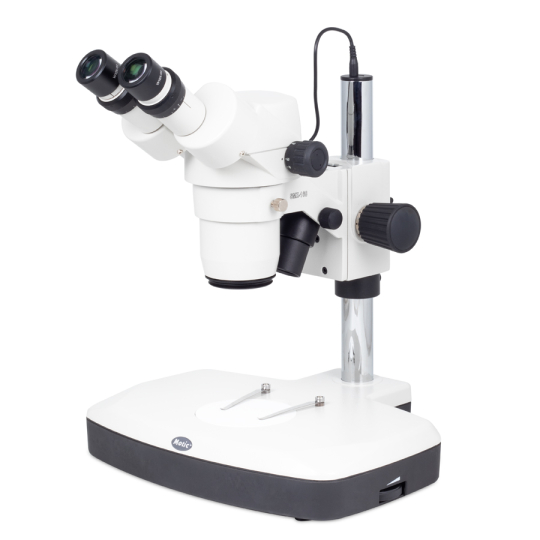

SMZ-168-BLED

A versatile stereo microscope for a wide range of biological and material science applications in both routine and research fields. The Greenough optical system delivers impressive images in a parfocal 6.7:1 zoom. The standard magnification range of 7.5X-50X is the basis of a durable workhorse. Students and lab technicians benefit from the package solution with integrated... View More
Product code
1100200500472
1,031.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Specifications
Model SMZ-168-BLED
Observation tube Binocular head
Optical system Greenough
Inclination 35º inclined, 360º rotating
Interpupillary distance 54-76mm
Diopter adjustment On both tubes, +/- 5 diopter
Eyepieces Widefield WF10X/23mm
Objectives system Zoom, ratio 6.7:1
Objectives 0.75X~5X
Working distance 113mm
Stand type Pole type stand with transmitted illumination
Head holder For Ø32mm column and Ø76mm head with incident illumination
Focus mechanism Coarse focusing system with tension adjustment
Focusing stroke 49mm
Incident illumination LED 3W with intensity control
Transmitted illumination LED 3W with intensity control
Transformer External
Power supply 100-240V (CE)
Accessories included Dust cover, black/white and frosted stage plates
Dimensions LxWxH 329x277x400mm
Base 329x277mm
Column/Arm Height 295mm, Ø32mm
Weight Net 5.3kg
Contrast techniques
Standard contrast technique Brightfield
Polarization Optional add-on
Darkfield Optional add-on

Specification sheets

  • SMZ-168-BLED - SpecSheet File size: --

Images

SMZ168 Series - IMG
Download
SMZ-168-BLED - IMG
Download
SMZ-168-BLED - DETAIL1 - IMG
Download
SMZ-168-BLED - DETAIL2 - IMG
Download

Instructions

  • SMZ168 Series - User Manual File size: --

Guides

  • Basic concepts about stereo Microscopes - Guide File size: 457.25 KB
    Language: English
  • Basic microscopy concepts. Parfocality adjustment for upright microscopes - Guide File size: 353.65 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English

How to adjust the tension of the focusing system (hook key). E.g. SMZ168 | by Motic Europe

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. For models with Allen and hook key. Valid for: SMZ171 Series / SMZ168 Series / GM Series / RED30 Series / K Series / ST30 Series / S10&20 Series / SFC3 Series / SFC100 Series

How to replace the incident illumination of the SMZ171 and SMZ168 LED models | by Motic Europe

Discover how to replace the LED assembly of the incident illumination of your Motic SMZ171-BLED/TLED or SMZ168-BLED/T-LED stereo microscopes. Learn how to do it in a few easy steps. Valid for: SMZ171-BLED, SMZ171-TLED, SMZ168-BLED, SMZ168-TLED.

How to replace the transmitted illumination of the SMZ171 and SMZ168 LED models | by Motic Europe

Discover how to replace the LED assembly of the transmitted illumination of your Motic SMZ171-BLED/TLED or SMZ168-BLED/T-LED stereo microscopes. Learn how to do it in a few easy steps. Valid for: SMZ171-BLED, SMZ171-TLED, SMZ168-BLED, SMZ168-TLED.

Accessories for this model
