SILVER30S

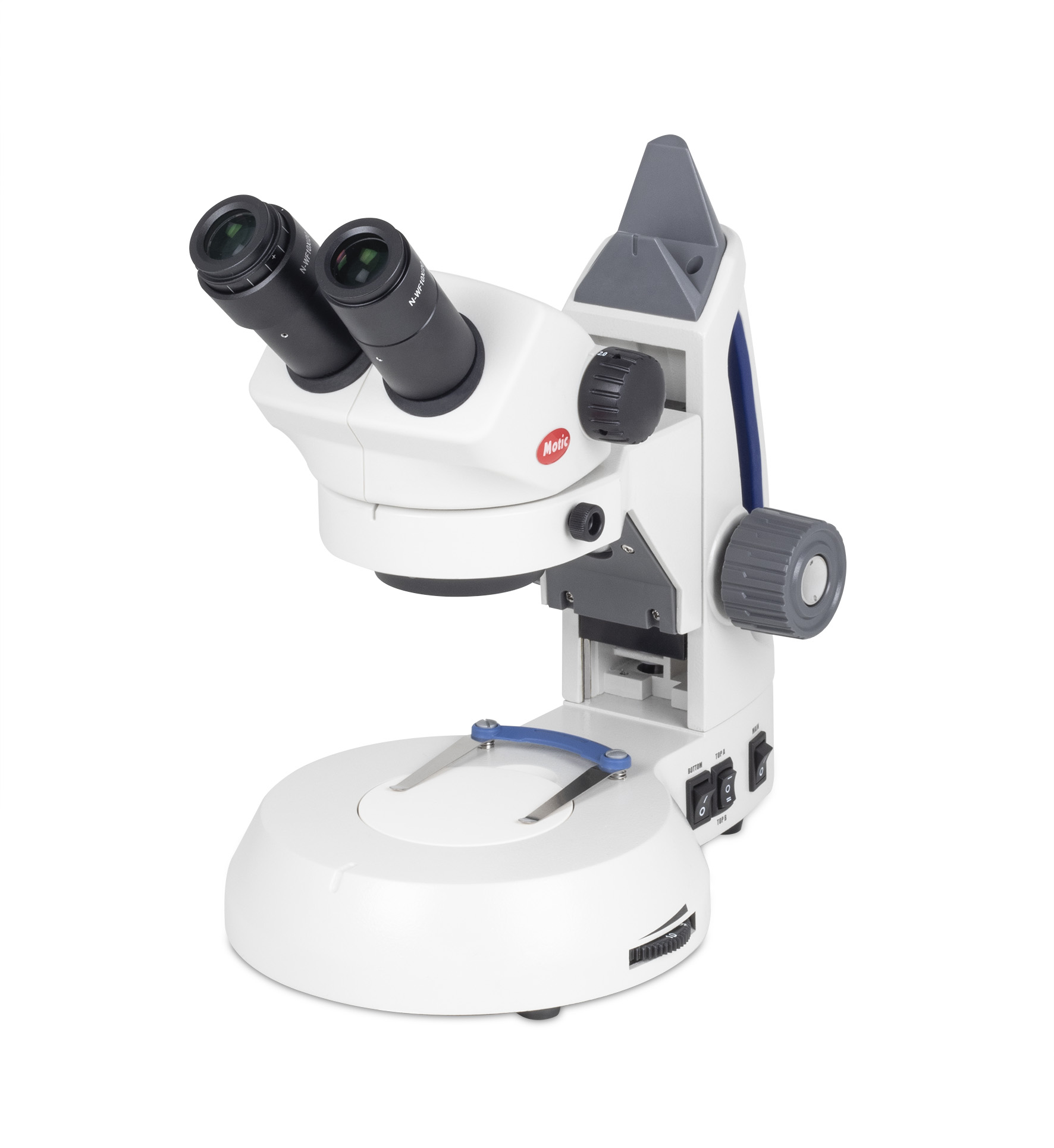

A basic stereo microscope for education work in university and High school. The Greenough optical system delivers clear images from a magnification changer with 2X/4X objectives, giving a magnification range of 20X-40X in standard outfit. Compact and easy to carry this package solution with an integrated 3-way transmitted/incident LED illumination is ready to start.
A basic stereo microscope for education work in university and High school. The Greenough optical system delivers clear images from a magnification changer with 2X/4X objectives, giving a magnification range of 20X-40X in standard outfit. Compact and easy to carry this package solution with an integrated 3-way transmitted/incident LED illumination is ready to start. View Less
Product code
1100201200082
331.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Add to Wish List
Add to Compare
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Model | SILVER30S |
---|---|
Observation tube | Binocular head |
Optical system | Greenough |
Inclination | 45º inclined, 360º rotating |
Interpupillary distance | 49-70mm |
Diopter adjustment | On left tube, +/- 5 diopter |
Eyepieces | Widefield WF10X/20mm |
Objectives system | Turret changer by rotating knob |
Objectives | 2X-4X |
Working distance | 70mm |
Stand type | Fixed arm type stand |
Head holder | Fixed |
Focus mechanism | Coarse focusing system with tension adjustment |
Focusing stroke | 50mm |
Incident illumination | LED 3.5V/0.5W |
Transmitted illumination | LED 3.5V/0.5W |
Turret illumination | LED 3.5V/0.5W |
Illumination features | 3-way rechargeable LED illumination with 5 light setting combination with intensity control |
Transformer | External |
Power supply | Charger 100-240V or rechargeable batteries (CE) |

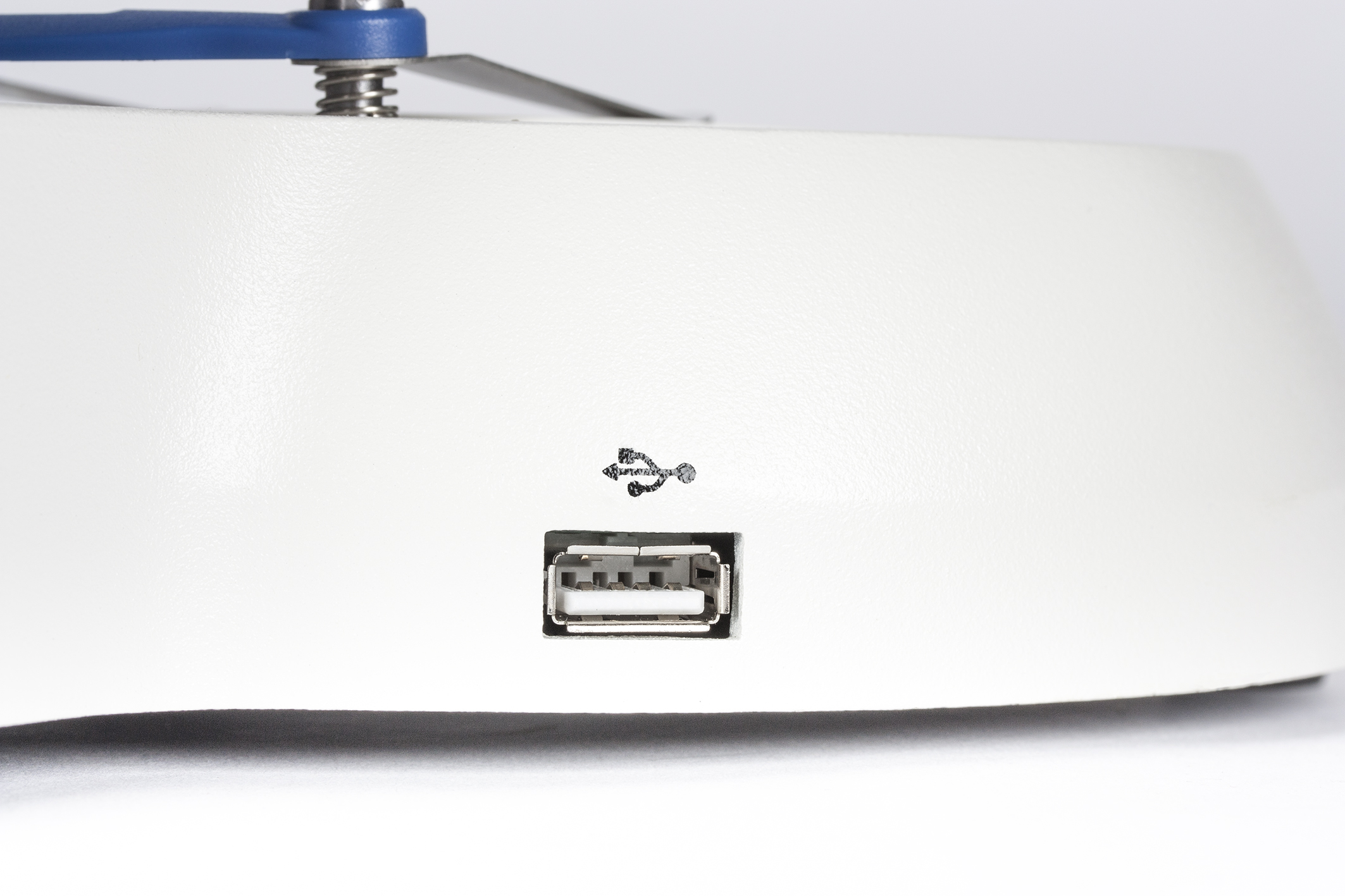

Other features | USB 2.0 port for external devices 5V/500mA |
Accessories included | Dust cover, charger, batteries, black/white and frosted stage plates |
Dimensions LxWxH | 284x187x270mm |
Base | 284x187mm |
Column/Arm | Height 231mm |
Weight Net | 3.5kg |
Contrast techniques | |
Standard contrast technique | Brightfield |
Catalogues
Specification sheets
Images
Instructions
Guides
-
Basic concepts about stereo Microscopes - Guide File size: 457.25 KBLanguage: English
-
Basic microscopy concepts. Parfocality adjustment for upright microscopes - Guide File size: 330.83 KBLanguage: English
-
Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KBLanguage: English
-
Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KBLanguage: English
-
Safety recommendations. How to ensure a clean school microscope - Guide File size: --
