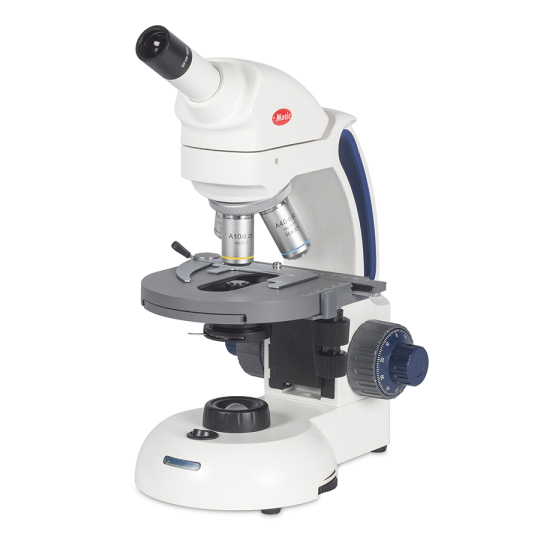

SILVER120

A monocular educational microscope dedicated to school environments. An LED light source without heat development provides safe illumination. Simple to use, easy to store by the carrying handle, the separate coarse and fine focus facilitates teaching, while the rechargeable battery pack allows cordless usage without mains supply.
Product code
1100103700047
394.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Specifications
Model SILVER120
Observation tube Monocular head
Optical system Finite optical system, 160mm
Inclination 30º inclined, 360º rotating
Eyepieces Widefield WF10X/18mm with Pointmaster reticle, lockable
Nosepiece Reversed quadruple
Objective classification Achromatic, DIN, lockable
Objectives 4X/0.10, 10X/0.25, 40X/0.65/S
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright
Stage Mechanical stage with built-in low position coaxial stage control and sample holder
Stage size 140x140mm
Travel range X&Y 77x31mm
Condenser Spiral mounted Abbe condenser N.A. 1.25
Diaphragm Iris diaphragm
Focus mechanism Separate coarse and fine focusing system
Fine focus precision 2µm
Focusing stroke 7mm
Upper limit stop Upper limit stop preset but adjustable
Filter Built-in frosted glass
Transmitted illumination LED 3.5V/70mW with intensity control
Transformer External
Power supply Charger 100-240V or rechargeable batteries (CE)
Accessories included Dust cover, charger, batteries
Dimensions LxWxH 234x151x346mm
Weight Net 5.1kg
Contrast techniques
Standard contrast technique Brightfield
