SILVER100 Series > Know more about this Series

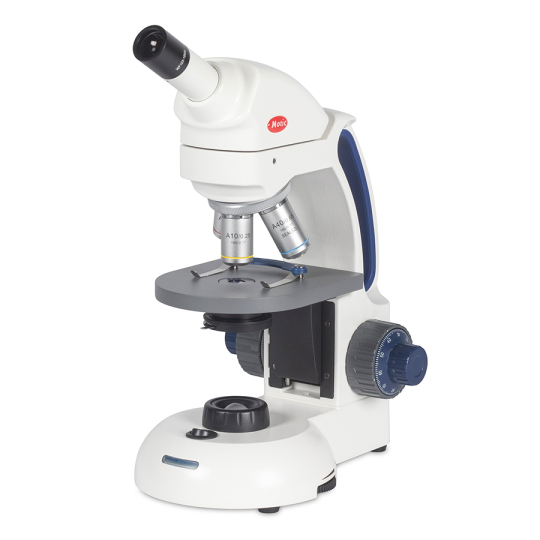

SILVER100

A monocular educational microscope dedicated to school environments. An LED light source without heat development provides for safe illumination. Simple to use, easy to store by the carrying handle, the separate coarse and fine focus facilitates teaching, while the rechargeable battery pack allows cordless usage without mains supply.
Product code
1100103700023
321.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Specifications
Model SILVER100
Observation tube Monocular head
Optical system Finite optical system, 160mm
Inclination 30º inclined, 360º rotating
Eyepieces Widefield WF10X/18mm with Pointmaster reticle, lockable
Nosepiece Reversed triple
Objective classification Achromatic, DIN, lockable
Objectives 4X/0.10, 10X/0.25, 40X/0.65/S
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright
Stage Plain stage with "one-touch" sample clips
Stage size 140x120mm
Condenser Built-in condenser lens N.A. 0.65 with frosted filter
Diaphragm Iris diaphragm
Focus mechanism Separate coarse and fine focusing system
Fine focus precision 2µm
Focusing stroke 7mm
Upper limit stop Upper limit stop preset but adjustable
Filter Built-in frosted glass
Transmitted illumination LED 3.5V/70mW with intensity control
Transformer External
Power supply Charger 100-240V or rechargeable batteries (CE)
Accessories included Dust cover, charger, batteries
Dimensions LxWxH 234x151x346mm
Weight Net 5.0kg
Contrast techniques
Standard contrast technique Brightfield

Catalogues

  • SILVER LINE - Catalogue File size: --

Specification sheets

  • SILVER100 - SpecSheet File size: --

Images

SILVER100 - IMG
Download
SILVER100 Series - IMG
Download
SILVER100 - DETAIL1 - IMG
Download
SILVER100 - DETAIL 2 - IMG
Download
SILVER100 - DETAIL 3 - IMG
Download

Guides

  • Basic microscopy concepts. Resolution and magnification - Guide File size: 410.11 KB
    Language: English
  • Basic microscopy concepts. Parfocality adjustment for upright microscopes - Guide File size: 353.65 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English
  • Safety recommendations. How to ensure a clean school microscope - Guide File size: --
Accessories for this model
