SHKolleg Series > Know more about this Series

SH Kolleg 3430

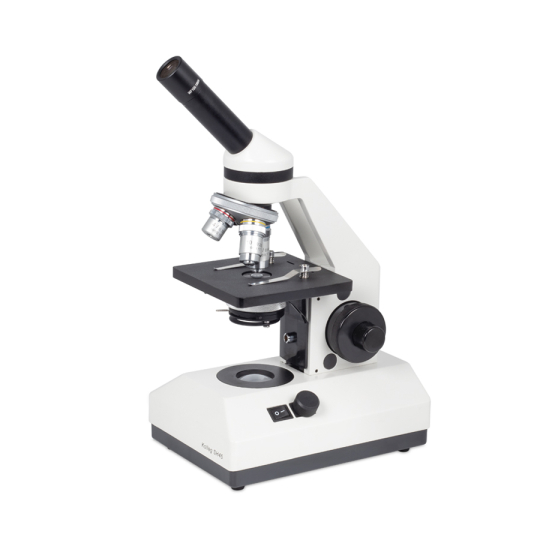

A classic monocular educational microscope for schools and young hobbyists. Simple to handle, the parcentric and parfocal objectives facilitate the easy change of magnification. An included dark field stop gives access to an additional contrast method.
Product code
PE02.000.2E4
Availability: Out of stock
194.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Specifications
Model SH Kolleg 3430
Observation tube Monocular head
Optical system Finite optical system, 160mm
Inclination 45º inclined, 360º rotating
Eyepieces Widefield WF10X/18mm
Nosepiece Quadruple
Objective classification Achromatic, DIN
Objectives 4X/0.10, 10X/0.25, 40X/0.65/S
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright
Stage Plain stage with sample clips
Condenser Focusable Abbe Condenser N.A. 1.25
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system
Transmitted illumination Halogen 12V/10W with intensity control
Transformer External
Contrast techniques
Standard contrast technique Brightfield
Polarization Optional add-on

Catalogues

  • SH Kolleg - Catalogue File size: 308.57 KB
    Language: English

Specification sheets

  • SH Kolleg 3430 - SpecSheet File size: --

Images

SH KOLLEG 3430 - IMG
Download
SH KOLLEG 3430 - DETAIL1- IMG
Download
SHKolleg Series - IMG
Download

Guides

  • Basic microscopy concepts. Resolution and magnification - Guide File size: 410.11 KB
    Language: English
  • Basic microscopy concepts. Parfocality adjustment for upright microscopes - Guide File size: 353.65 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English
Accessories for this model
