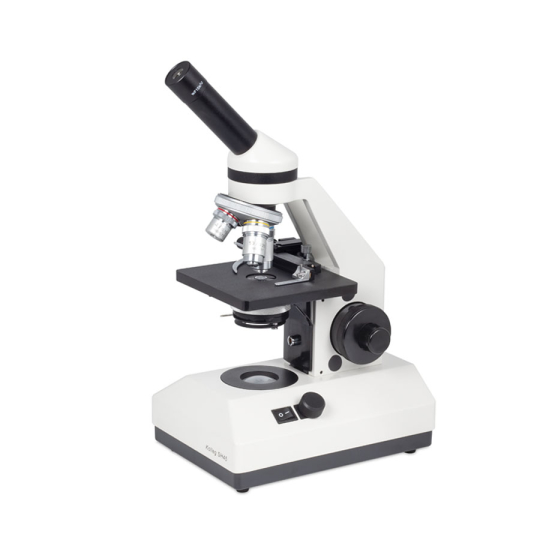

SH Kolleg 3430 (WF15X+MSH)
A classic monocular educational microscope for schools and young hobbyists. Simple to handle, the parcentric and parfocal objectives facilitate an easy change of magnification. An attachable sample holder ensures the safe movement of the slide. The 15X eyepiece gives additional access to minute phenomena like yeast cells.
Product code
PE02.000.7E4
262.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | SH Kolleg 3430 (WF15X+MSH) |
|---|---|
| Observation tube | Monocular head |
| Optical system | Finite optical system, 160mm |
| Inclination | 45º inclined, 360º rotating |
| Eyepieces | Widefield WF15X/12mm |
| Nosepiece | Quadruple |
| Objective classification | Achromatic, DIN |
| Objectives | 4X/0.10, 10X/0.25, 40X/0.65/S |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Plain stage with mechanical sample holder MSH-009 |
| Condenser | Focusable Abbe Condenser N.A. 1.25 |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system |
| Transmitted illumination | Halogen 12V/10W with intensity control |
| Transformer | External |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
