RED220

A binocular educational microscope with advanced features. A small footprint for easy storage, countersunk screws to protect eyepieces and tube against unauthorised removal: a perfect setup for educational environments. The optical equipment shows a full magnification range of SP Semi-Plan objectives from 4X to 100X in a 4-fold nosepiece. The coaxial coarse/fine focus and the... View More
Product code
1100102900067
772.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Specifications
Model RED220

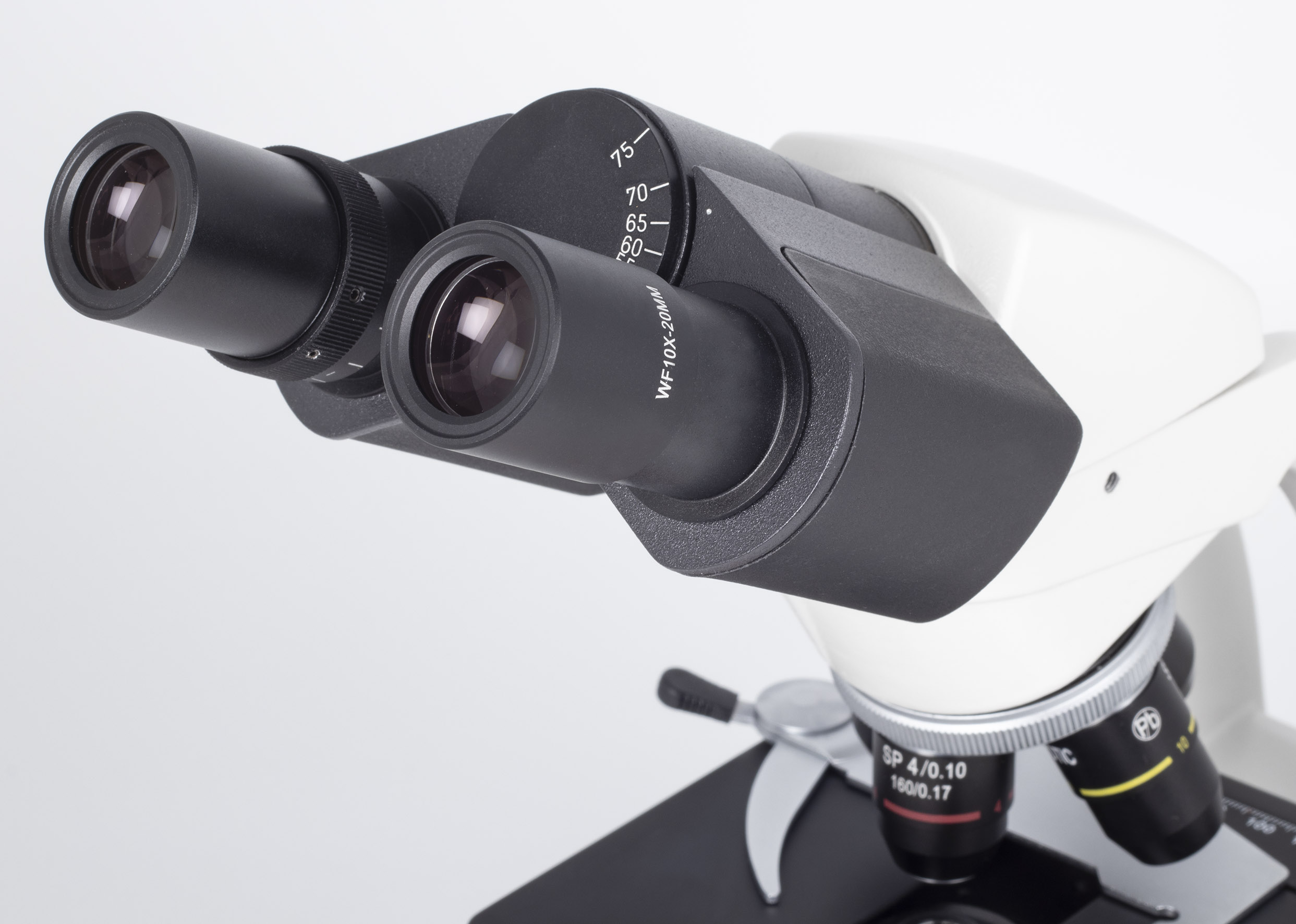

Observation tube Binocular head, Siedentopf type
Optical system Finite optical system, 160mm
Inclination 30º inclined, 360º rotating
Interpupillary distance 55-75mm
Diopter adjustment On left tube, +/- 5 diopter
Eyepieces Widefield WF10X/20mm

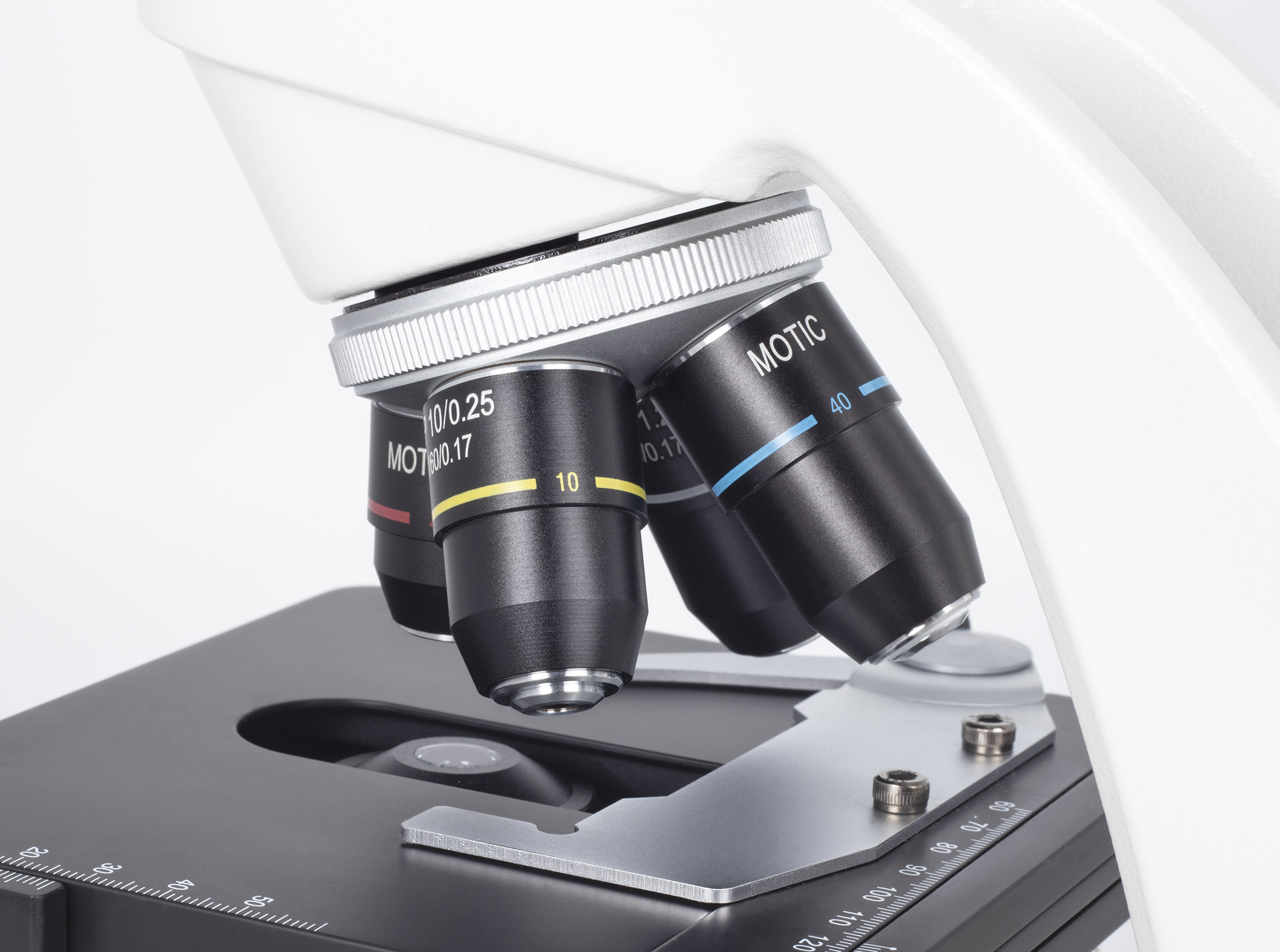

Nosepiece Reversed quadruple
Objective classification SP Semi-Plan Achromatic, DIN
Objectives 4X/0.10 (WD 17mm), 10X/0.25 (WD 6.4mm), 40X/0.65/S (WD 0.45mm), 100X/1.25/S-Oil (WD 0.14mm)
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright

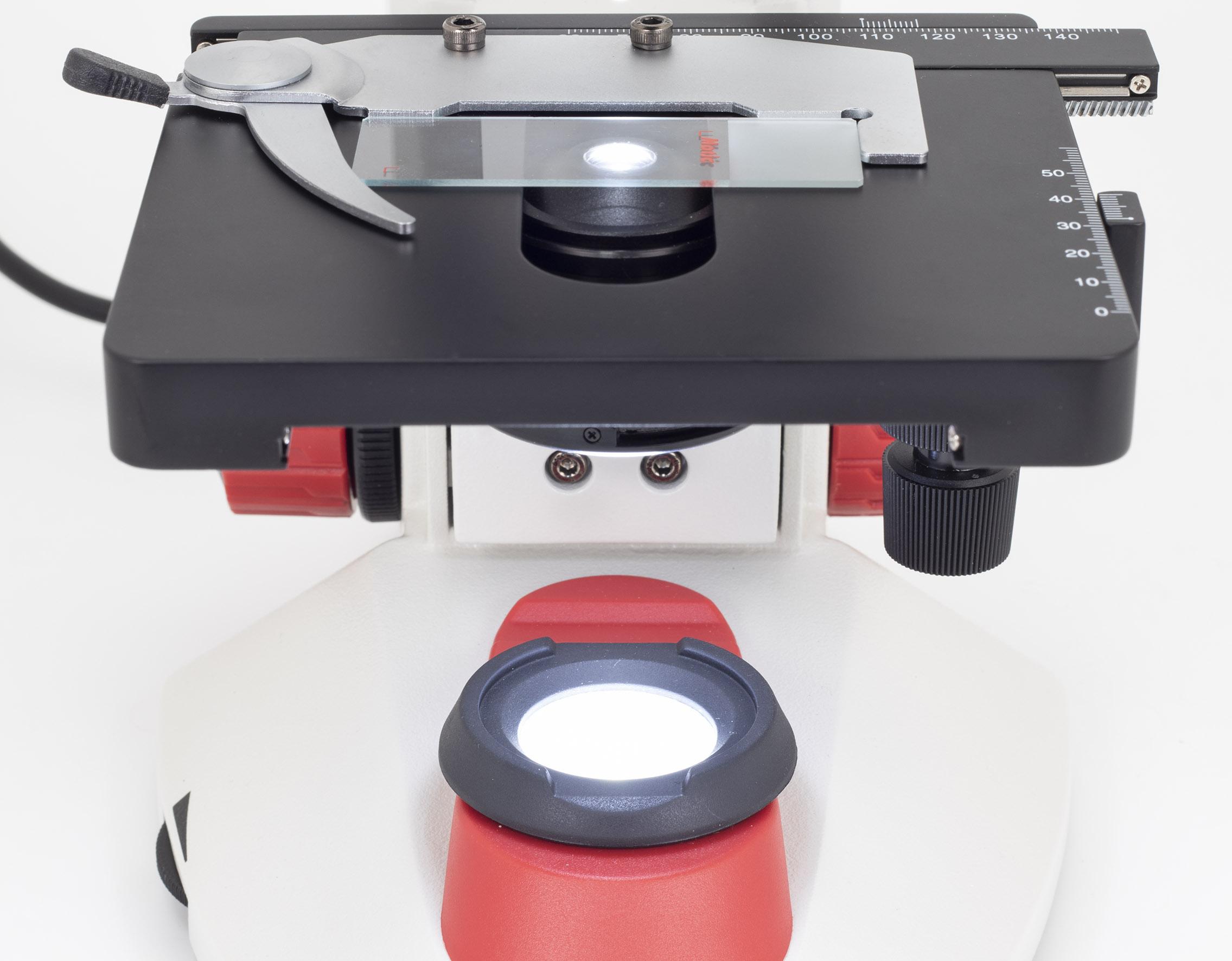

Stage Mechanical stage with built-in low position coaxial stage control and sample holder
Stage size 140x135mm
Travel range X&Y 77x50mm
Condenser Spiral mounted Abbe condenser N.A. 1.25
Diaphragm Iris diaphragm

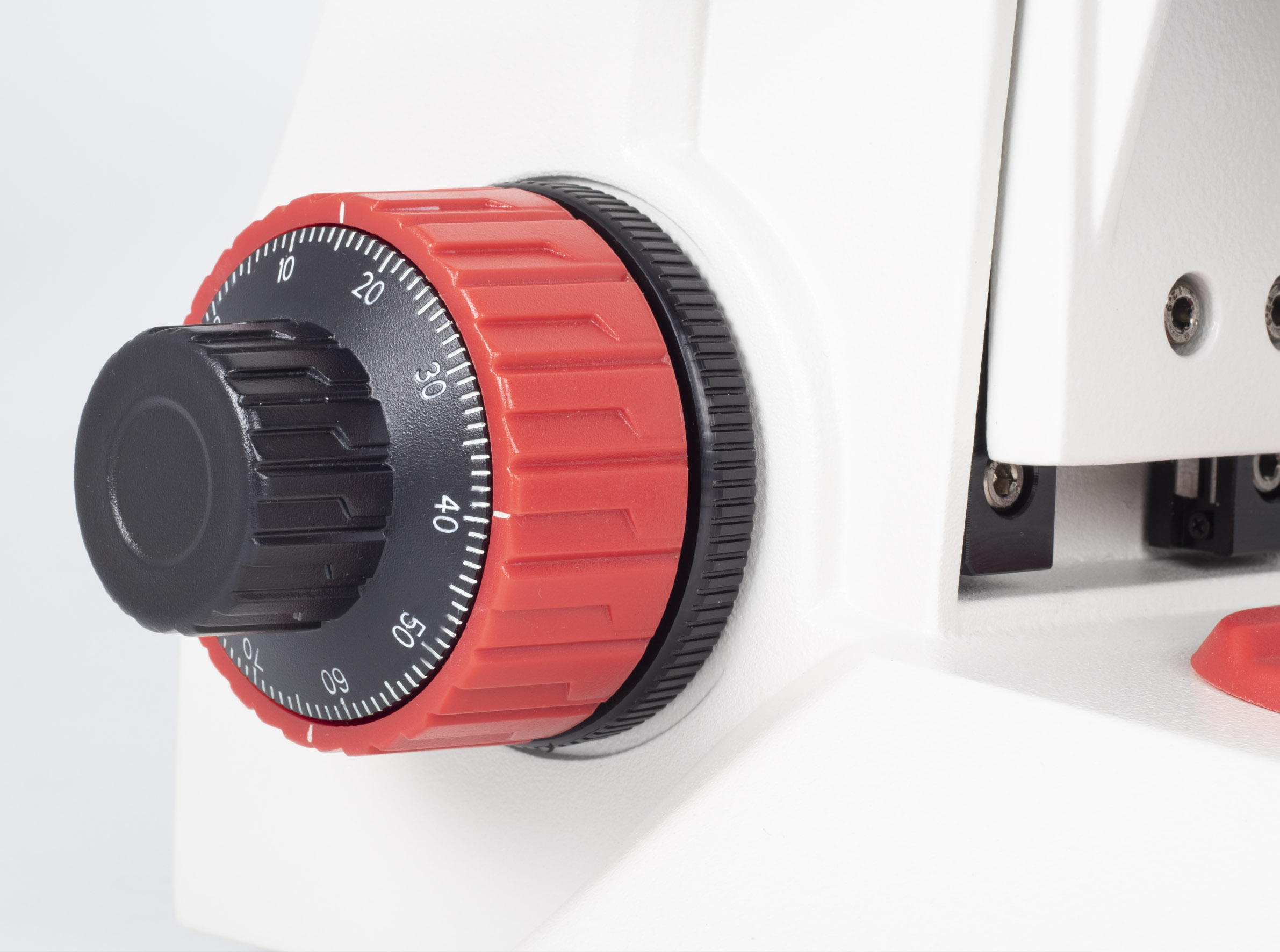

Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 13mm
Upper limit stop Upper limit stop preset but adjustable
Filter Built-in frosted glass
Transmitted illumination LED 3W with intensity control
Transformer Internal
Power supply 220V (CE)
Accessories included Dust cover, immersion oil (5ml)
Dimensions LxWxH 260x175x354mm
Weight Net 5.7kg
Contrast techniques
Standard contrast technique Brightfield
Polarization Optional add-on

Catalogues

  • RED Line - Catalogue File size: 1.36 MB
    Language: English

Specification sheets

  • RED220 - SpecSheet File size: --

Images

RED220 - IMG
Download
RED220 - DETAIL1 - IMG
Download
RED220 - DETAIL2 - IMG
Download
RED220 - DETAIL3 - IMG
Download
RED220 - DETAIL4 - IMG
Download
RED200 Series - IMG
Download

Instructions

  • RED200 Series - User Manual File size: --

Guides

  • Basic microscopy concepts. Resolution and magnification - Guide File size: 410.11 KB
    Language: English
  • Basic microscopy concepts. Parfocality adjustment for upright microscopes - Guide File size: 330.83 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English
  • Safety recommendations. How to ensure a clean school microscope - Guide File size: --

RED LINE presentation | by Motic Europe

The Motic Red Line is a family of reliable and easy to use upright and stereo microscopes, specially designed for the educational field. Some of their features to stand out are the LED illumination a practical carrying handle, rough mechanics as well as good quality optics.

How to adjust the tension of the focusing system (ring). E.g. AE Series | by Motic Europe

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. Valid for: BA Series / AE Series / RED200 Series / SWIFT200 Series / B1 ELITE Series / B3 Series / 28 Series / BA50&80 Series / RED130, 131 and 132 models / SWIFT130X and 132 models.
