PM-1823

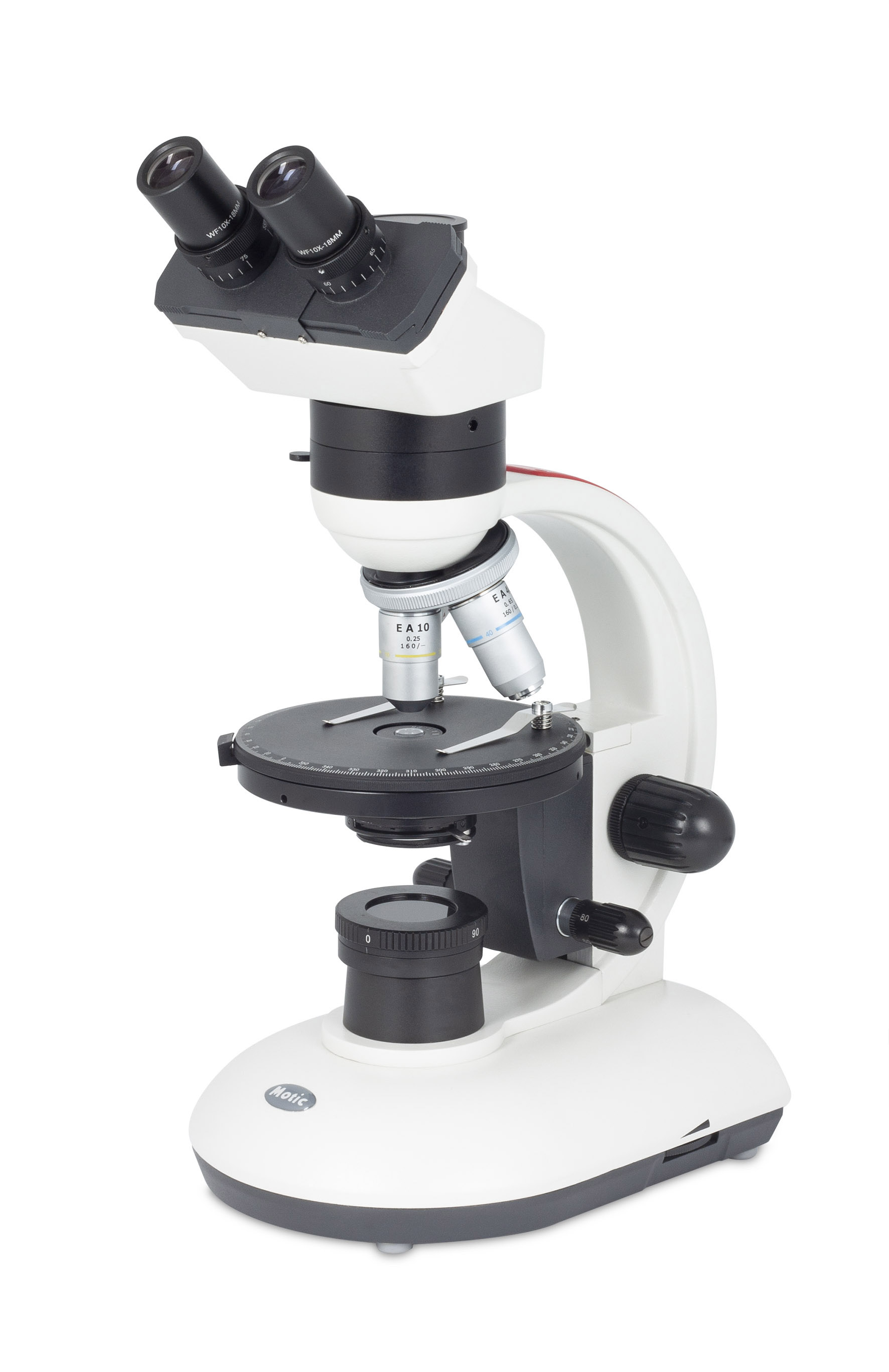

A Trinocular Polarization microscope for beginners. Thin-sections of minerals and rocks, fibres and foils, even botanical samples: With its 360° rotatable stage, this microscope exceeds the simple Pol contrast of a biological microscope in terms of a precise detection of birefringence. Documentation is facilitated by the photo port with fixed 50:50 light split.
Product code
1100102201161
Availability: In stock
694.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Specifications
Model PM-1823

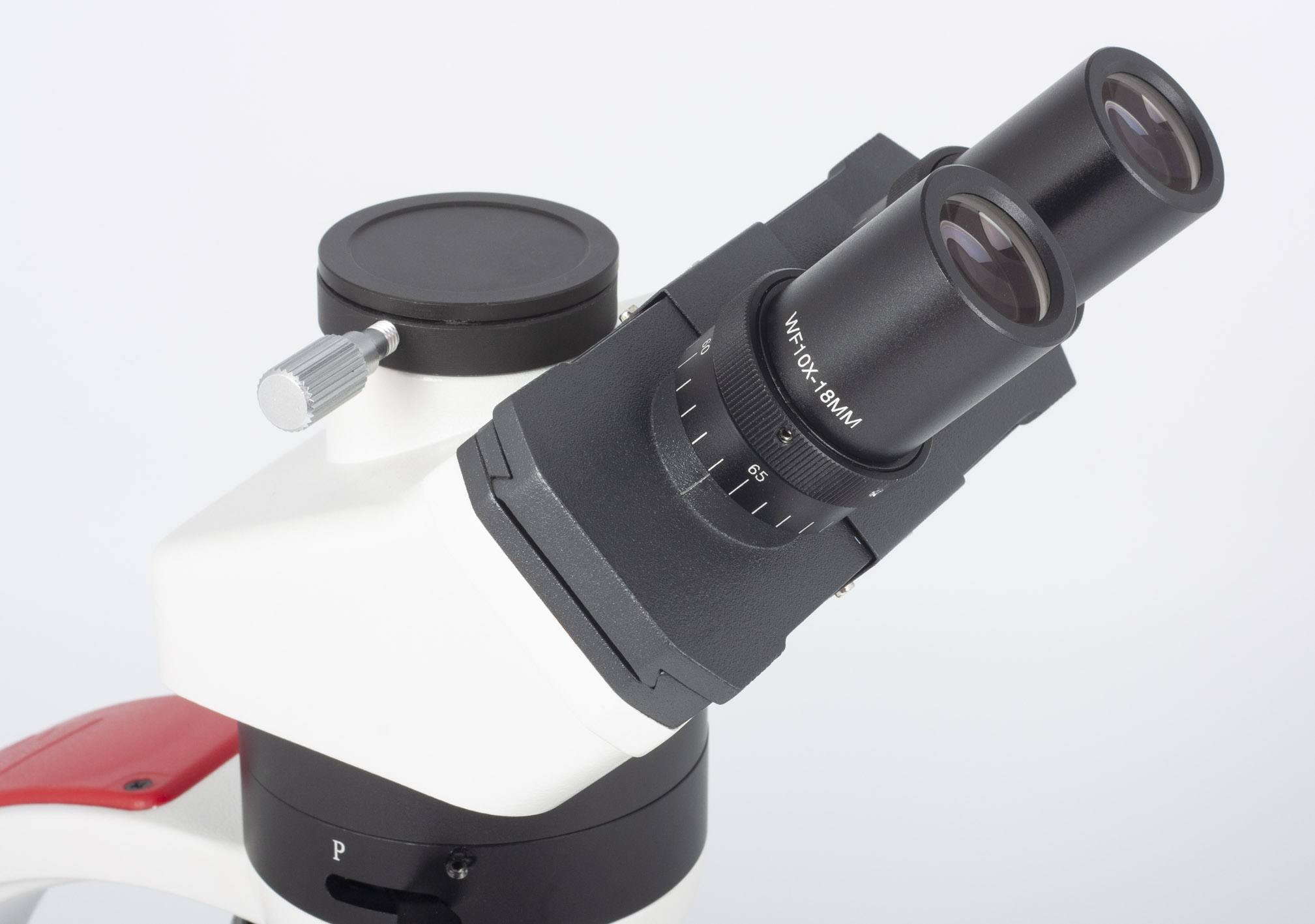

Observation tube Trinocular head, sliding type
Optical system Finite optical system, 160mm
Inclination 45º inclined, 360º rotating
Trinocular light split Fixed 50:50
Interpupillary distance 55-75mm
Diopter adjustment On both tubes, +/- 5 diopter
Eyepieces Widefield WF10X/18mm with plain cross hair reticule
Nosepiece Reversed quadruple
Objective classification EA Achromatic, DIN

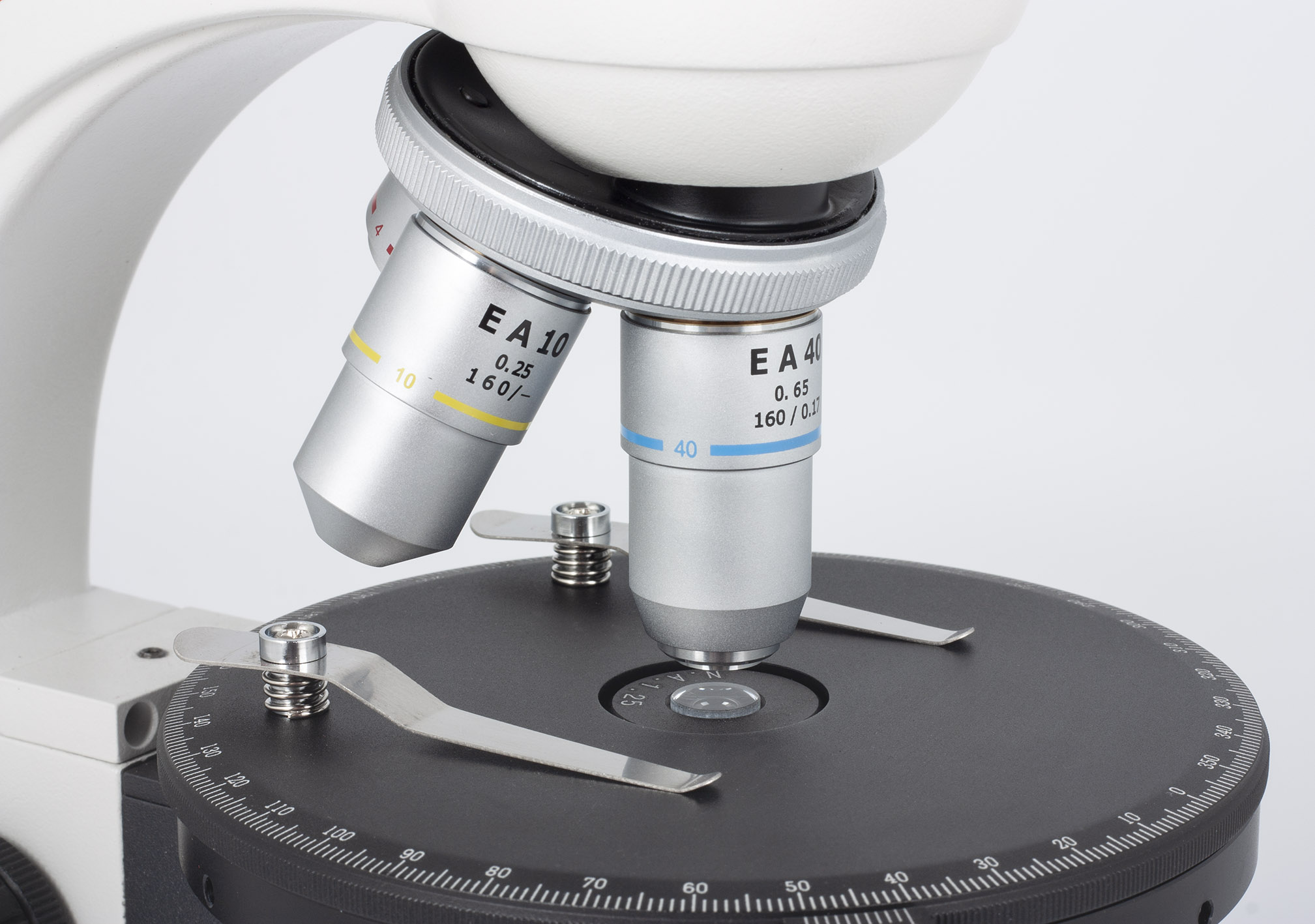

Objectives 4X/0.10 (WD 27mm), 10X/0.25 (WD 5mm), 40X/0.65/S (WD 0.3mm)
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright

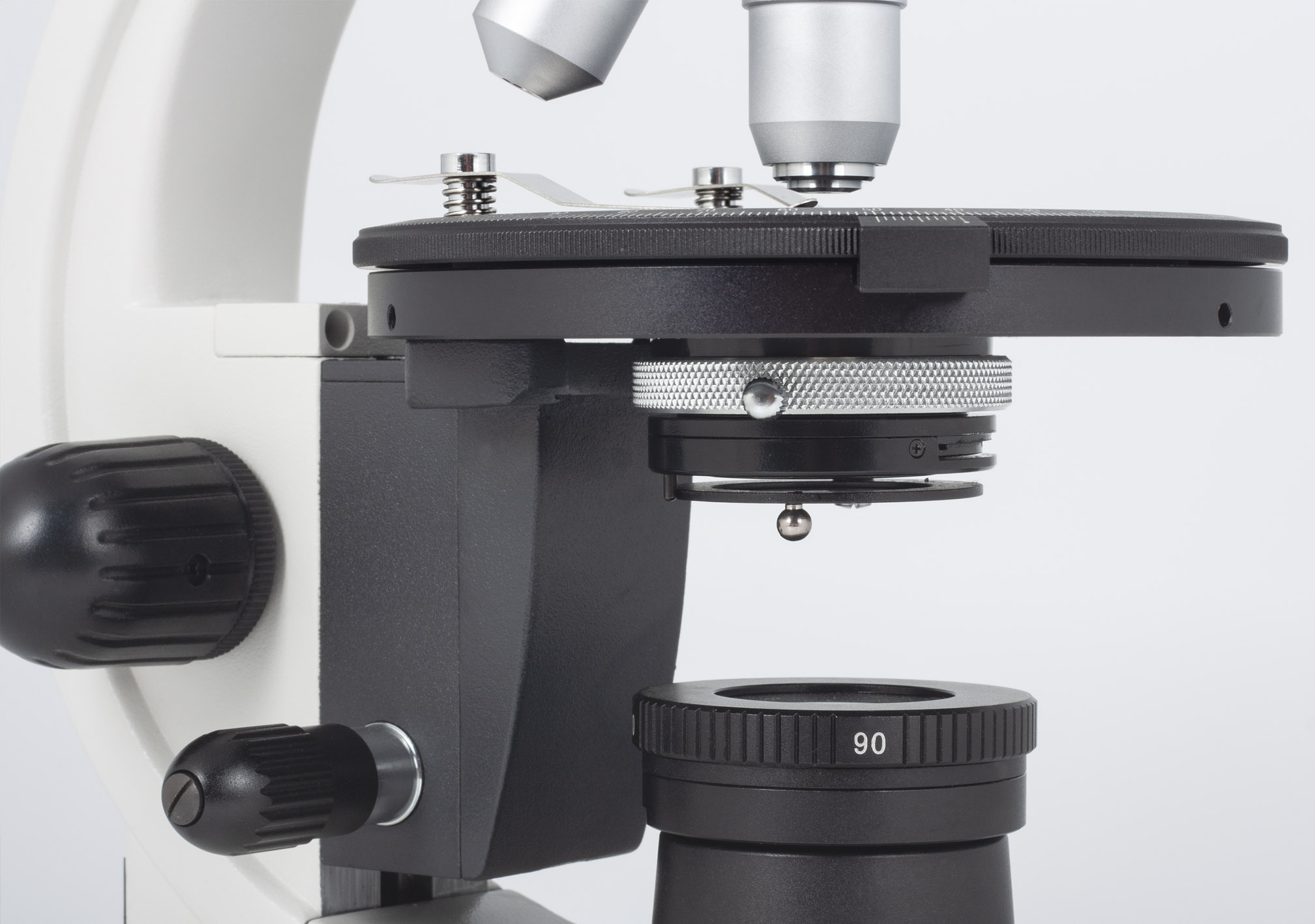

Stage Circular rotating 360º with stage clips
Stage size Ø135mm
Travel range X&Y 1º increments, 0,1º vernier scale
Condenser Focusable Abbe condenser N.A. 1.25
Diaphragm Iris diaphragm
Focus mechanism Separate coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 18mm
Upper limit stop Upper limit stop preset but adjustable
Transmitted illumination Halogen 12V/20W with intensity control

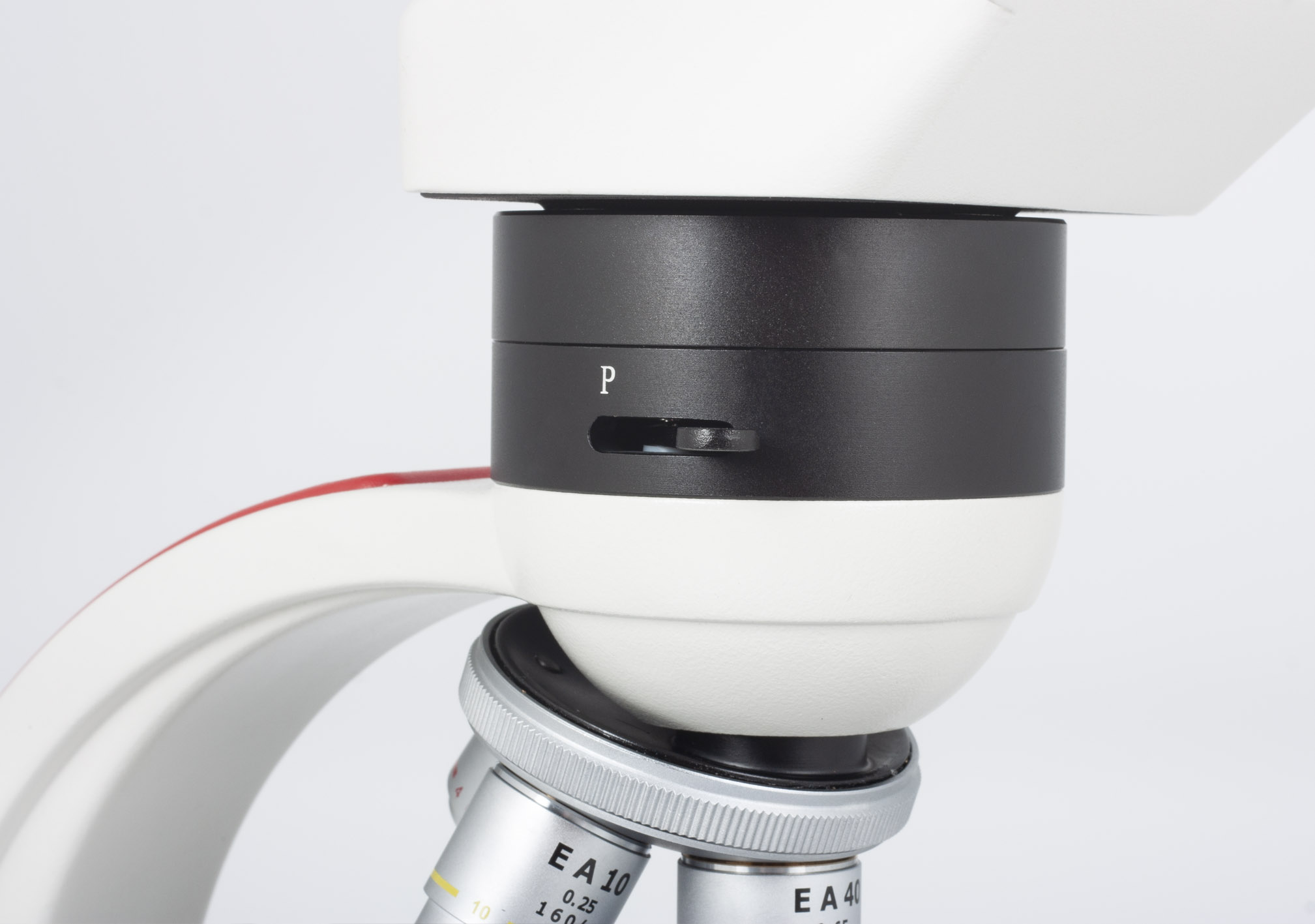

Illumination features Swing-in/out polarizer, rotating 360º
Transformer Internal
Power supply 220-240V (CE)
Accessories included Dust cover, Allen key, blue filter
Dimensions LxWxH 220x172x372mm
Weight Net 4.8kg
Contrast techniques
Standard contrast technique Brightfield, polarizing
Polarization Swing in/out
