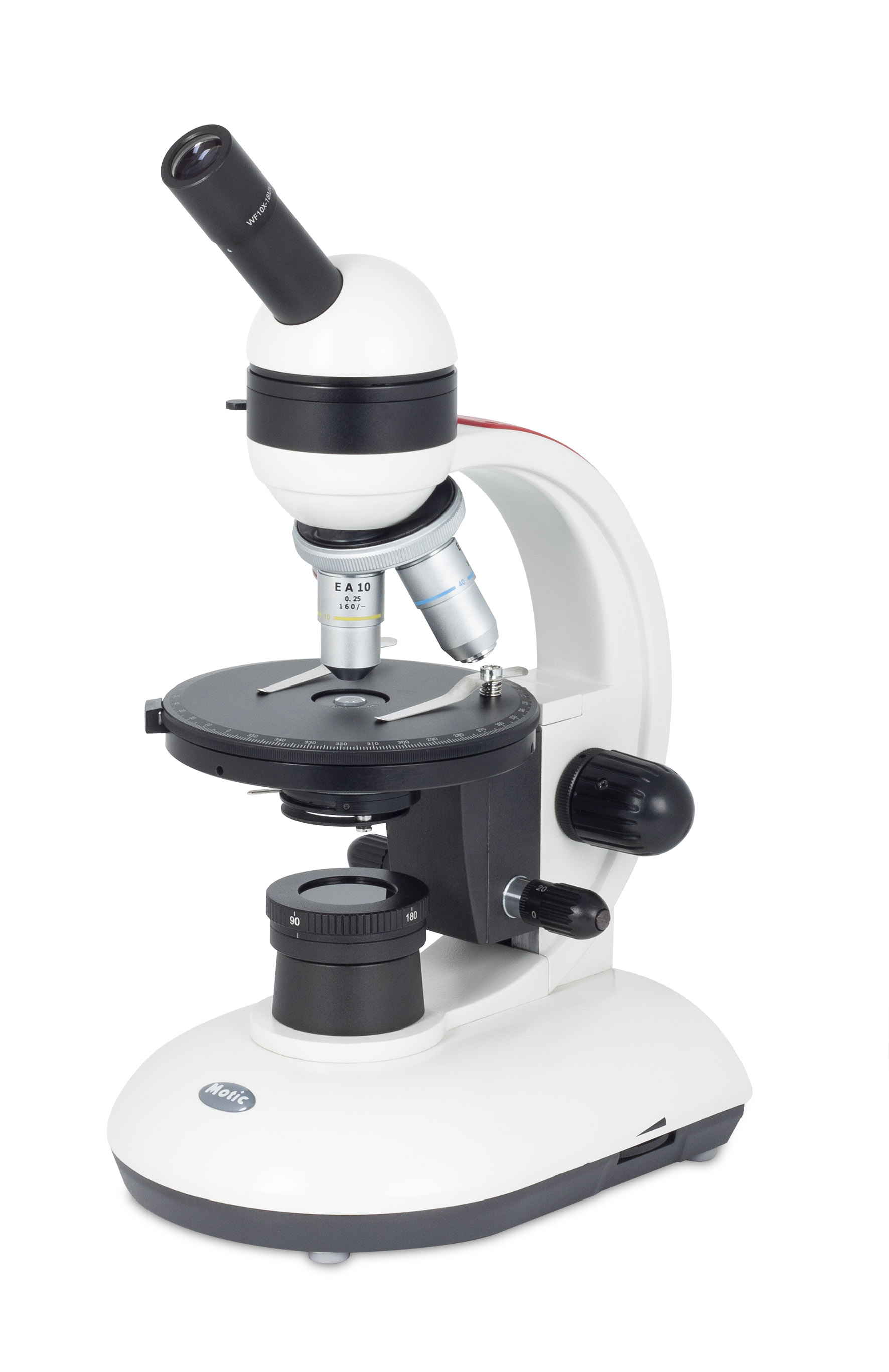

PM-1805

A monocular Polarization microscope for beginners. Thin-sections of minerals and rocks, fibres and foils, even botanical samples: With its 360° rotatable stage, this microscope exceeds the simple Pol contrast of a biological microscope in terms of a precise detection of birefringence.
Product code
1100102200632
Availability: Out of stock
400.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes.
Specifications
Model PM-1805
Observation tube Monocular head
Optical system Finite optical system, 160mm
Inclination 45º inclined, 360º rotating

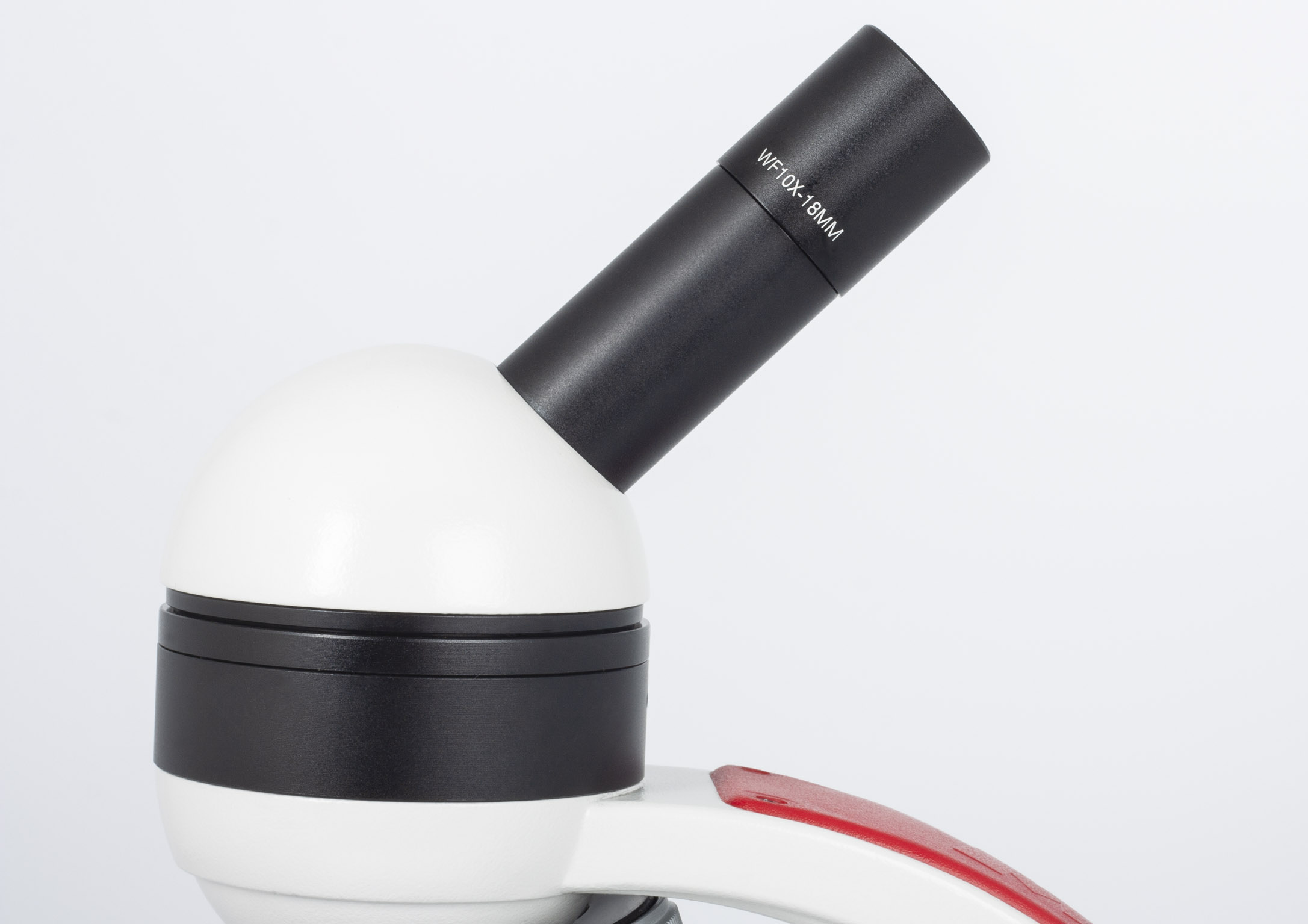

Eyepieces Widefield WF10X/18mm with plain cross hair reticule
Nosepiece Reversed quadruple
Objective classification EA Achromatic, DIN

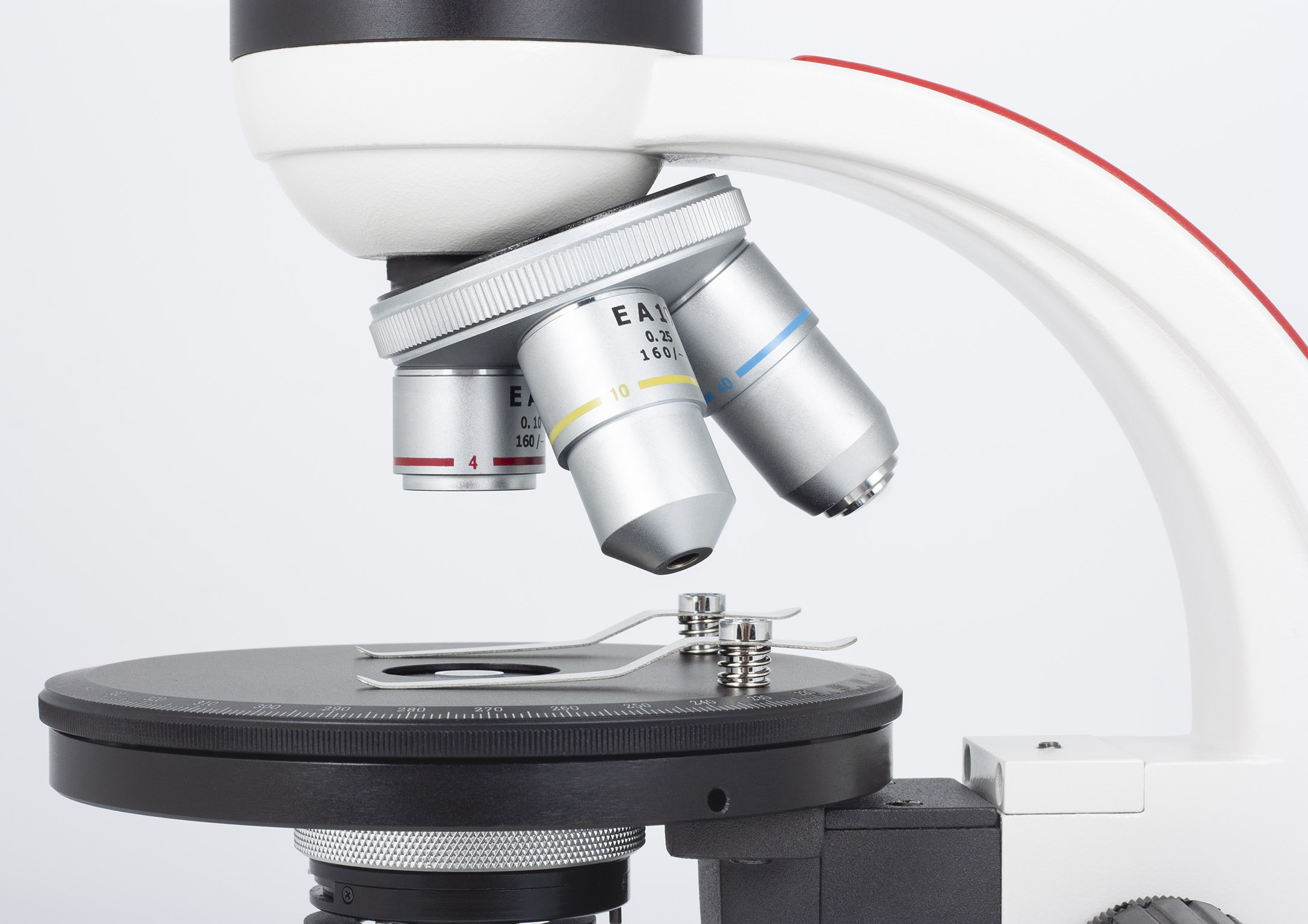

Objectives 4X/0.10 (WD 27mm), 10X/0.25 (WD 5mm), 40X/0.65/S (WD 0.3mm)
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright

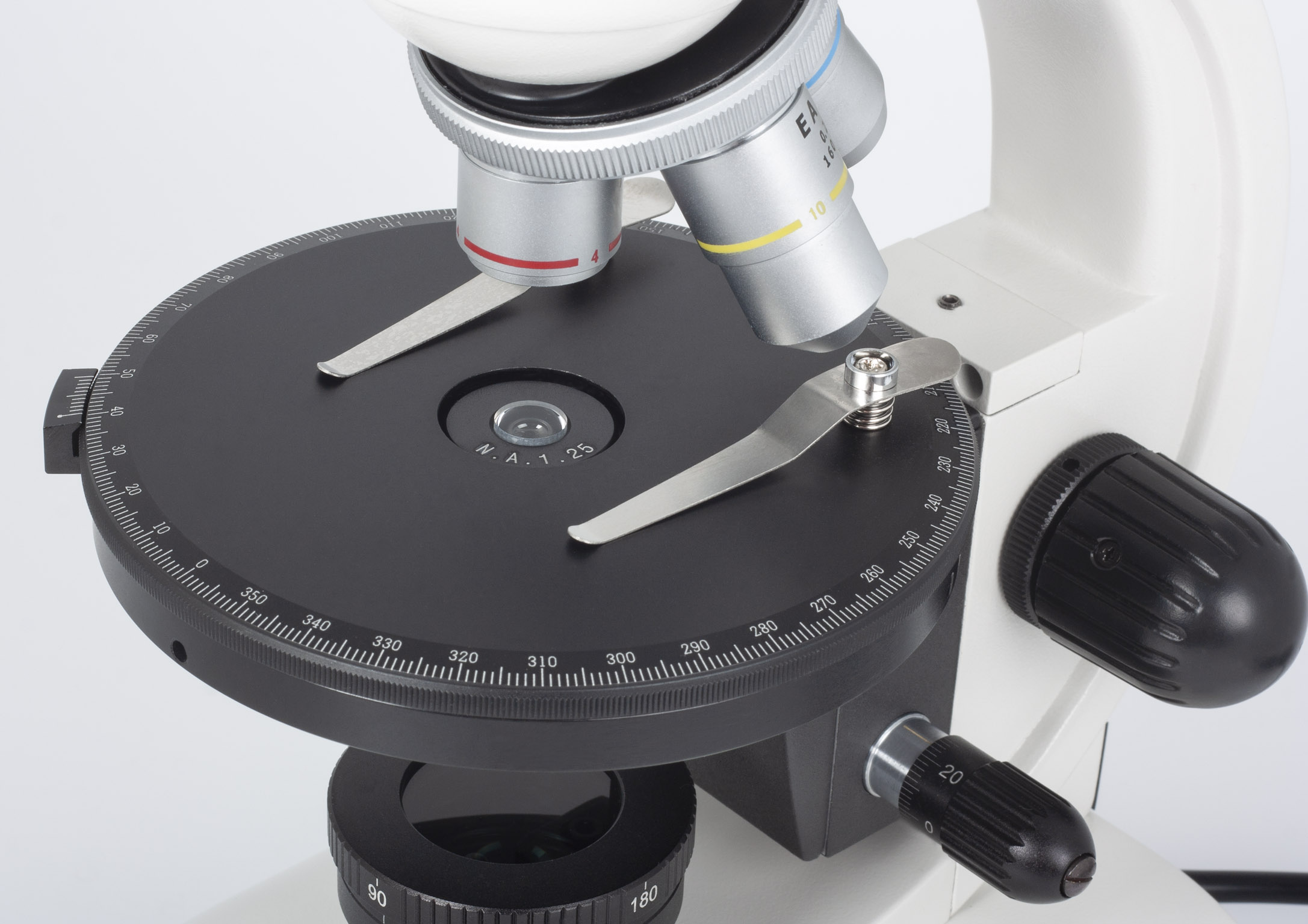

Stage Circular rotating 360º with stage clips
Stage size Ø135mm
Travel range X&Y 1º increments, 0,1º vernier scale
Condenser Focusable Abbe condenser N.A. 1.25
Diaphragm Iris diaphragm
Focus mechanism Separate coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 18mm
Upper limit stop Upper limit stop preset but adjustable
Transmitted illumination Halogen 12V/20W with intensity control

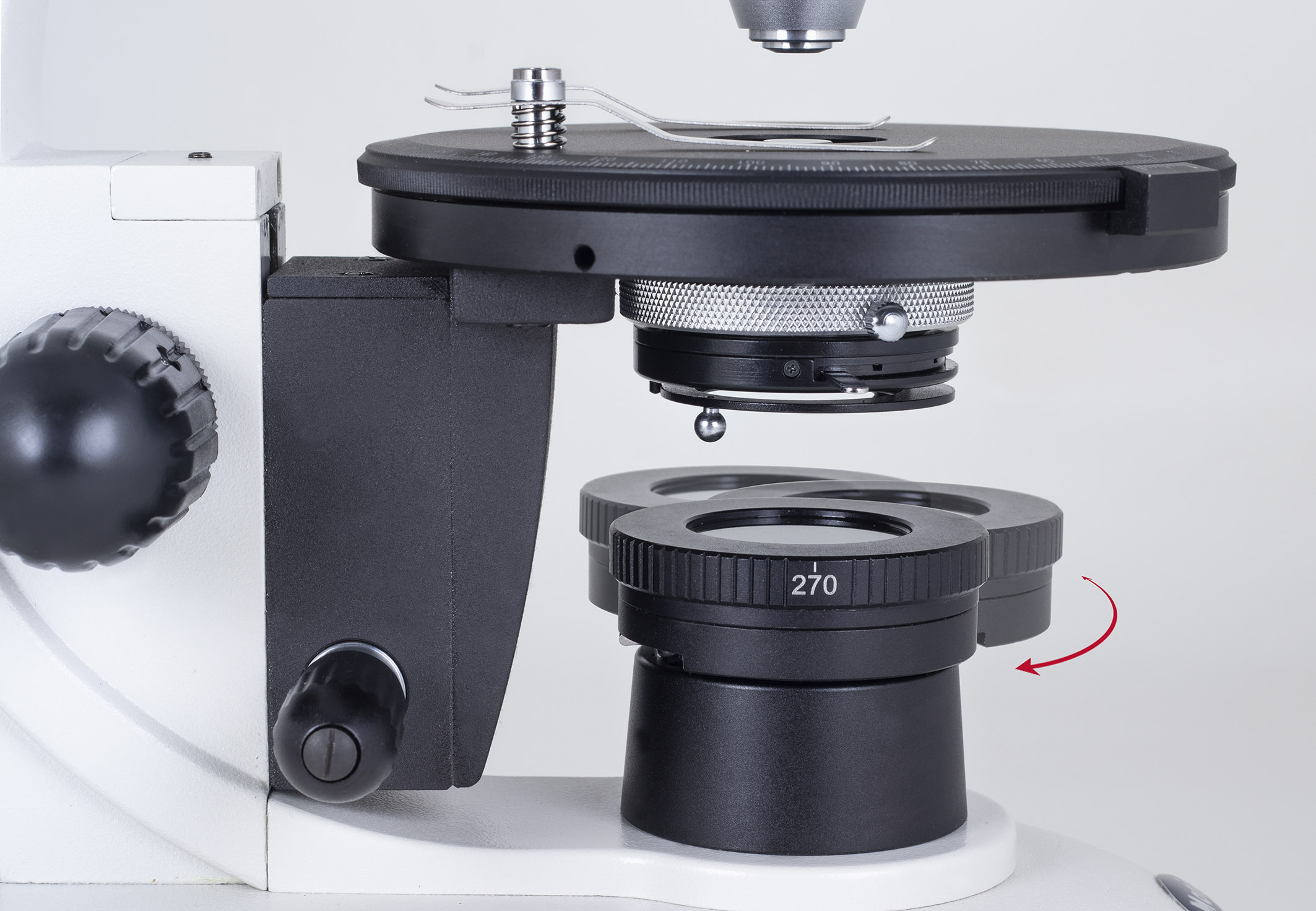

Illumination features Swing-in/out polarizer, rotating 360º
Transformer Internal
Power supply 220-240V (CE)
Accessories included Dust cover, Allen key, blue filter
Dimensions LxWxH 220x172x372mm
Weight Net 4.6kg
Contrast techniques
Standard contrast technique Brightfield, polarizing
Polarization Swing in/out

Catalogues

  • 18, 28, PM - Catalogue File size: --

Specification sheets

  • PM-1805 - SpecSheet File size: --

Images

PM-1805 - IMG
Download
PM-1805 - DETAIL1 - IMG
Download
PM-1805 - DETAIL2 - IMG
Download
PM-1805 - DETAIL3 - IMG
Download
PM Series - IMG
Download

Instructions

  • PM Series - User Manual File size: --

Guides

  • Basic microscopy concepts. Resolution and magnification - Guide File size: 410.11 KB
    Language: English
  • Basic microscopy concepts. Parfocality adjustment for upright microscopes - Guide File size: 353.65 KB
    Language: English
  • Basic microscopy concepts. Magnification on screen - Guide File size: 330.69 KB
    Language: English
  • Basic microscopy concepts. Understanding the Field of view - Guide File size: 285.41 KB
    Language: English

How to adjust the tension of the focusing system (allen key). E.g. 1802 LED | by Motic Europe

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. For models with Allen key. Valid for: 18 Series. #MoticHowTo #MoticEurope #Motic Know more about the 18 Series Biological microscopes at: http://www.moticeurope.com/product/education/education-line/18-28-series/
