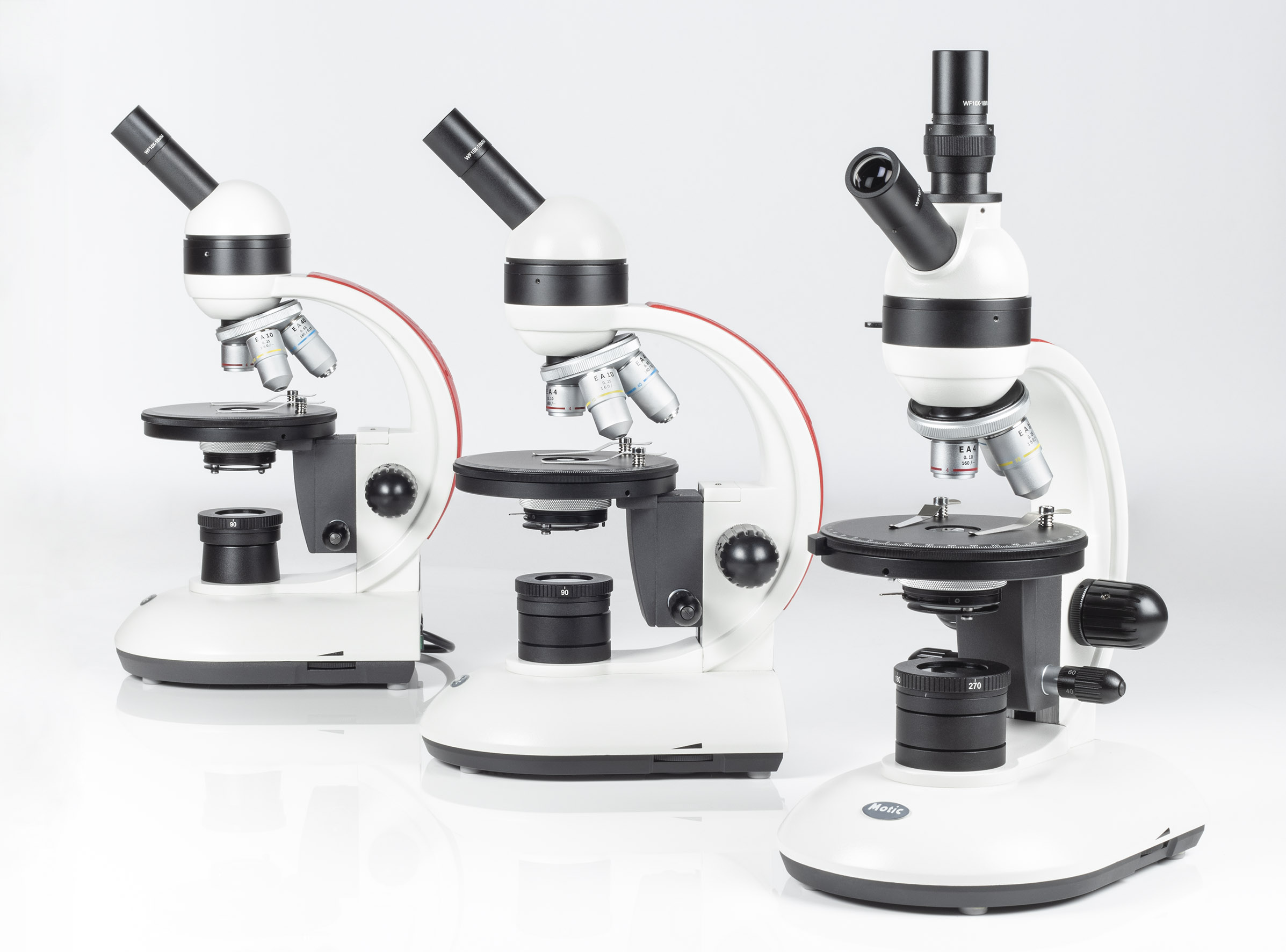

PM Series >
Know more about this Series

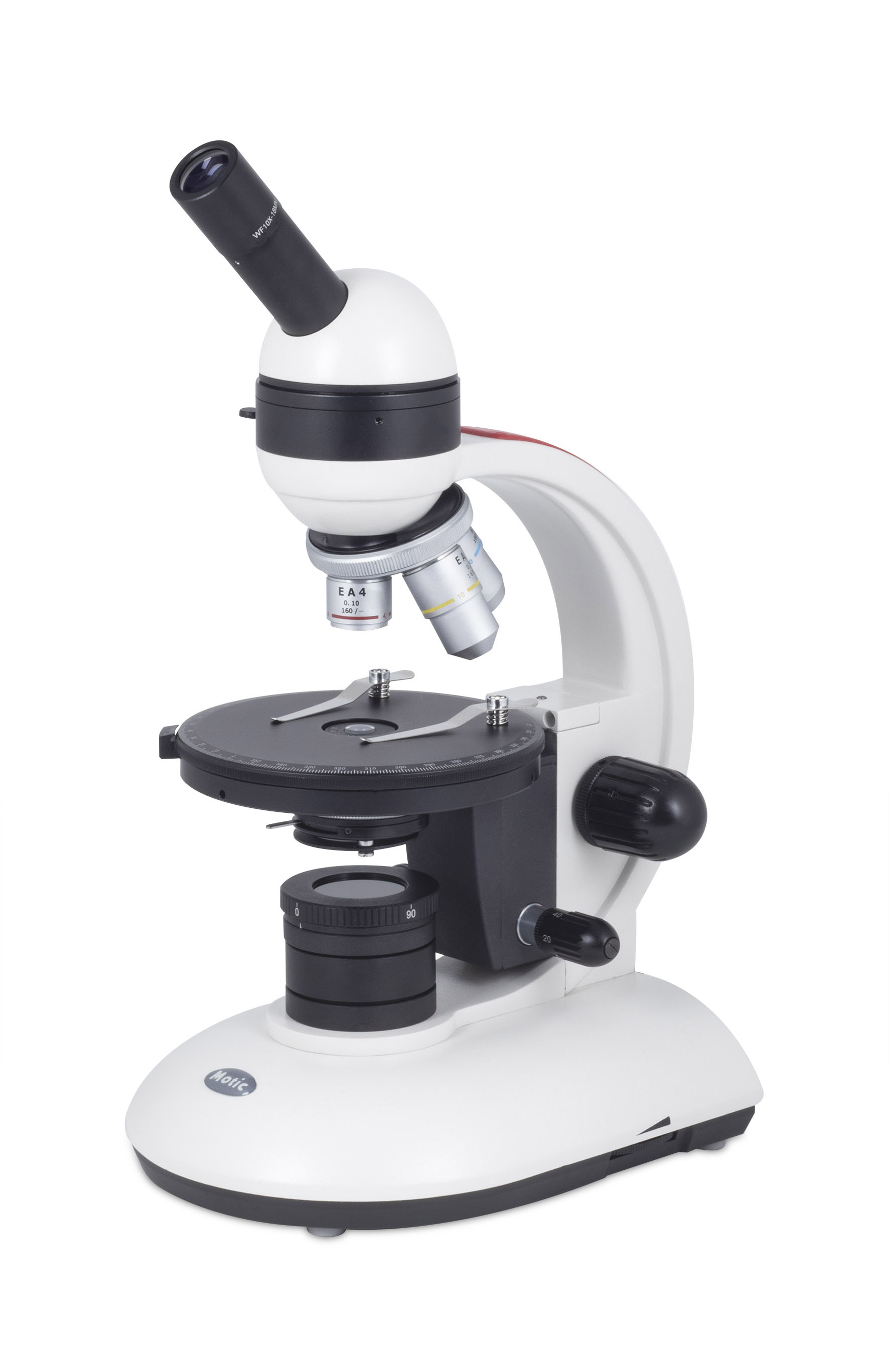

PM-1805 LED Cordless
A monocular Polarization microscope with LED illumination for beginners. Thin-sections of minerals and rocks, fibres and foils, even botanical samples: With its 360° rotatable stage, this microscope exceeds the simple Pol contrast of a biological microscope in terms of a precise detection of birefringence.
A monocular Polarization microscope with LED illumination for beginners. Thin-sections of minerals and rocks, fibres and foils, even botanical samples: With its 360° rotatable stage, this microscope exceeds the simple Pol contrast of a biological microscope in terms of a precise detection of birefringence. View Less
Product code
1100102201174
491.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Add to Wish List
Add to Compare
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.

PM-1805 LED Cordless
PM Series
A monocular Polarization microscope with LED illumination for beginners. Thin-sections of minerals and rocks, fibres and foils, even botanical samples: With its 360° rotatable stage, this microscope exceeds the simple Pol contrast of a biological microscope in terms of a precise detection of birefringence.
1100102201174
Thank you for your interest in this product line.
For us to help you find the best solution for your application field,
please fill out the following form and a Motic Europe team member will get in contact with you soon.
Model | PM-1805 LED Cordless |
---|---|
Observation tube | Monocular head |
Optical system | Finite optical system, 160mm |
Inclination | 45º inclined, 360º rotating |
Eyepieces | Widefield WF10X/18mm with plain cross hair reticule |

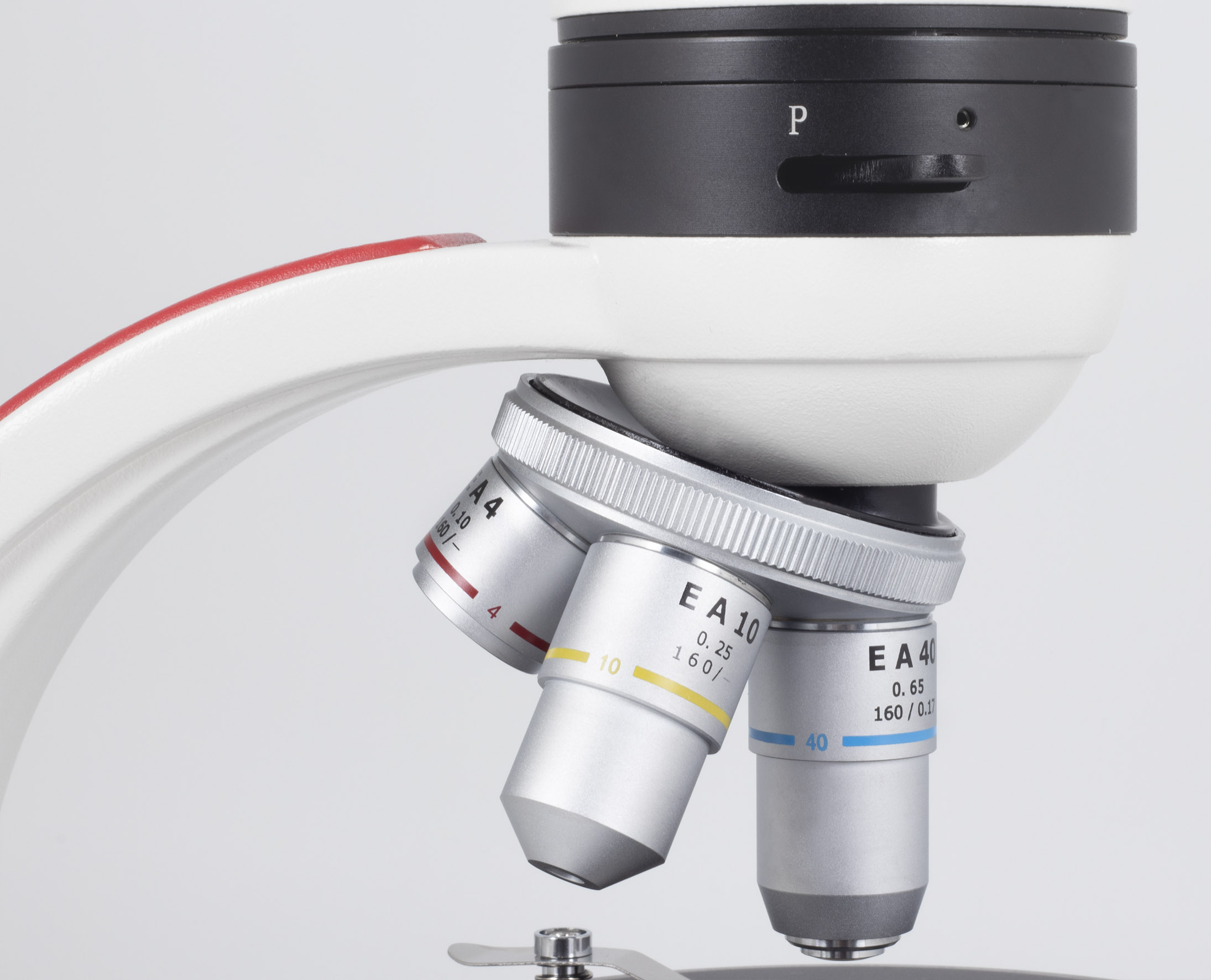

Intermediate body | Swing-in/out analyzer |
Nosepiece | Reversed quadruple |
Objective classification | EA Achromatic, DIN |

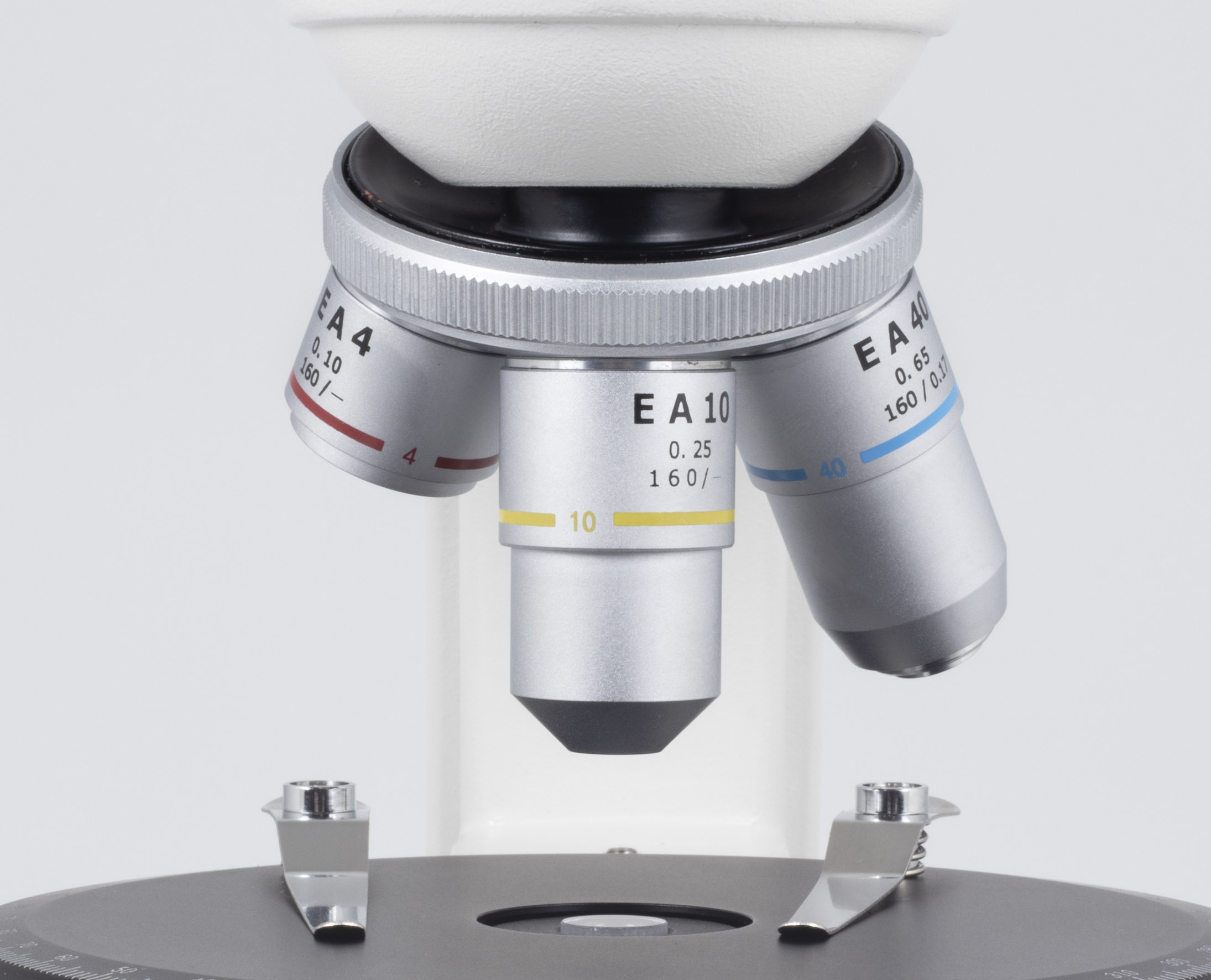

Objectives | 4X/0.10 (WD 27mm), 10X/0.25 (WD 5mm), 40X/0.65/S (WD 0.3mm) |
Objective mounting thread | W 4/5"x1/36" (RMS standard) |
Stand type | Upright |
Stage | Circular rotating 360º with stage clips |
Stage size | Ø135mm |
Travel range X&Y | 1º increments, 0,1º vernier scale |

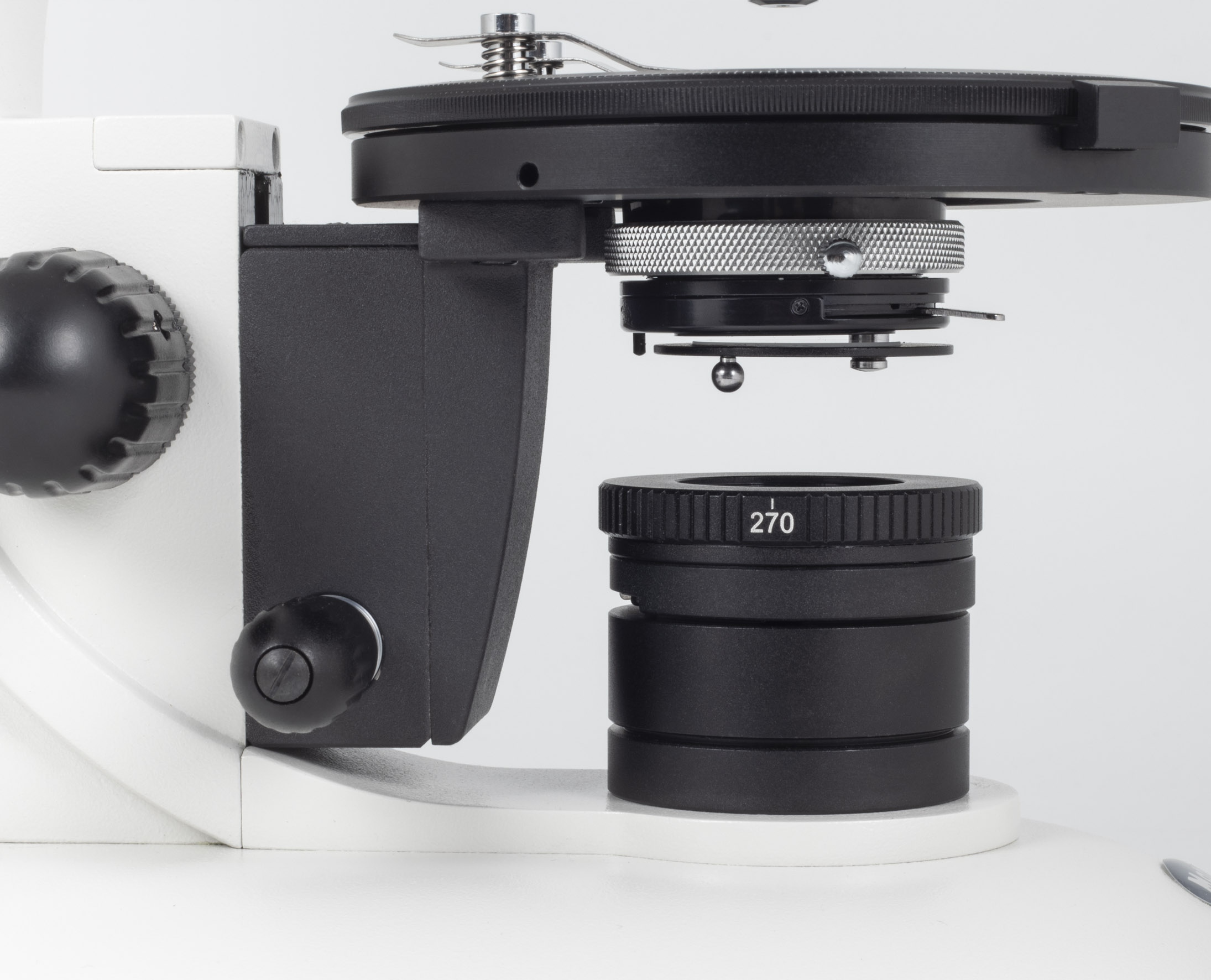

Condenser | Focusable Abbe condenser N.A. 1.25 |
Diaphragm | Iris diaphragm |
Focus mechanism | Separate coarse and fine focusing system with tension adjustment |
Fine focus precision | 2µm |
Focusing stroke | 18mm |
Upper limit stop | Upper limit stop preset but adjustable |
Transmitted illumination | LED 3W (3000-3500K) with intensity control |

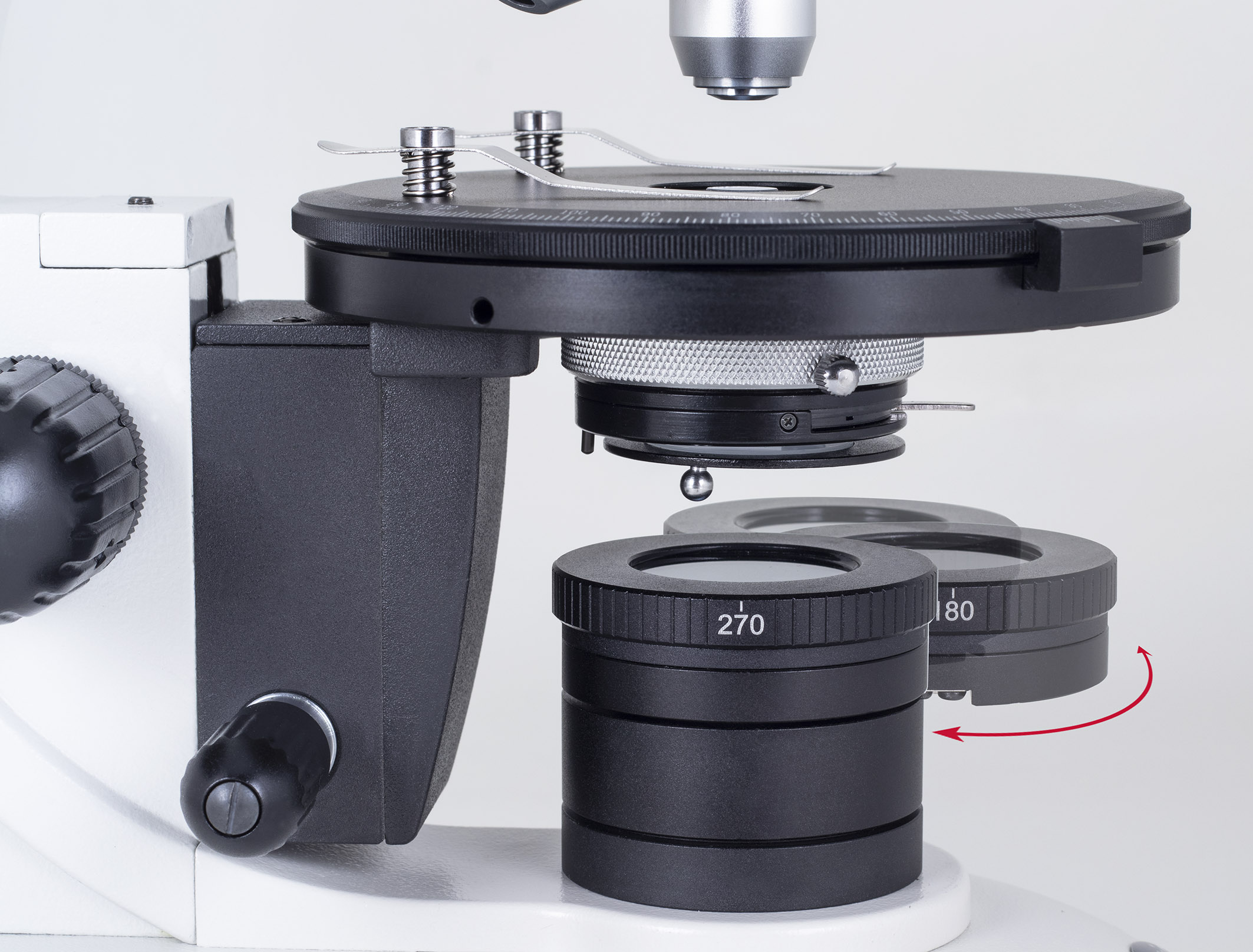

Illumination features | Swing-in/out polarizer, rotating 360º |
Transformer | External |
Power supply | Charger 100-220V or rechargeable batteries (CE) |
Accessories included | Dust cover, charger, batteries |
Dimensions LxWxH | 220x172x372mm |
Weight Net | 4.6kg |
Contrast techniques | |
Standard contrast technique | Brightfield, polarizing |
Polarization | Swing in/out |
