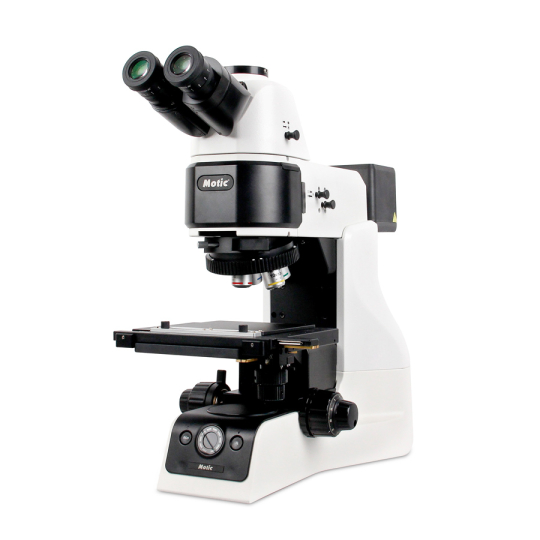

PA53 MET LED
The PA53 MET Series are superior solutions for industrial quality control and analysis of opaque materials. Crisp and clear images are guaranteed thanks to the newly designed Semi-Apochromatic Brightfield objectives. The eyepieces have a 25mm FOV, ahead of any standard. The powerful 10W LED illumination features the ECO Function, a power-saving mode. The quintuple coded... View More
Product code
1100104600851
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | PA53 MET LED |
|---|---|
| Observation tube | Trinocular head, Siedentopf type |
| Optical system | Colour Corrected Infinity Optical System(CCIS®) |
| Inclination | 20° inclined |
| Trinocular light split | 100:0/0:100 erect image |
| Interpupillary distance | 50-75mm |
| Diopter adjustment | On both eyepieces, +/- 4 diopter |
| Eyepieces | Widefield WF10X/25mm with diopter adjustment |
| Intermediate body | Epi-illuminator LED 10W with integrated field and aperture diaphragms, slots for filters, filters ND6, LBD and BF module |
| Nosepiece | Reversed quintuple, coded for brightfield objectives with DIC slot |
| Objective classification | CCIS® Plan S-Apochromatic BF |
| Objectives | 5X/0.15 (WD 18.75mm), 10X/0.3 (WD 12mm), 20X/0.45 (WD 2.35mm), 50X/0.8 (WD 1mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage, hard coated with built-in low position coaxial stage control & metal stage plate |
| Stage size | 210x170mm |
| Travel range X&Y | 104x102mm (4"x4") |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 1µm |
| Focusing stroke | 29.5mm - Coarse:17.7mm/revolution - Fine: 0.1mm revolution (1µm scale) |
| Upper limit stop | Upper limit stop preset but adjustable |
| Incident illumination | Köhler LED 10W for BF, DIC, POL with intensity control |
| Illumination features | Power saving mode ECO function, LED voltage indicator and Intelligent Light function |
| Software | Analysis Basic - USB and dongle |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Dimensions LxWxH | 572x246x514 |
| Weight Net | 19kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional slider reflected |
| Modulation contrast | Optional slider reflected |
| Fluorescence | Optional reflected MET-FL body & Lumos LED |
| Model | PA53 MET LED |
|---|---|
| Observation tube | Trinocular head, Siedentopf type |
| Optical system | Colour Corrected Infinity Optical System(CCIS®) |
| Inclination | 20° inclined |
| Trinocular light split | 100:0/0:100 erect image |
| Interpupillary distance | 50-75mm |
| Diopter adjustment | On both eyepieces, +/- 4 diopter |
| Eyepieces | Widefield WF10X/25mm with diopter adjustment |
| Intermediate body | Epi-illuminator LED 10W with integrated field and aperture diaphragms, slots for filters, filters ND6, LBD and BF module |
| Nosepiece | Reversed quintuple, coded for brightfield objectives with DIC slot |
| Objective classification | CCIS® Plan S-Apochromatic BF |
| Objectives | 5X/0.15 (WD 18.75mm), 10X/0.3 (WD 12mm), 20X/0.45 (WD 2.35mm), 50X/0.8 (WD 1mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage, hard coated with built-in low position coaxial stage control & metal stage plate |
| Stage size | 210x170mm |
| Travel range X&Y | 104x102mm (4"x4") |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 1µm |
| Focusing stroke | 29.5mm - Coarse:17.7mm/revolution - Fine: 0.1mm revolution (1µm scale) |
| Upper limit stop | Upper limit stop preset but adjustable |
| Incident illumination | Köhler LED 10W for BF, DIC, POL with intensity control |
| Illumination features | Power saving mode ECO function, LED voltage indicator and Intelligent Light function |
| Software | Analysis Basic - USB and dongle |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Dimensions LxWxH | 572x246x514 |
| Weight Net | 19kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional slider reflected |
| Modulation contrast | Optional slider reflected |
| Fluorescence | Optional reflected MET-FL body & Lumos LED |
>
