PA53 BIO Series > Know more about this Series

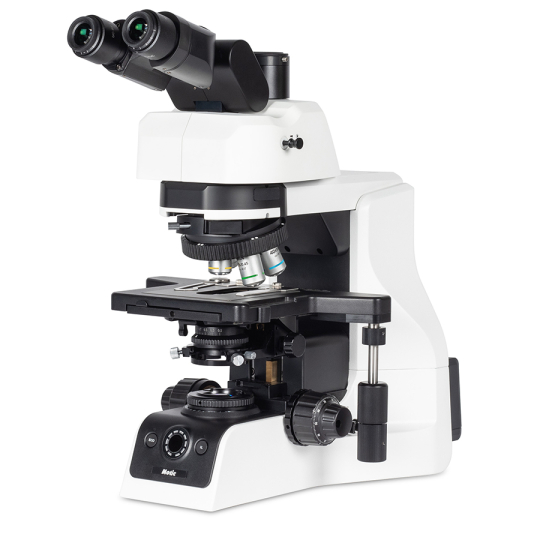

PA53 BIO Pathology

The PA53 BIO Pathology upright laboratory microscope is designed for professionals who require precision, flexibility, and comfort in their research. Built with state-of-the-art optics, an ergonomic design, and intuitive controls, this microscope ensures an optimized workflow for hospitals, research facilities, and life science laboratories. This model features an ergonomic... View More
Product code
1200104600944
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Specifications
Model PA53 BIO Pathology
Observation tube Tilting trinocular head, Siedentopf type
Optical system Colour Corrected Infinity Optical System (CCIS®)
Inclination 15º-45° inclined
Trinocular light split 100:0/20:80/0:100
Interpupillary distance 55-75mm
Diopter adjustment On both eyepieces, +/- 4 diopter
Eyepieces Widefield WF10X/23mm with diopter adjustment
Intermediate body Simple intermediate
Nosepiece Reversed sextuple, coded
Objective classification CCIS® UC Plan Achromatic (Pb free)
Objectives 2X/0.05 (WD 7.2mm), 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 20X/0.45 (WD 0.8mm), 40X/0.65/S (WD 0.6mm)
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright
Stage Stage with anti-abrasive surface, FL shutter, low coaxial telescopic position control, yet position and tension adjustable
Stage size 320x170 mm
Travel range X&Y 80x52 mm
Condenser Focusable and centerable achromatic swing-out condenser N.A. 0.90/0.13
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 1µm
Focusing stroke 29.5mm - Coarse:17.7mm/revolution - Fine: 0.1mm revolution (1µm scale)
Upper limit stop Upper limit stop preset but adjustable
Filter ND6, ND25, LBD
Filter holder Integrated filters
Transmitted illumination LED 10W with intensity control
Illumination features Power saving mode ECO function, LED voltage indicator and Intelligent Light function
Transformer Internal
Power supply 110-240V (CE)
Accessories included Dust cover, power cord, Allen key
Dimensions LxWxH 576x247x457
Weight Net 19.2kg
Contrast techniques
Standard contrast technique Brightfield
Phase contrast Optional slider/turret
Polarization Optional add-on
Darkfield Optional slider/turret
Fluorescence Optional
