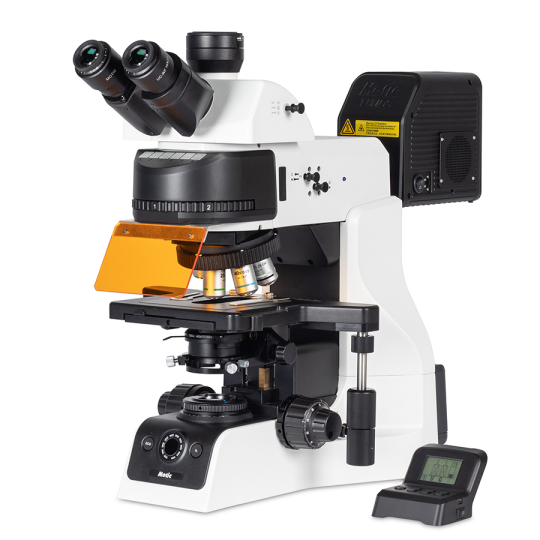

PA53 BIO FS6 EPIFLUO
Model | PA53 BIO FS6 EPIFLUO |
---|---|
Observation tube | Trinocular head, Siedentopf type |
Optical system | Colour Corrected Infinity Optical System (CCIS®) |
Inclination | 30° inclined |
Trinocular light split | 100:0/20:80/0:100 |
Interpupillary distance | 55-75mm |
Diopter adjustment | On both eyepieces, +/- 4 diopter |
Eyepieces | Widefield WF10X/23mm with diopter adjustment |
Intermediate body | Epi-Fluorescence illuminator LUMOS LED with 6 position coded fluorescence turret |
Nosepiece | Reversed sextuple, coded |
Objective classification | CCIS® UC Plan Achromatic (Pb free) |
Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 20X/0.45 (WD 0.8mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
Objective mounting thread | W 4/5"x1/36" (RMS standard) |
Stand type | Upright |
Stage | Stage with anti-abrasive surface, FL shutter, low coaxial telescopic position control, yet position and tension adjustable |
Stage size | 320x170 mm |
Travel range X&Y | 80x52 mm |
Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
Diaphragm | Iris diaphragm |
Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
Fine focus precision | 1µm |
Focusing stroke | 29.5mm - Coarse:17.7mm/revolution - Fine: 0.1mm revolution (1µm scale) |
Upper limit stop | Upper limit stop preset but adjustable |
Filter | ND6, ND25, LBD |
Filter holder | Integrated filters |
Incident illumination | LUMOS High-power LED FL light source |
Transmitted illumination | LED 10W with intensity control |
Illumination features | Power saving mode ECO function, LED voltage indicator and Intelligent Light function |
Transformer | Internal |
Power supply | 110-240V (CE) |
Other features | (*) Fluorescence filter sets not included |
Accessories included | Dust cover, power cord, Allen key, immersion oil (5ml) |
Dimensions LxWxH | 576x247x457 |
Weight Net | 24.2kg |
Contrast techniques | |
Standard contrast technique | Brightfield |
Phase contrast | Optional slider/turret |
Polarization | Optional add-on |
Darkfield | Optional slider/turret |
Fluorescence | LED |
