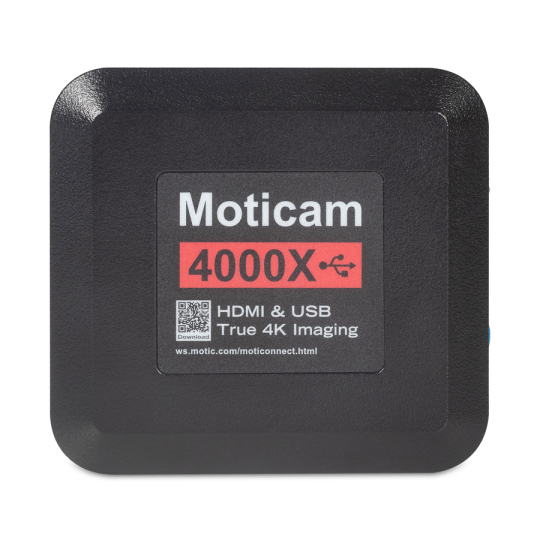

Moticam 4000X
The Moticam 4000X camera boasts on-board software, enabling you to operate it seamlessly with just a mouse and a screen - no computer needed. For added convenience, it offers both USB and Wi-Fi connectivity, allowing for flexible integration with your existing systems. Use the Wi-Fi connectivity to connect effortlessly with mobile devices such as tablets and smartphones, and... View More
Product code
1100600101641
1,290.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | Moticam 4000X |
|---|---|
| Sensor type | CMOS |
| Sensor size | 1/2.8" |
| Imaging area | 6.46 mm (diagonal) |
| Capture resolution info | 8MP (3840x2160 pixels) |
| Image capture resolution (on SD-card) | 8MP (3840x2160 pixels) |
| Video capture resolution (on SD-card) | 1080P (1920x1080 pixels) |
| Live display mode through USB | 4K (3840x2160 pixels) |
| Live display mode through Wi-Fi | 4K (3840x2160 pixels) |
| Live display mode through Ethernet | 4K (3840x2160 pixels) |
| Live display mode through HDMI | 4K (3840x2160 pixels) |
| Pixel size | 1.45x1.45μm |
| Scan mode | Progressive |
| Shutter mode | Rolling shutter |
| Data transfer | HDMI ,USB ,Wi-fi, Ethernet, MicroSD card |
| Max. frames per second (fps) | HDMI: 4K (3840x2160) @ 30 fps USB3.0:1920x1080@30fps, 3840X2160@25fps WIFI: 1920x1080@25fps, 3840X2160@12fps |
| Exposure time | 0.03ms ~ 1000ms |
| Operating temperature | From -10 to +50 Degrees Celsius non condensing |
| Sensitivity | 300mV with 1/30s |
| Slot | Micro SD Card |
| Buttons | On/Off |
| Support device | TWAIN and Direct Show Driver |
| Supported OS | Windows 7/8/10, MAC OSX, Linux or higher |
| Minimum computer requirements | Core2, 2.8GHz, RAM memory 8GB |
| Lens mount | C-Mount |
| Focusable lens | 12mm |
| Software | On-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher and MotiConnect App for iOS and Android |
| Functions | Including exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browse function |
| Power supply | 12V (External Power supply) |
| Package includes | CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1 |
| Other features | USB port for connecting a mouse to enable software control |
| Notes | (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. |
