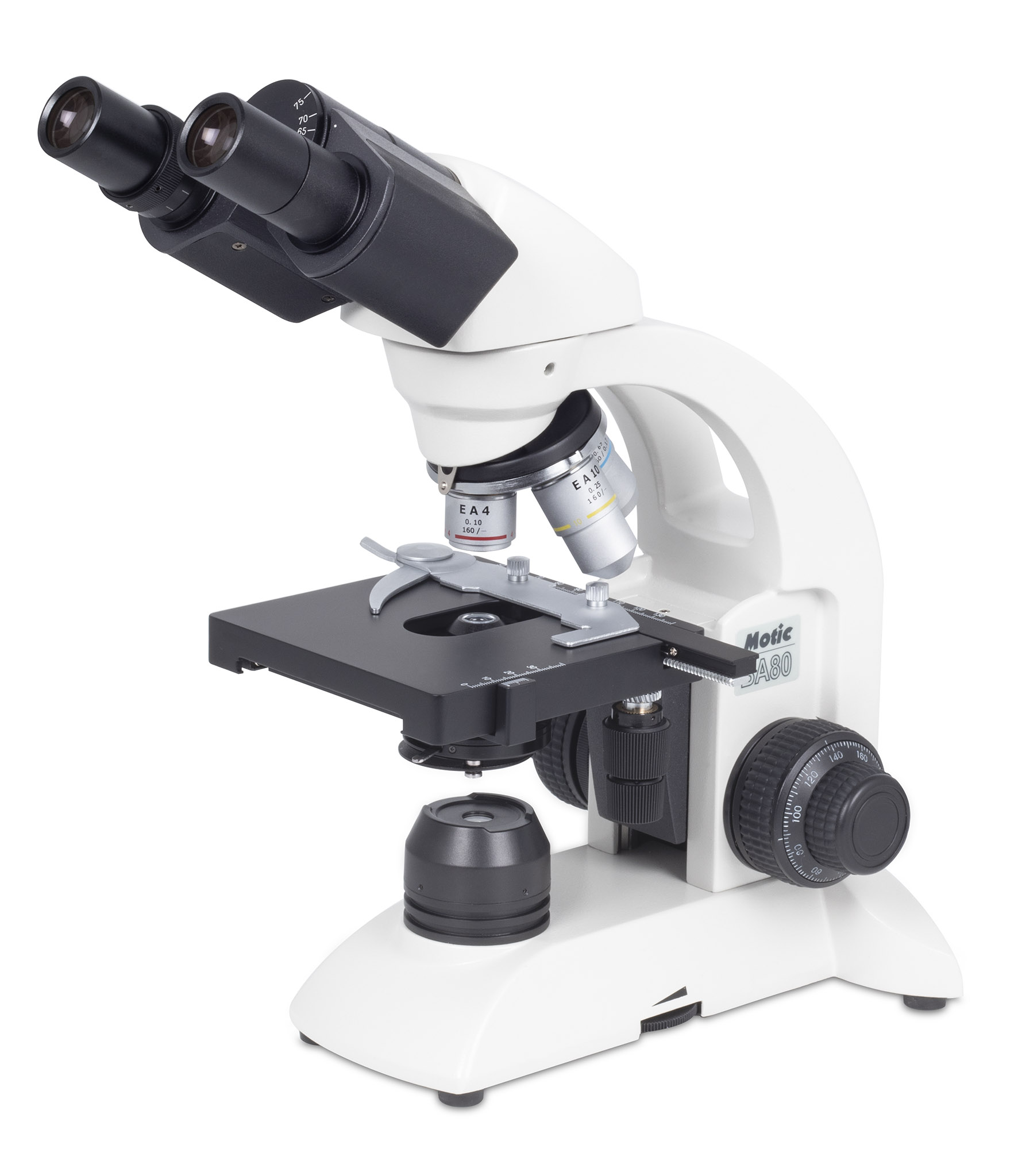

BA81B MS Corded

Model | BA81B MS Corded |
---|---|
Observation tube | Binocular head, Siedentopf type |
Optical system | Finite optical system, 160mm |
Inclination | 30º inclined, 360º rotating |
Interpupillary distance | 55-75mm |
Diopter adjustment | On left tube, +/- 5 diopter |
Eyepieces | Widefield WF10X/18mm with pointer |
Nosepiece | Reversed quadruple |
Objective classification | EA Achromatic, DIN |

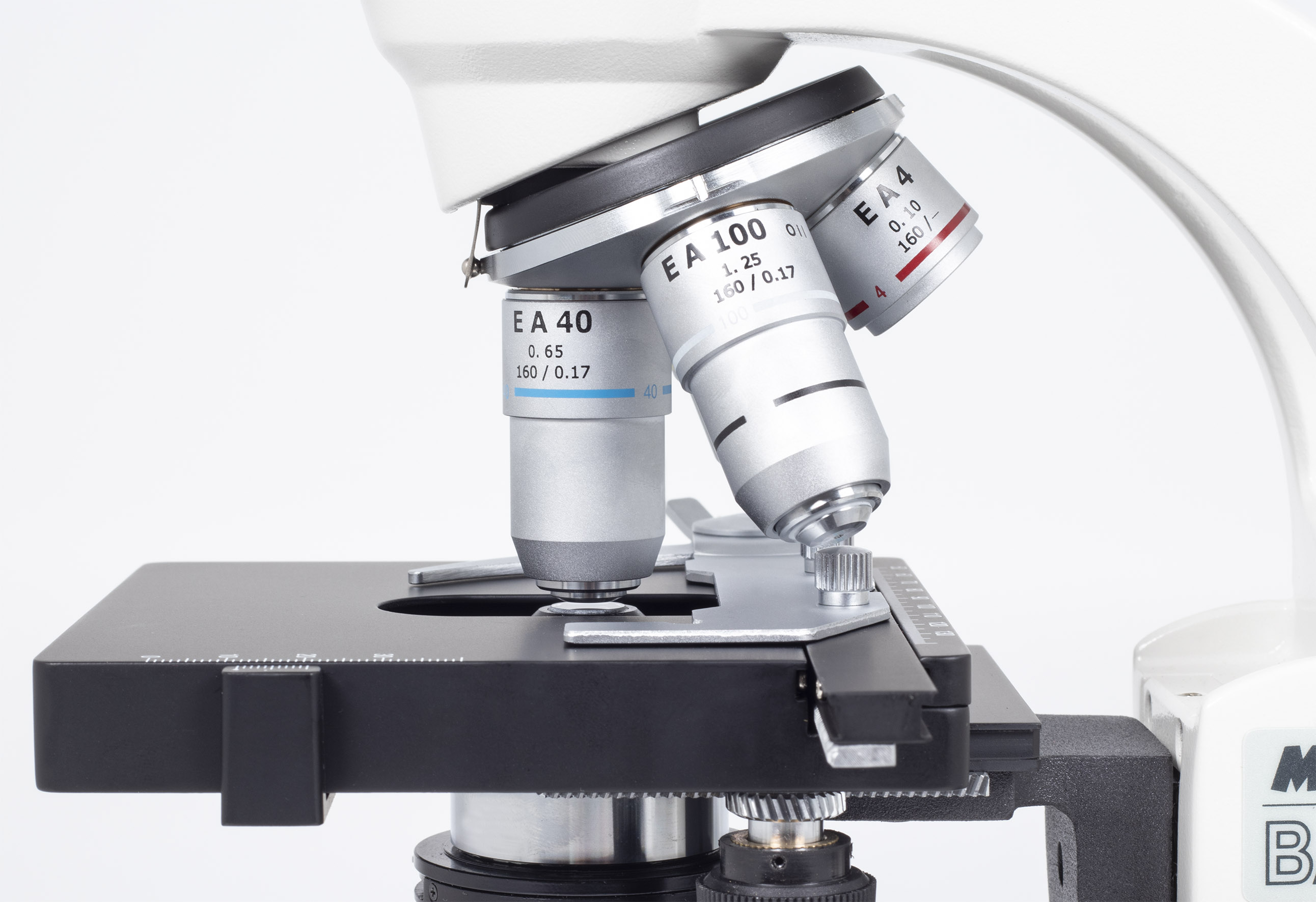

Objectives | 4X/0.10 (WD 27mm), 10X/0.25 (WD 5mm), 40X/0.65/S (WD 0.3mm), 100X/1.25/S-Oil (WD 0.06mm) |
Objective mounting thread | W 4/5"x1/36" (RMS standard) |
Stand type | Upright |

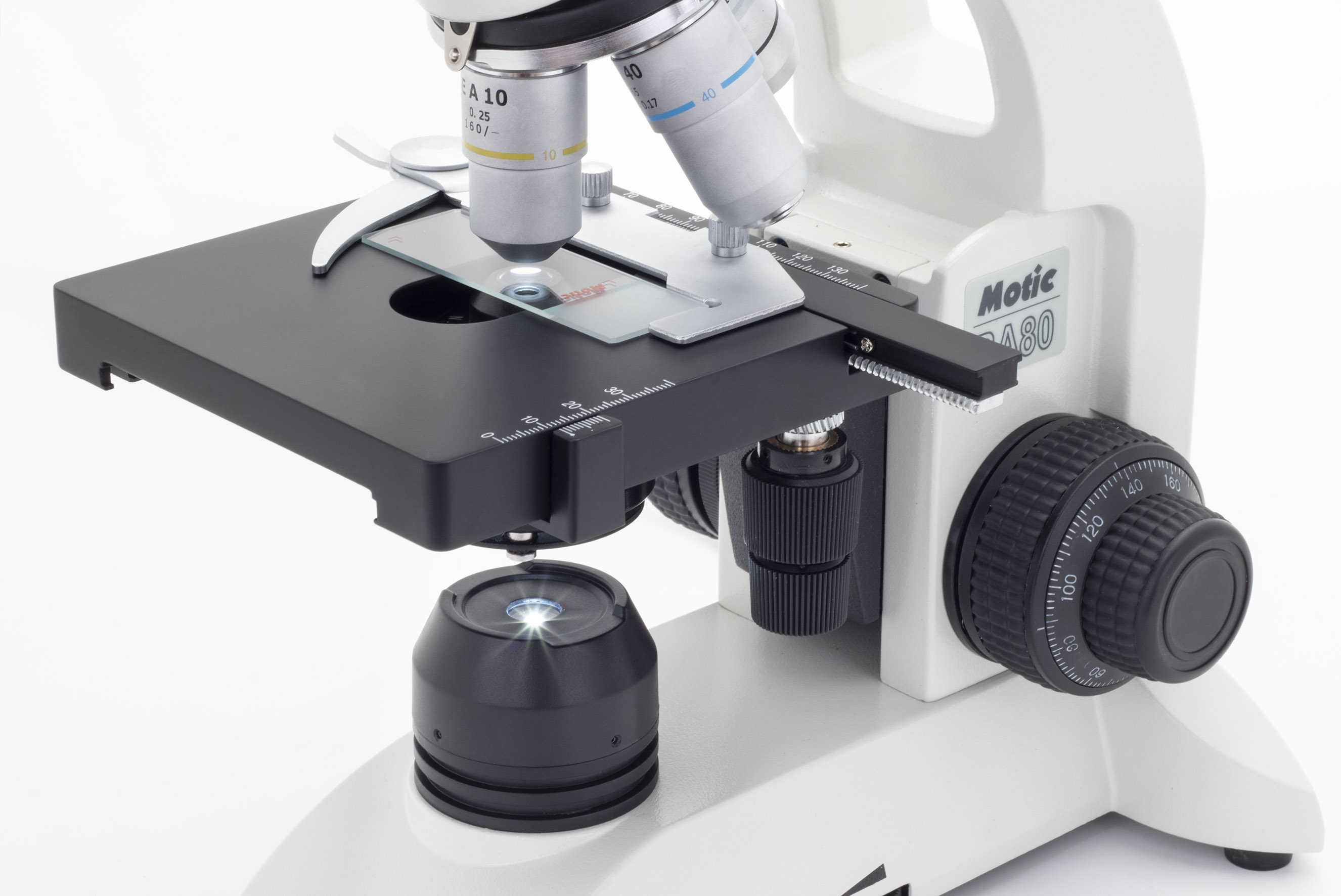

Stage | Mechanical stage with built-in low position coaxial stage control and sample holder |
Stage size | 120x120mm |
Travel range X&Y | 77x26mm |
Condenser | Spiral mounted Abbe condenser N.A. 1.25 |
Diaphragm | Iris diaphragm |
Focus mechanism | Coaxial coarse and fine focusing system |
Fine focus precision | 2µm |
Focusing stroke | 14mm |
Upper limit stop | Upper limit stop preset but adjustable |
Filter | Built-in frosted glass |
Transmitted illumination | LED 3.5V/70mW with intensity control |
Transformer | Internal |
Power supply | 220V (CE) |
Accessories included | Dust cover, immersion oil (5ml) |
Dimensions LxWxH | 180x220x344mm |
Weight Net | 4.6kg |
Contrast techniques | |
Standard contrast technique | Brightfield |
