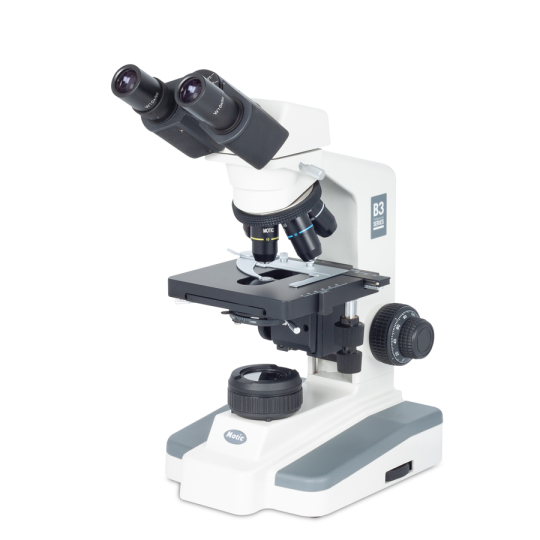

B3-220ASC
Binocular microscope for advanced work in biology and medicine. Sections, smears and other transparent samples are displayed by the ASC (Achromatic Super Contrast) objectives with FOV20. Registered doctors and students benefit from the 5-fold nosepiece with space for additional objectives and from a Full-Köhler setup, ready to start.
Product code
PB37511E01
799.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
| Model | B3-220ASC |
|---|---|
| Observation tube | Binocular head, Siedentopf type |
| Optical system | Finite optical system, 160mm |
| Inclination | 30º inclined, 360º rotating |
| Interpupillary distance | 55-75mm |
| Diopter adjustment | On left tube, +/- 5 diopter |
| Eyepieces | Widefield WF10X/20mm |
| Nosepiece | Reversed quintuple |
| Objective classification | ASC Achromatic Super Contrast, DIN |
| Objectives | 4X/0.10 (WD 17mm), 10X/0.25 (WD 6.4mm), 40X/0.65/S (WD 0.45mm), 100X/1.25/S-Oil (WD 0.14mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage with built-in low position coaxial stage control and sample holder |
| Stage size | 140x135mm |
| Travel range X&Y | 78x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 1.25 with filter holder |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm |
| Focusing stroke | 27mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator |
| Transmitted illumination | Köhler halogen 12V/20W with intensity control |
| Transformer | External |
| Power supply | 110-240V (CE) |
| Accessories included | Dust cover, power cord, blue, yellow and green filters Ø45, immersion oil (5ml) |
| Dimensions LxWxH | 245x190x380mm |
| Weight Net | 7kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Phase contrast | Optional plug-in/turret |
| Polarization | Optional add-on |
| Darkfield | Optional plug-in |
| Model | B3-220ASC |
|---|---|
| Observation tube | Binocular head, Siedentopf type |
| Optical system | Finite optical system, 160mm |
| Inclination | 30º inclined, 360º rotating |
| Interpupillary distance | 55-75mm |
| Diopter adjustment | On left tube, +/- 5 diopter |
| Eyepieces | Widefield WF10X/20mm |
| Nosepiece | Reversed quintuple |
| Objective classification | ASC Achromatic Super Contrast, DIN |
| Objectives | 4X/0.10 (WD 17mm), 10X/0.25 (WD 6.4mm), 40X/0.65/S (WD 0.45mm), 100X/1.25/S-Oil (WD 0.14mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage with built-in low position coaxial stage control and sample holder |
| Stage size | 140x135mm |
| Travel range X&Y | 78x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 1.25 with filter holder |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm |
| Focusing stroke | 27mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator |
| Transmitted illumination | Köhler halogen 12V/20W with intensity control |
| Transformer | External |
| Power supply | 110-240V (CE) |
| Accessories included | Dust cover, power cord, blue, yellow and green filters Ø45, immersion oil (5ml) |
| Dimensions LxWxH | 245x190x380mm |
| Weight Net | 7kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Phase contrast | Optional plug-in/turret |
| Polarization | Optional add-on |
| Darkfield | Optional plug-in |
>
