AE2000 Binocular

Binocular Inverted live cell microscope for routine microbiology. The pre-defined optical setup with LWD CCIS© Phase objectives is ready for the inspection of diverse native samples in cell culture flasks. Lab technicians benefit from the convincing Phase contrast concept, while the Fixed-Köhler illumination with interchangeable light source (HAL/LED) and Auto ON/OFF... View More
Product code
1100103800043
2,816.00€
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Prices shown are the Manufacturer’s Suggested Retail Prices (MSRP) and may vary depending on the country. Prices do not include VAT, nor shipping, installation, insurance or any other additional services or taxes. Please note that the optical configuration of this specific model may differ from the objectives shown in the images.
Specifications
Model AE2000 Binocular
Observation tube Binocular head, Siedentopf type, 360º swiveling
Optical system Colour Corrected Infinity Optical System (CCIS®)
Inclination 45º inclined
Interpupillary distance 48-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Nosepiece Left side facing quadruple
Objective classification CCIS® Plan Achromatic, DIN
Objectives 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), LWD 40X/0.50 (WD 3.0mm)
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Inverted
Stage Plain stage with metal and glass stage inserts
Stage size 200x239mm
Condenser ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 8mm
Free working distance Working distance without condenser 184mm
Transmitted illumination Quartz Halogen 6V/30W with intensity control
Illumination interchangeability Quartz halogen 6V/30W or LED 3W
Illumination features Auto on/off
Transformer External
Power supply 100-240V (CE)
Accessories included Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys
Dimensions LxWxH 556x218x496mm
Weight Net 12.2kg
Contrast techniques
Standard contrast technique Brightfield, phase contrast
Phase contrast Slider

Catalogues

  • Life Sciences - Catalogue File size: --
  • AE2000 - Catalogue File size: --
  • AE2000 - Diptych File size: --

Specification sheets

  • AE2000 Binocular - SpecSheet File size: --

Images

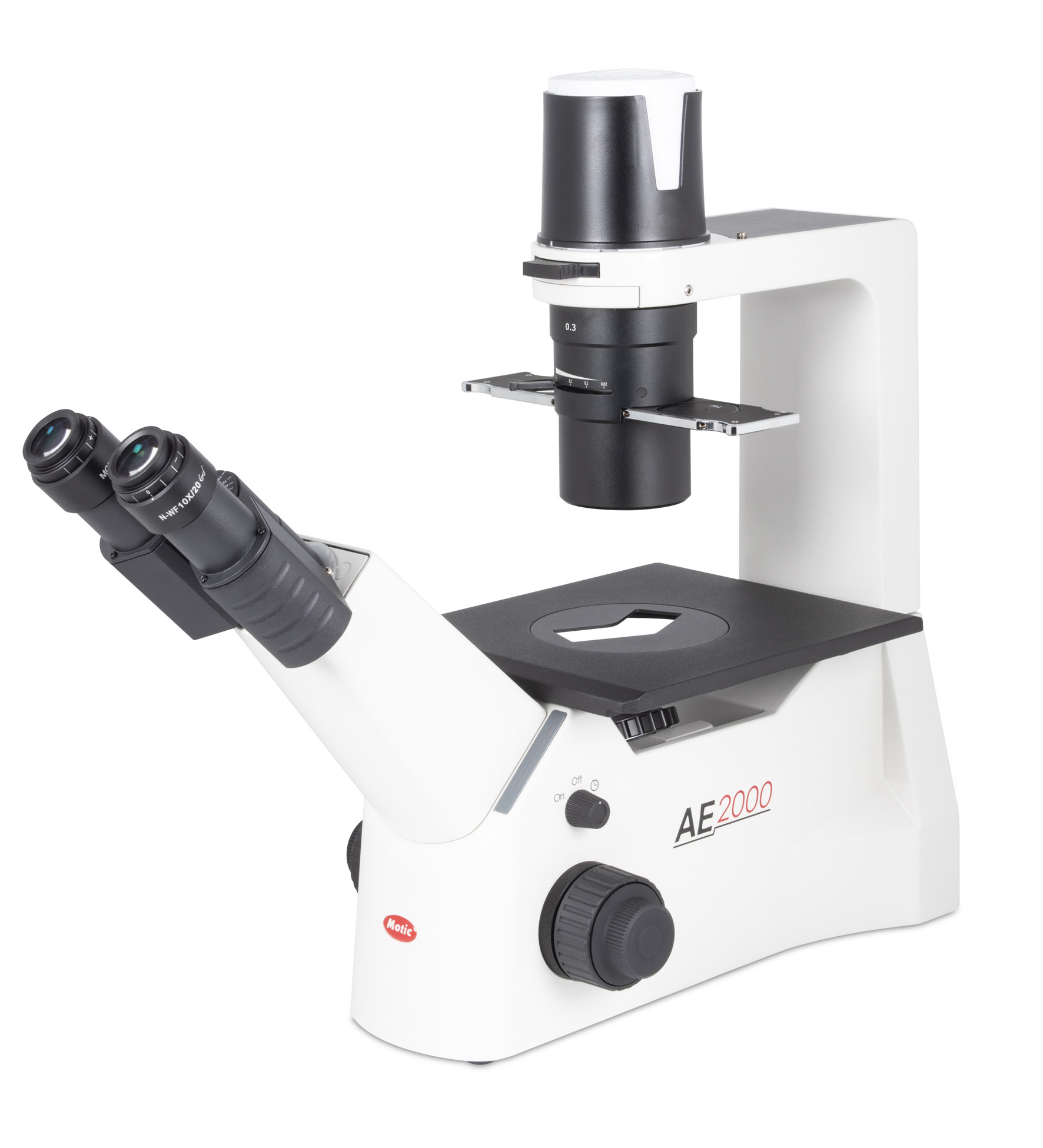

AE2000 Binocular - IMG
Download

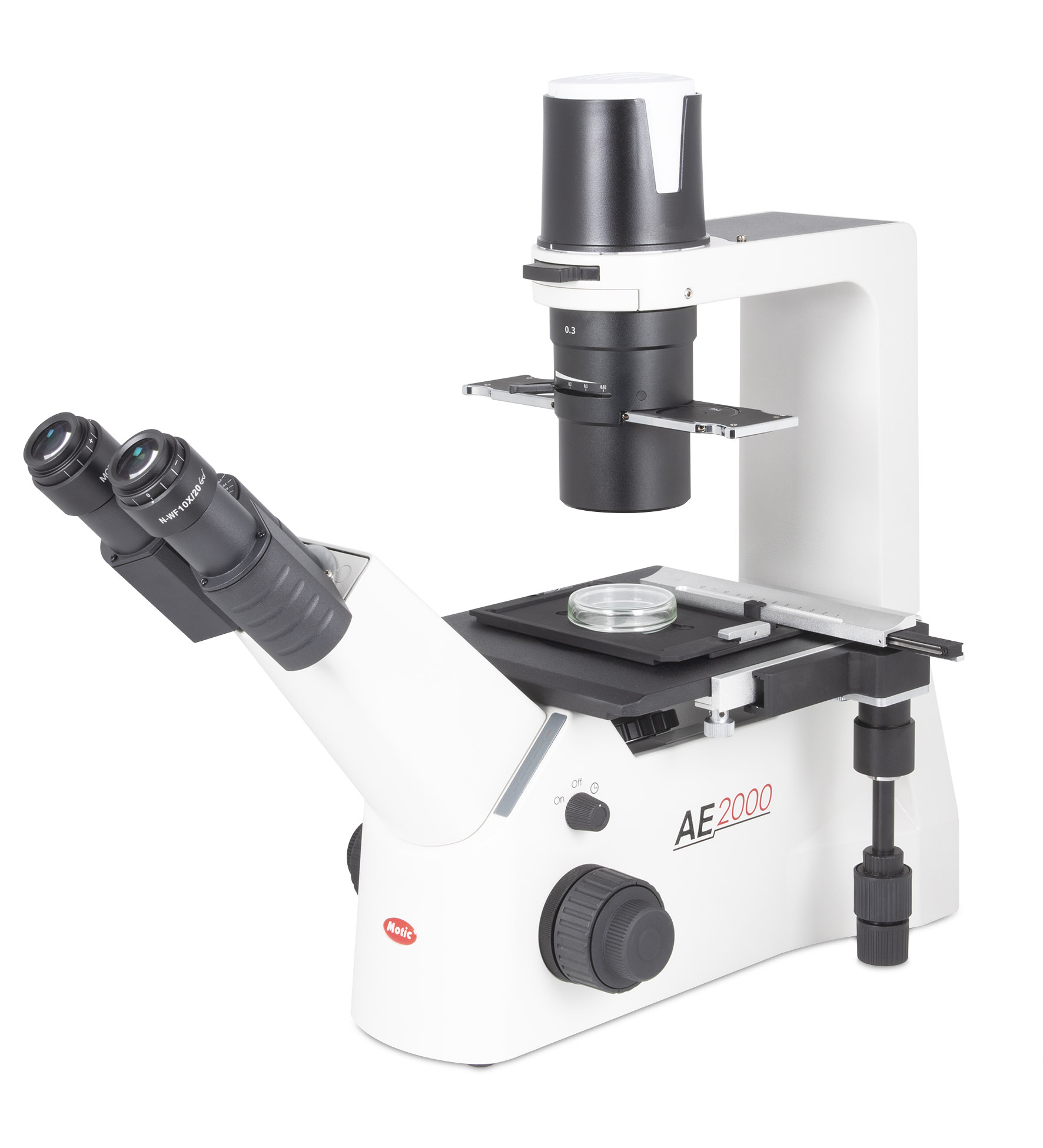

AE2000 Binocular - DETAIL1 - IMG
Download

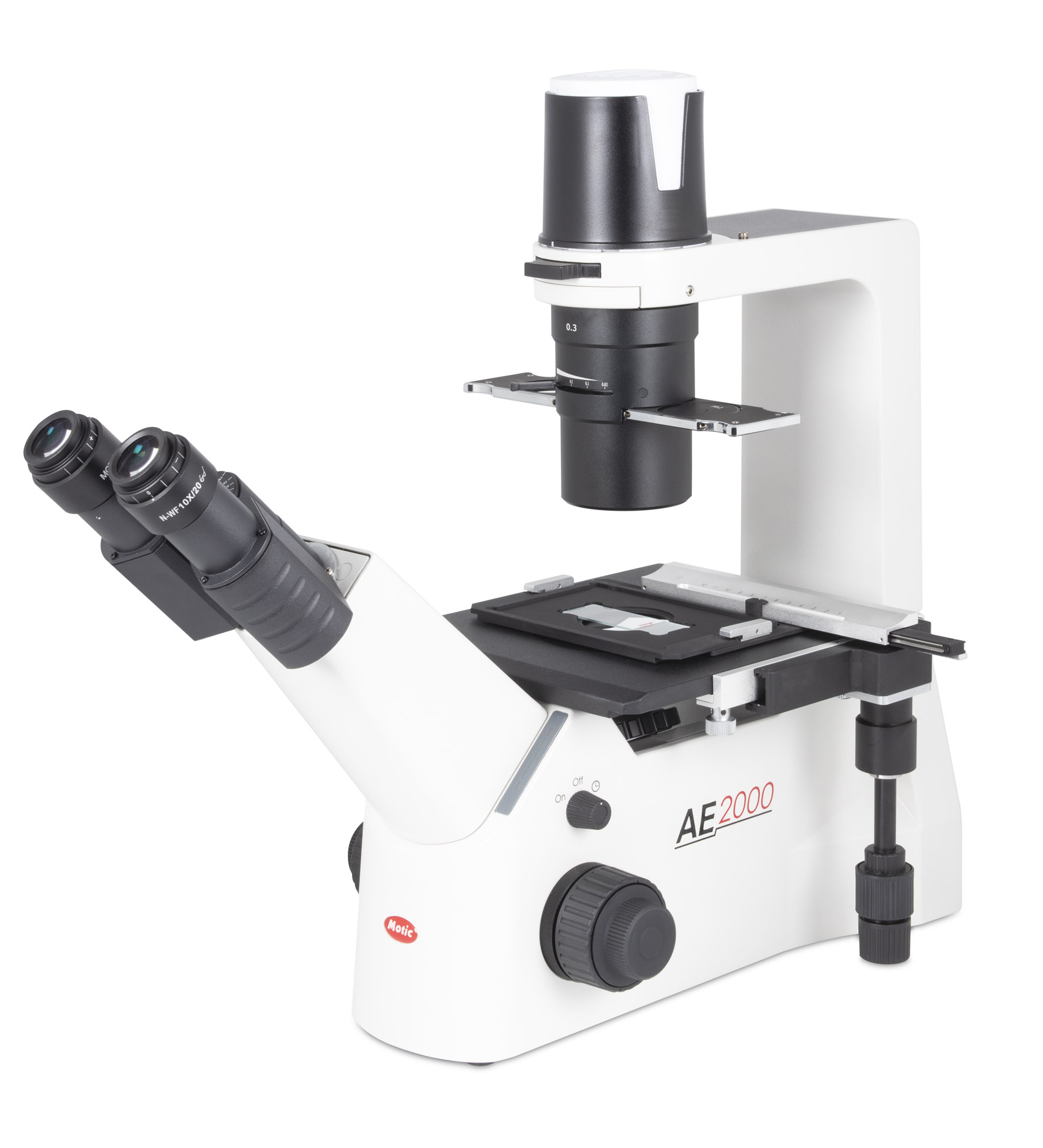

AE2000 Binocular - DETAIL2 - IMG
Download

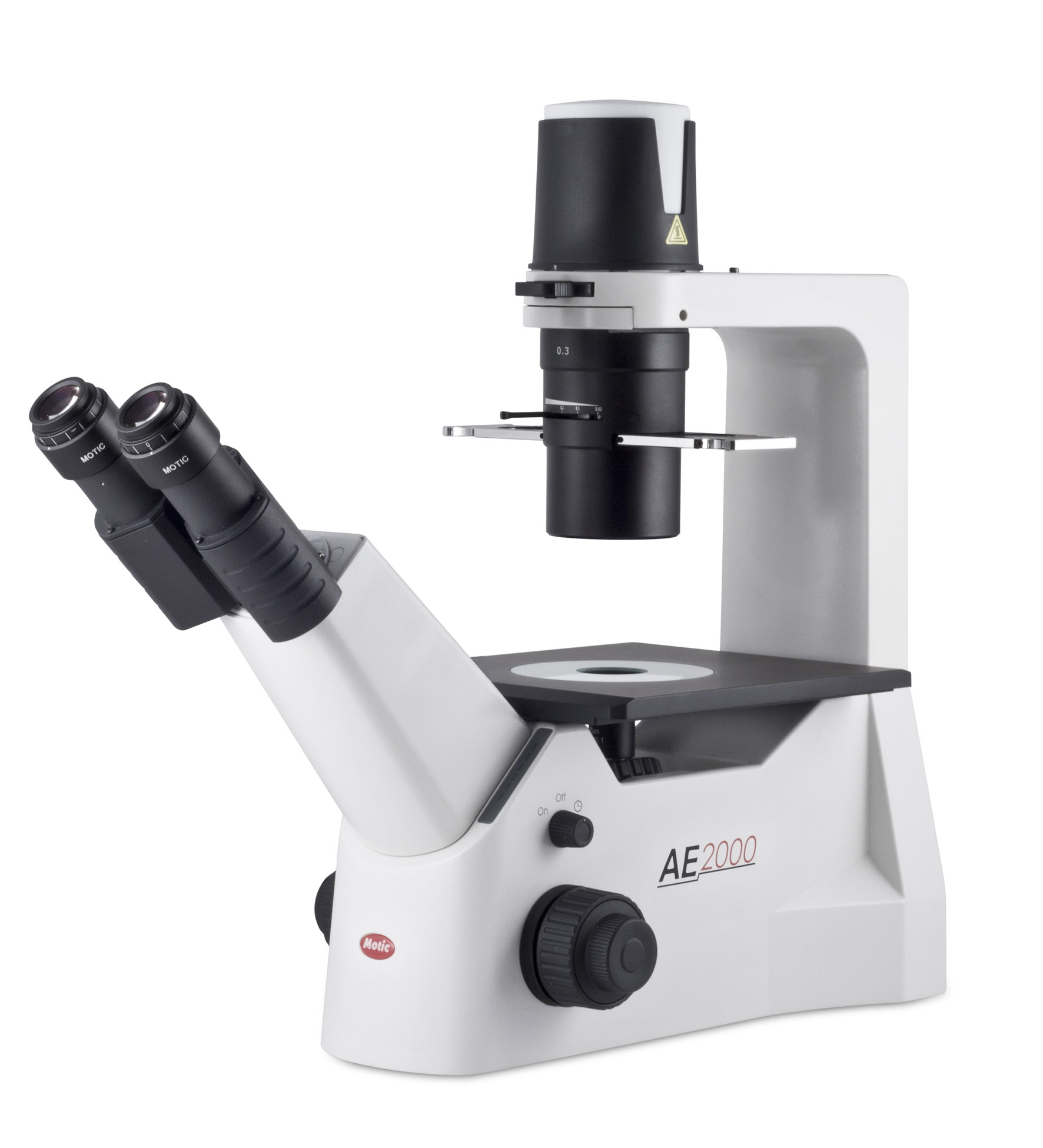

AE2000 Binocular - DETAIL3 - IMG
Download

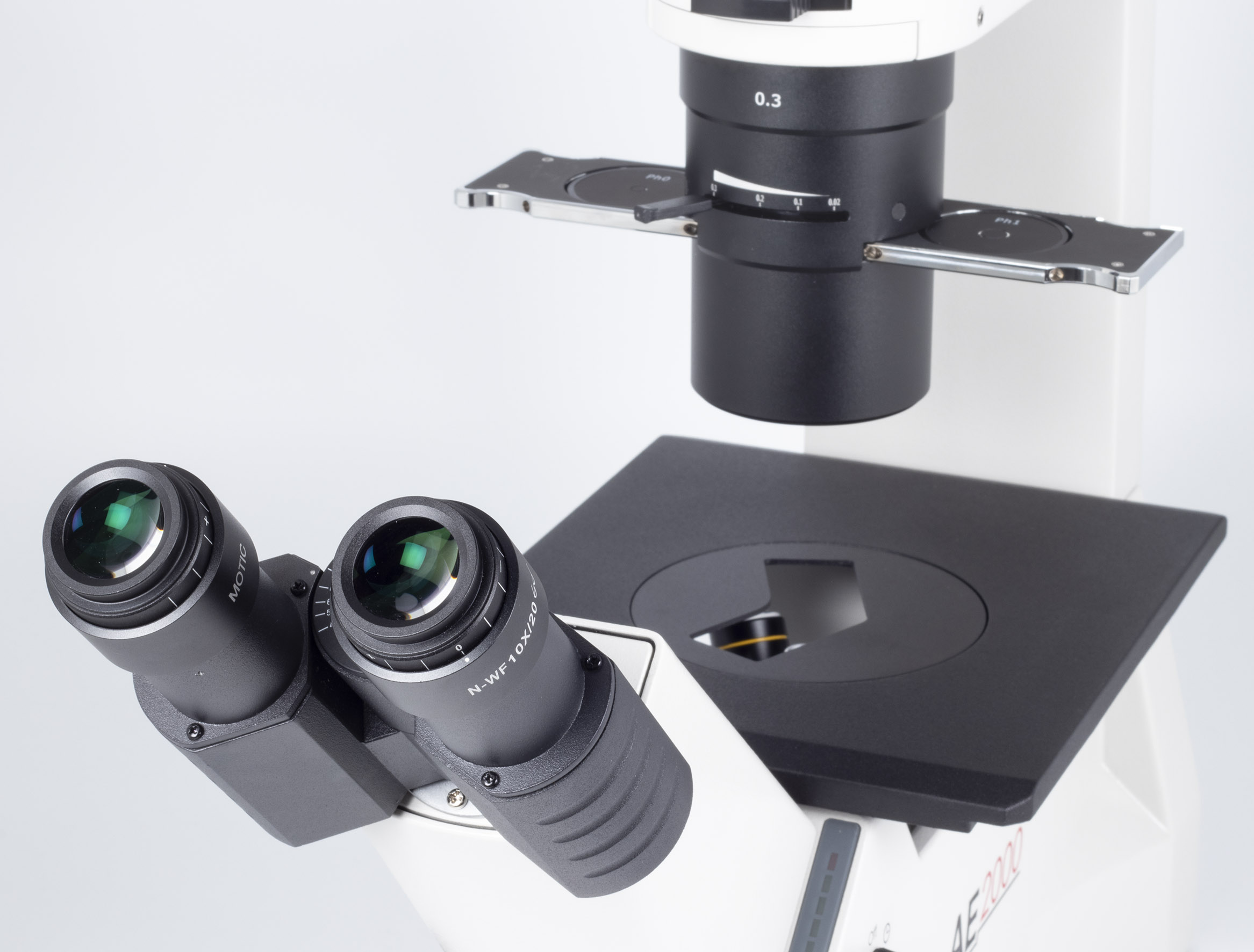

AE2000 Binocular - DETAIL4 - IMG
Download

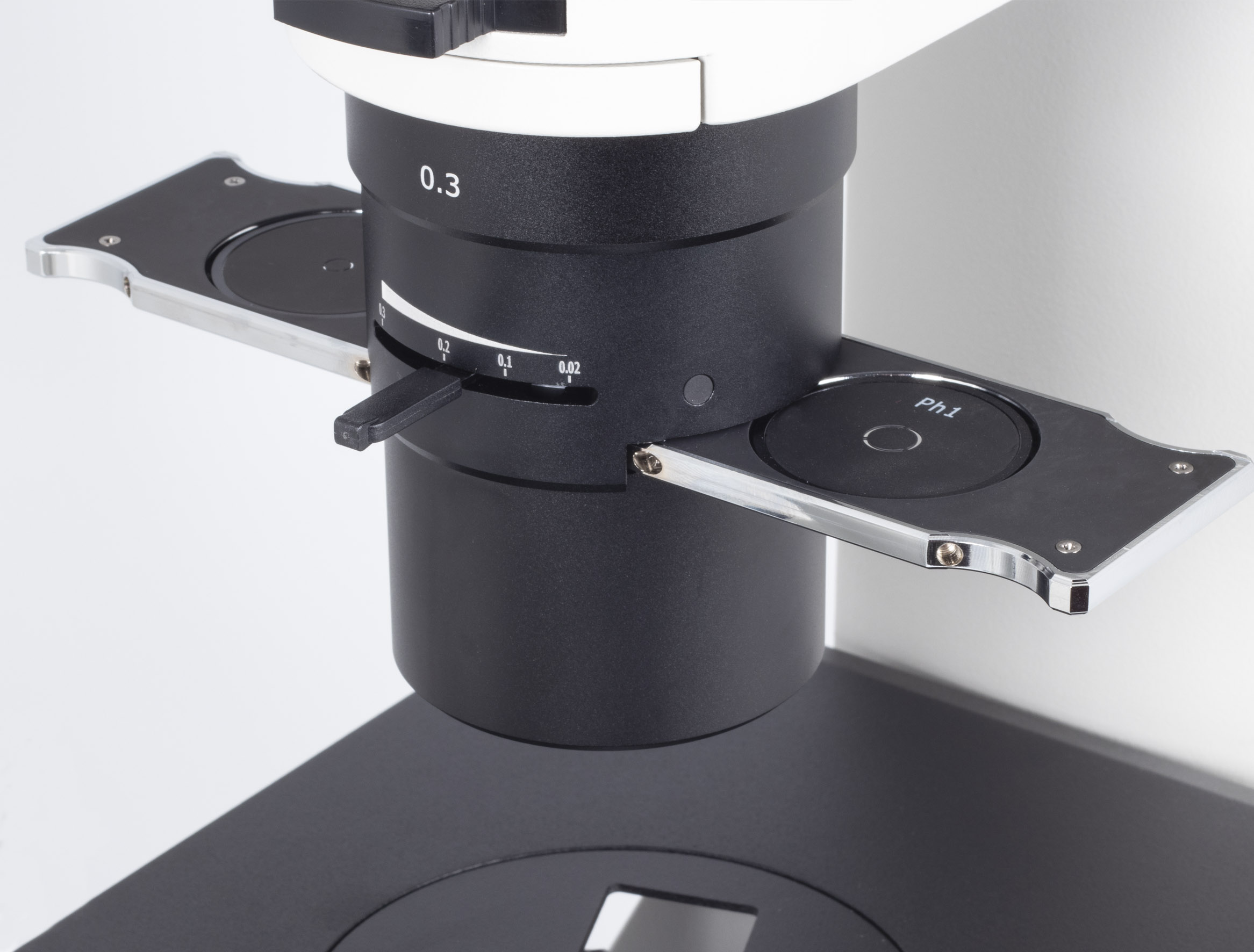

AE2000 Binocular - DETAIL5 - IMG
Download

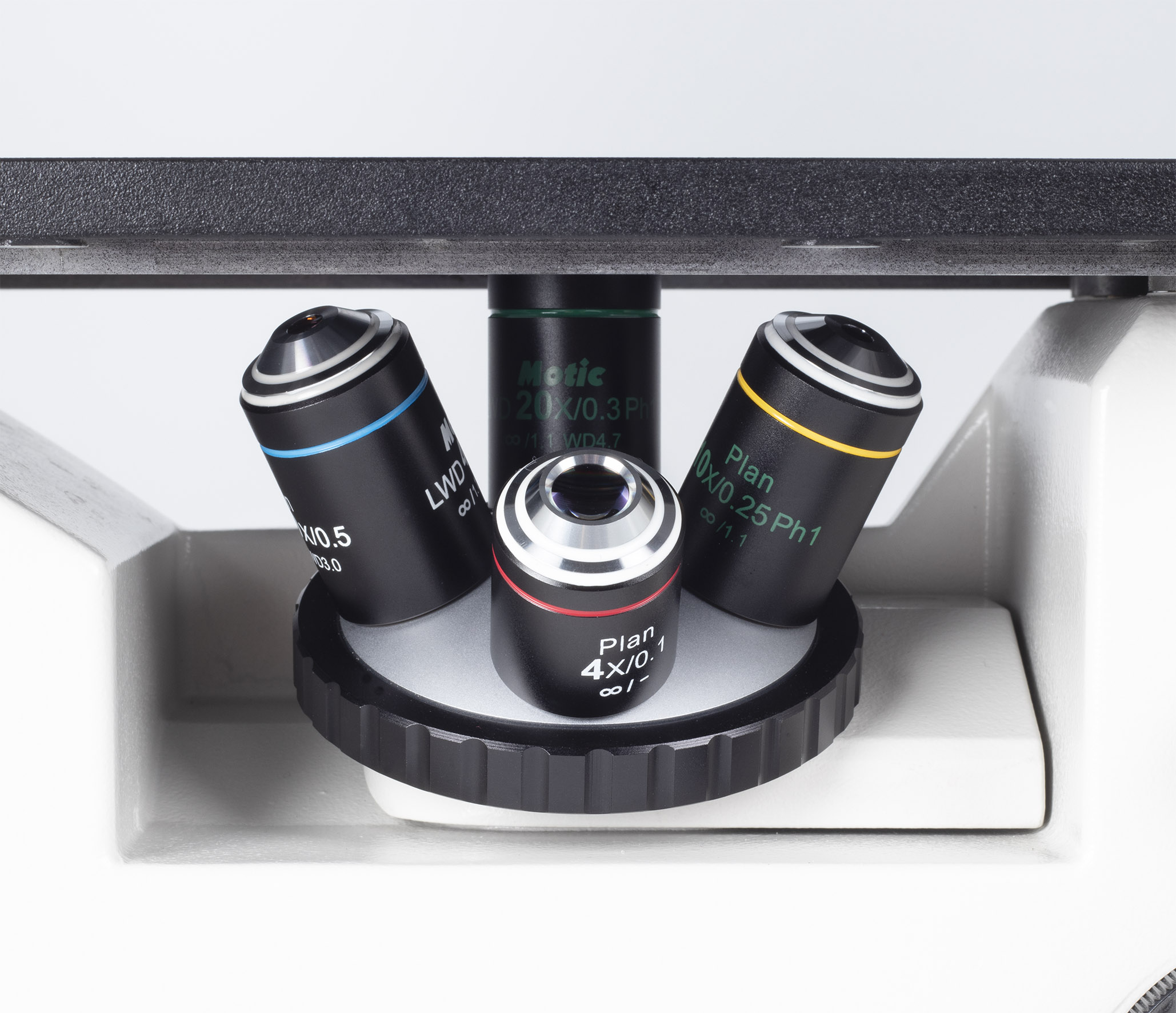

AE2000 Binocular - DETAIL6 - IMG
Download

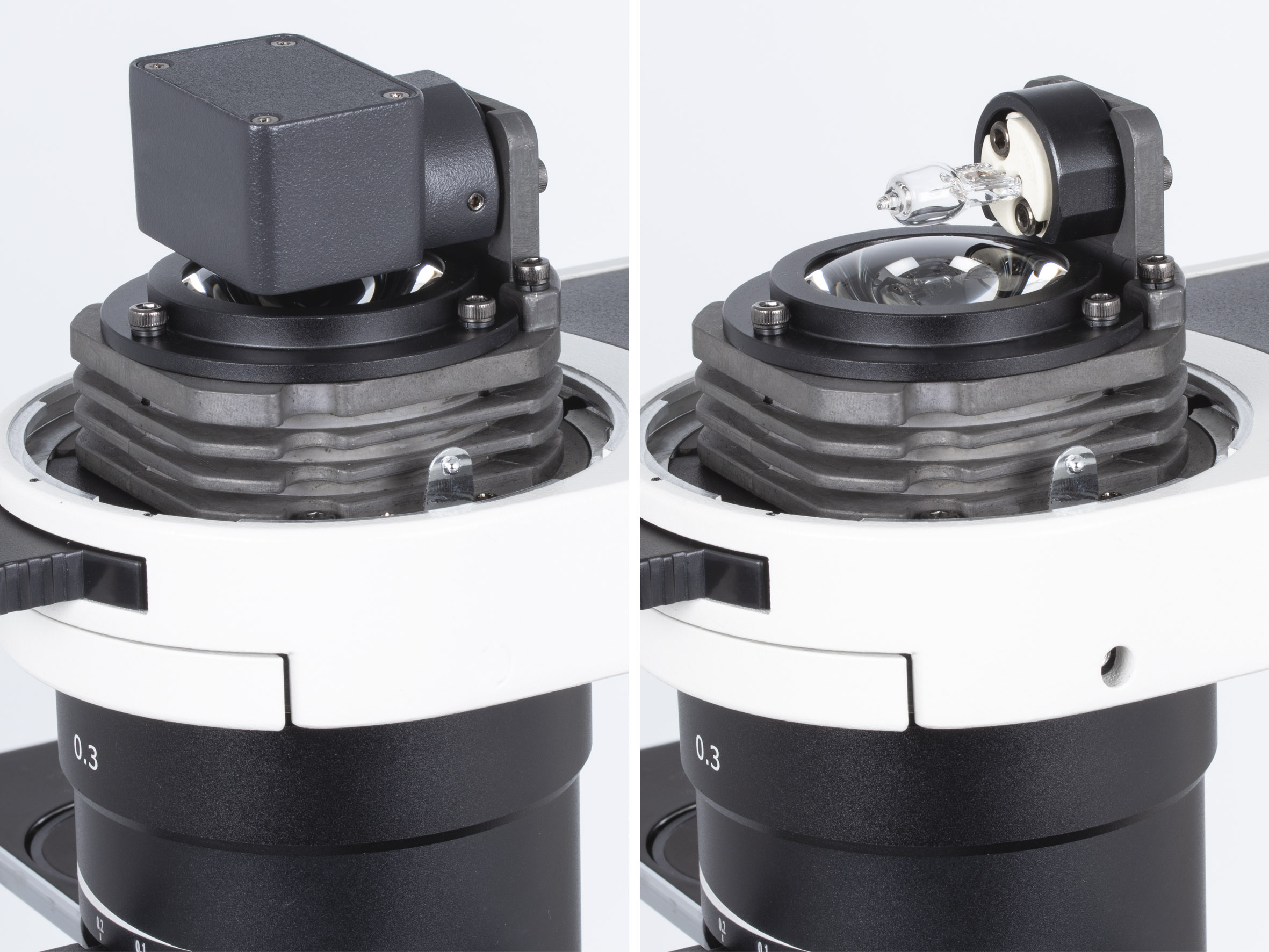

AE2000 Binocular - DETAIL7 - IMG
Download
AE2000 Series - IMG
Download

Instructions

  • AE2000 Series - User Manual File size: --

Guides

  • Quick inverted microscope setup - Guide File size: 823.75 KB
    Language: English
  • Basic microscopy concepts. Resolution and magnification - Guide File size: 410.11 KB
    Language: English
  • Basic microscopy concepts. Phase contrast adjustment - Guide File size: 462.97 KB
    Language: English
  • Safety recommendations. How to ensure a clean microscope -Guide File size: --

Contrast Methods - Phase Contrast on AE2000 & AE31E | by Motic Europe

Discover how to perform the Phase contrast method on our AE2000 & AE31E inverted microscopes. By our product specialist Dr. Hans-Jürgen Klemenz.

How to adjust the tension of the focusing system (ring). E.g. AE Series | by Motic Europe

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope. Valid for: BA Series / AE Series / RED200 Series / SWIFT200 Series / B1 ELITE Series / B3 Series / 28 Series / BA50&80 Series / RED130, 131 and 132 models / SWIFT130X and 132 models.
